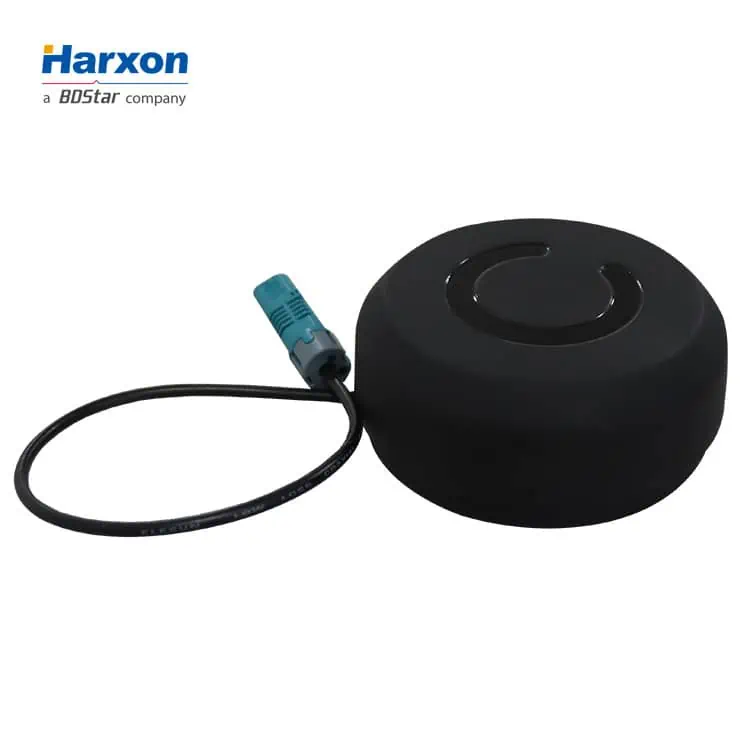

HX-AULD078 is a high-performance multiband automotive antenna designed for high dynamic applications. It offers superior satellite signal tracking, including GPS, BDS, GLONASS, Galileo, QZSS, IRNSS as well as L-Band correction service. With compact form factor, ruggedized housing, and flexible installations, this antenna greatly improves the positioning accuracy under challenging environmental conditions, such as continuous shock and vibration, ideal for agricultural tractors, autonomous vehicles and unmanned delivery vehicles.
RELIABLE AND CONSISTENT PERFORMANCEHX-AULD078 exhibits stable phase center variation, 33dB high-gain LNA with very low noise figure (≤2dB) and low axial ratio (≤3dB), wide beam width and low elevation satellite tracking ability for reliable GNSS signals and outstanding positioning accuracy.
CUSTOMIZABLE WITH WIDE APPLICABILITYHX-AULD078 is a precision-tuned antenna with comprehensive GNSS support and complete functions. It enables flexible variation designs based on the basic antenna structure, embedded antenna and housed antenna options are available for different applications. Also, the housing and the connector of the antenna are both customizable.
TRACK IN CHALLENGING ENVIRONMENTSThis antenna provides superior multipath rejection and axial ratio, a linear phase response, and tight phase center variation, while protecting against intermodulation and saturation caused by high-level signals, which guarantees stable GNSS signal tracking performance in unfavorable conditions.
COMPACT FORM FACTOR AND RUGGEDIZED HOUSINGHX-AULD078 is designed into low-profile and compact form factor to minimize damage from overhead objects and reduce wind resistance. Its ruggedized housing ensures long lifespan with IP67 protection while using in tough environments such as vibration, harsh weather and high speed travel. Both screws mount and magnet mount are supported for various applications.
KEY FEATURES- Comprehensive GNSS support: GPS, BDS, GLONASS, Galileo, QZSS, IRNSS and L-Band
- Flexible installations: screws mount and magnet mount
- Increased system accuracy and excellent multipath rejection
- Small size and light weight, low wind resistance design
