High Precision GNSS Antenna for Agricultural Vehicles, Small Robots and Surveying Applications

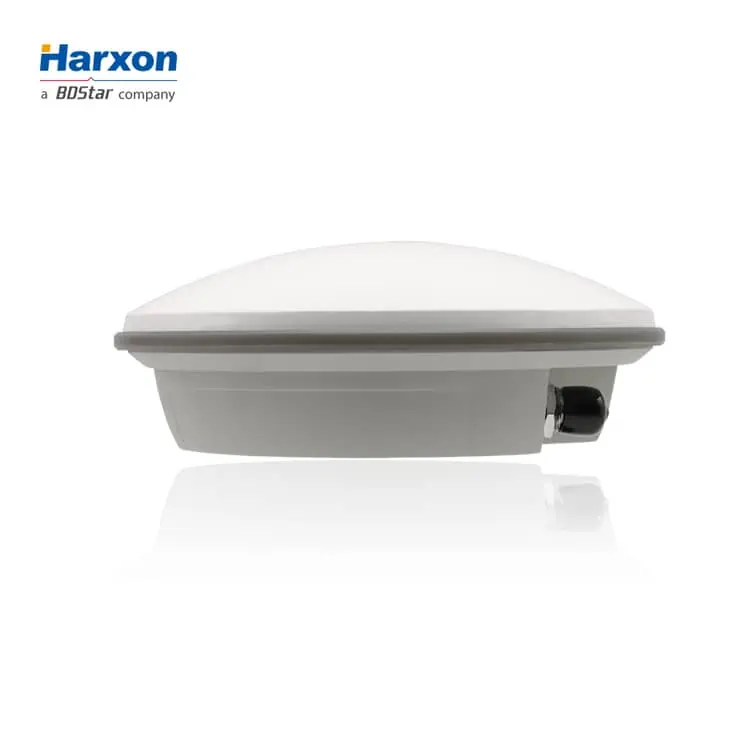

HX-CSX633A is a high performance survey GNSS antenna which offers superior satellite signal tracking, including BeiDou, GPS, GLONASS and GALILEO. It meets the requirements of high precision and multi-constellation compatibility. It enables easy and flexible installations (magnetic mount, screws mount and pole mount) for many high-precision applications.

HX-CSX633A is designed with brand new structure, enabling easy and flexible installations (magnetic mount, screws mount and pole mount) for many high-precision applications, including agricultural vehicles, small robots and surveying applications. It is built into a compact and ruggedized housing with IP67 rating to protect from dust, rain and sunlight, it can withstand a certain amount of shock and vibration, providing reliable performance even in harsh environments.

HX-CSX633A features a multi-point feeding deign to achieve greater phase center stability. It effectively improves measurement accuracy and provides better positioning solutions.

The ability to receive low elevation signals with high gain and wide beam width makes HX-CSX633A an excellent choice for tracking visible satellites in tough environments, providing the positioning solutions with precision and reliable data. It can be widely used in challenging conditions where high precision is needed, such as obstructed environments of forest or construction.

The antenna LNA features an excellent out-of-band rejection performance, which can suppress the electromagnetic interference, providing the stability and reliability of GNSS signals. Also, it effectively avoids disconnection danger when receivers are operated under complex electro magnetic environments such as communication base station applications or urban area.

• Support GPS, GLONASS, GALILEO, BDS, QZSS, IRNSS and SBAS signal reception
• Stable phase center guarantees the accuracy of positioning within millimeter-level
• Strong anti-interference ability to endure the challenging operating environments
• Ruggedized housing, flexible installation options, IP67 Rating waterproof
