Revolutionary GNSS Antenna with Strong Multipath Suppression

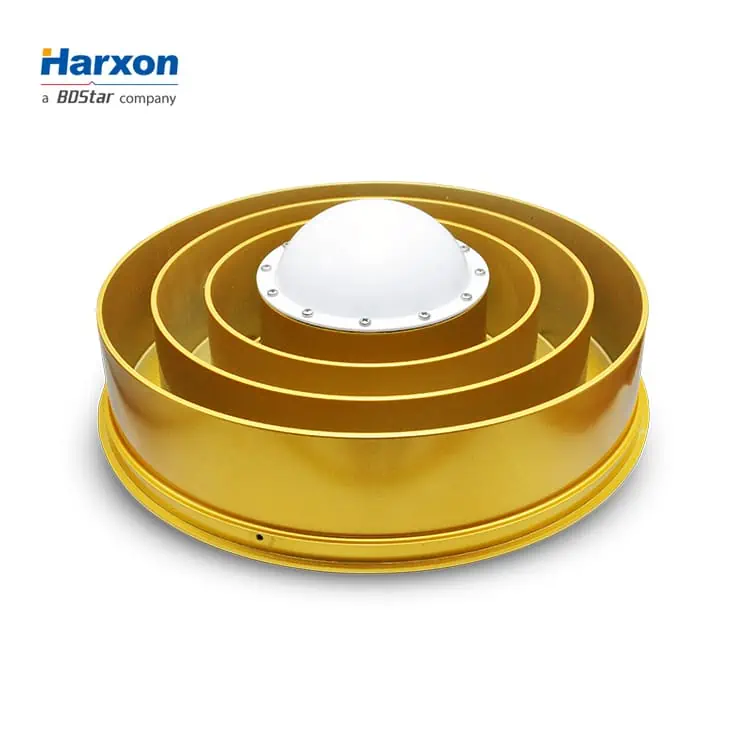

The unique 2D choke ring design of HX-CG7601A ensures an excellent multipath reduction performance across multiple GNSS frequency bands of GPS, BeiDou, GLONASS, GALILEO, QZSS, and SBAS. And the antenna features the Harxon patented multi-point feeding technology to achieve greater phase center stability and hence effectively improve measurement accuracy. It is ideal for applications of CORS stations, bridge and building deformation monitoring or geological monitoring due to its sub-millimeter phase center stability.

The strong ability to receive low elevation signals with high gain and wide beam width makes HX-CG7601A an excellent choice for tracking visible satellites and provide stable and precision GNSS data under complex environments, such as obstructed environment of tree lines or construction.

The antenna LNA features an excellent out-of-band rejection performance, which can suppress the EMI, providing the stability and reliability of GNSS signals. Also it effectively avoids disconnection dangerous when receivers are being interfered by wireless communication systems, for example power grid, communication base station or radio modem applications.

The HX-CG7601A cover is made of Glass Fiber Reinforced Polymer(GFRP) material and is structurally strong and reliable. The enclosure of this newly designed choke ring antenna employs mutiple protections design to be comfort to IP67 standard, which withstands exposure against dust, rain, splash or sunlight. This reliable and ruggedized design ensures long-term proper operation of the choke ring antenna even under harsh environments as high low temperature, high humidity and salt fog.

• Support GPS, Glonass, Galileo, Beidou, QZSS, and SBAS signal reception
• Stable phase center guarantees the accuracy of positioning within sub-millimeter level
• Strong anti-interference ability to endure the challenging operating environments
• IP67 reliable and ruggedized cover protection
