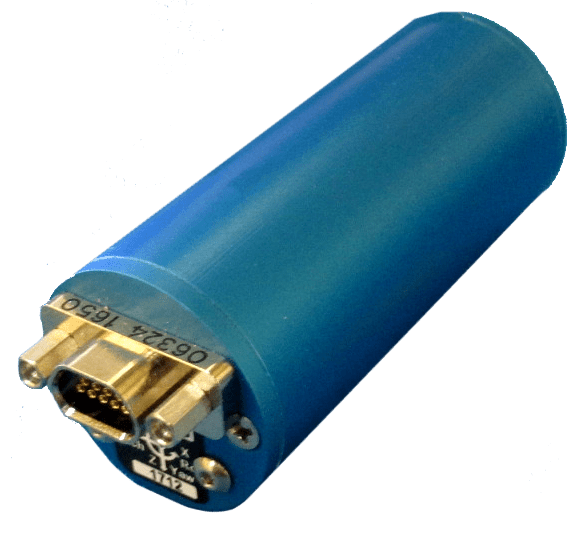

DIGS™100 Inertial Guidance System
The DIGS™100 Inertial Guidance System is an AHRS designed for downhole applications such as orientation and directional guidance for utility and vertical well drilling. This small and rugged MEMS AHRS provides internally temperature compensated RS422/RS485 output of pitch, roll and yaw angles; and is tested to and meets IP68.
With a small size and high-performance, low noise gyros and accelerometers, it is ideal for environments with tight drilling space constraints.
Size (DxL): 1" x 2.28"
Weight: 43 grams
In-Run Bias: 5°/hr
Gyro Noise: 0.003°/sec/√Hz
Accel Noise: 0.1mg/√Hz
