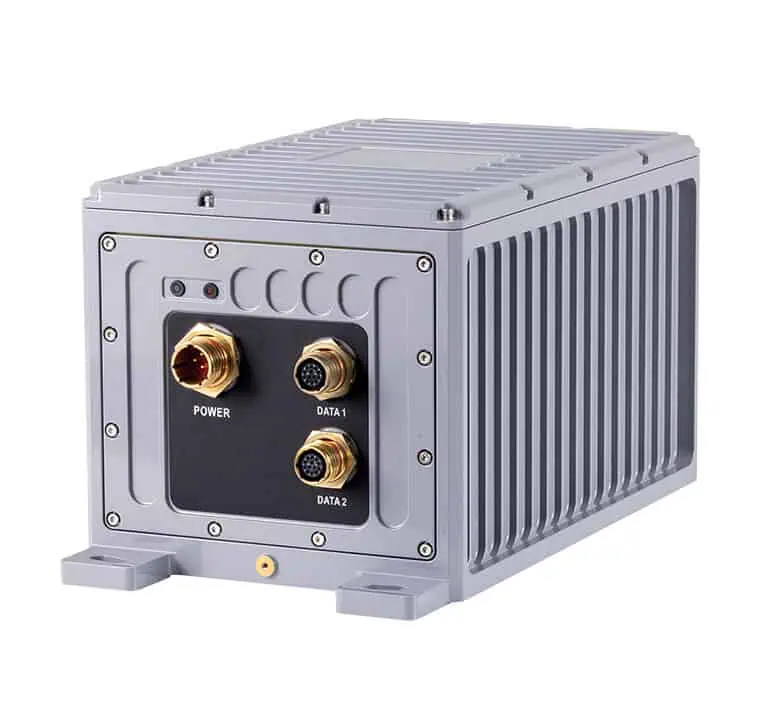

FN 210G INS
Fiberpro's FN 210G is a high-performance inertial navigation system designed for gyrocompassing applications, providing accurate heading, attitude and positional data for uncrewed surface vessels. Incorporating three axes of fiber optic gyros and three axes of quartz servo accelerometers, it features solid-state fully electronic strap-down technology in a compact and lightweight enclosure.
The unit provides inputs for GNSS antenna and EM log, and outputs data via RS-422.
Specifications:
| Dimensions (L x W x H): | 330 x 192 x 180 mm |
| Weight: | <15 kg |
| Power Consumption: | <15W typ. |
| Heading Accuracy: | <0.1° x sec (LAT) |
| Position Accuracy: |
INS/GPS: <3 m INS/EM-Log: <0.2% DT |
| Attitude Accuracy: | Static/dynamic: 0.01o |
