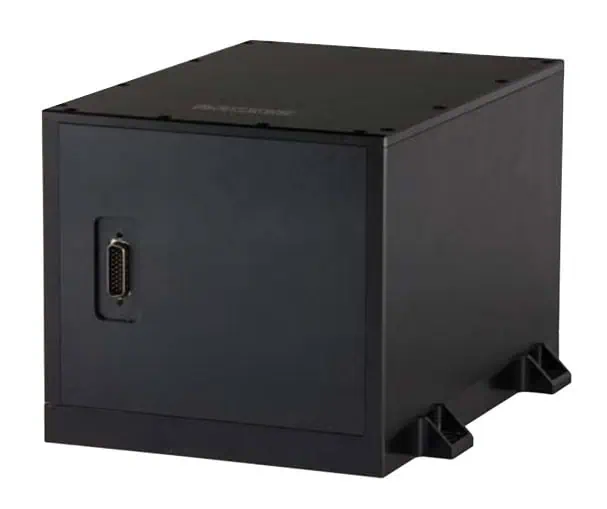

FI 210 Inertial Measurement Unit
Fiberpro's FI 210 is a navigation-grade Inertial Measurement Unit (IMU) that is ideal for high-performance UAV and unmanned systems requirements. It integrates three fiber optic gyros with three high-accuracy accelerometers, and offers excellent stability and low power consumption.
The rugged IMU is housed in an environmentally-sealed enclosure, and offers integration options for UART and SDLC.
Specifications:
| Dimensions (L x W x H) | 260 x 218 x 168 mm |
| Weight | 10 kg |
| Power Consumption | 6W |
| Gyro Bias Repeatability | <0.01 deg/hr typ. |
| Gyro Scale Factor Accuracy | < 100 ppm |
| Gyro ARW | <0.002 deg/√hr |
| Accelerometer Bias Repeatability | <100 μg |
| Accelerometer Scale Factor Accuracy | <100 ppm |
| Acceleration Range | ±40g |
