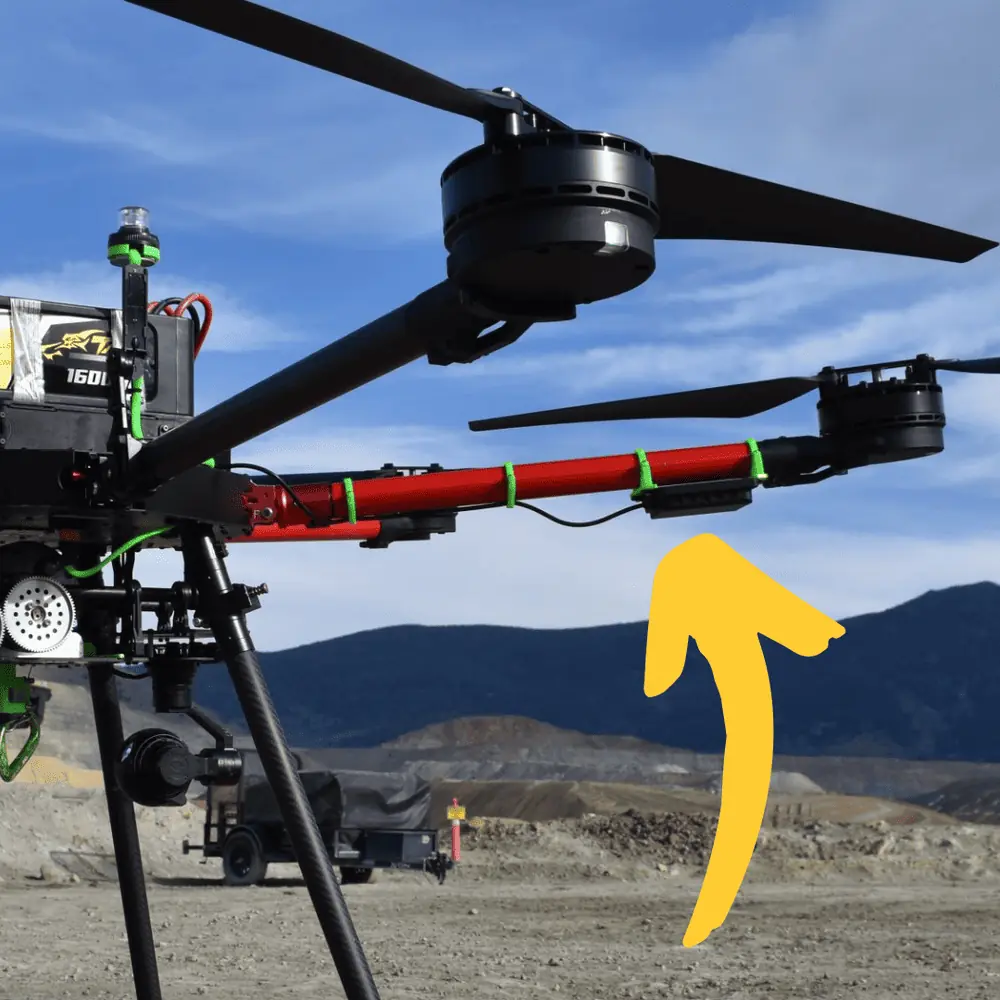

US-D1 Radar Altimeter
The US-D1 is a lightweight and compact radar altimeter that is ideal for a wide range of drone platforms, featuring easy plug-and-play operation with no calibration required. It provides reliable altitude measurements at distances of up to 50 metres, ensuring robust operation during the day or at night and under all weather conditions.
The IP67-sealed device is compatible with Ardupilot and PX4/Pixhawk, and is ideal for applications such as cargo delivery, agricultural spraying and low-altitude surveying and landing.
Specifications:
| Dimensions | 108 x 79 x 20 mm |
| Weight | 110 g |
| Power | 2W @ 5VDC |
| Update Rate | 100 Hz |
| Field of View | 43 ° x 30 ° |
| Altitude Precision | 6.0cm (< 1m), 4.0cm (> 1m) |
| Operating Altitude Range | 0.5 – 50 m |
| Frequency Band | 24 GHz |
| Bandwidth | 190 MHz |
