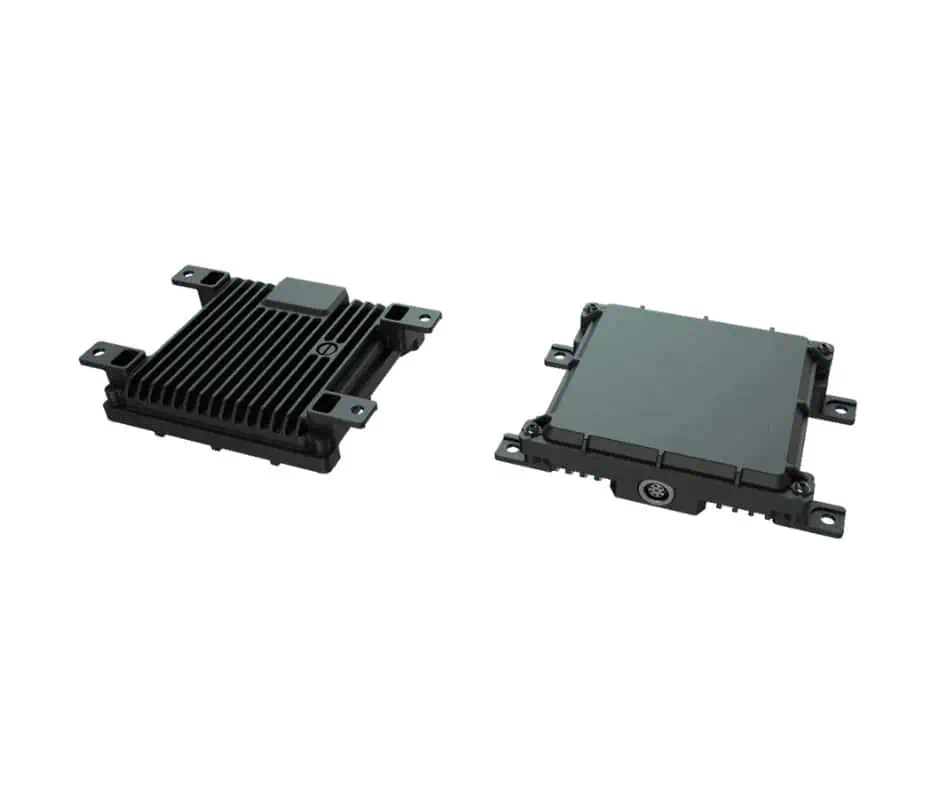

LR-D1 Radar Altimeter
The LR-D1 is a long-range radar altimeter that delivers high-accuracy data even in low visibility and the most challenging of weather conditions. Featuring a rugged enclosure, it delivers precise performance at distances of up to 500 metres.
The heavy-duty altimeter is designed for high-speed and large UAVs including those weighing over 85 kg, and is ideal for autonomous takeoff and landing requirements as well as industrial and tactical applications including cargo delivery, geophysical surveying, and ISR.
Specifications:
| Dimensions | 112 x 102.5 x 29 mm |
| Weight | 300 g |
| Power | 11W |
| Update Rate | 40 Hz |
| Field of View | 43 ° x 30 ° |
| Altitude Precision | 0.365 m |
| Operating Altitude Range | 0.7 – 500 m |
| Frequency Band | 24 GHz |
| Bandwidth | 250 MHz |
