Trek-60 Rugged modular AI platform for video surveillance

Rugged modular AI platform for video surveillance

Visit Website Contact

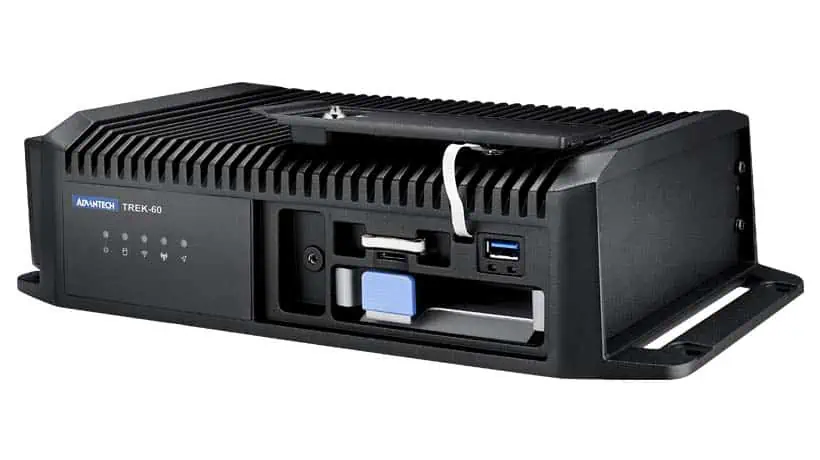

The TREK-60 is a modular computing platform that is ideal for applications such as autonomous vehicles and ADAS. Featuring a powerful AI accelerator, it can undertake video surveillance and inferencing and supports up to eight PoE cameras. The versatile system provides a variety of I/O options and can be extended to take advantage of RF communications including WLAN, Bluetooth, WWAN and GNSS.

The rugged unit is IP65-rated and conforms to MIL-STD-810G specifications for shock and vibration. It is equipped with intelligent vehicle power management as well as Advantech’s DeviceOn/iService device management solution based on the WISE-DeviceOn platform.

Dimensions 314 x 165.5 x 75.1 mm
Weight 4.2 kg
Power 12/24V
CPU Intel Atom X5-E3940 or Core i7/i5
Memory Up to 8GB DDR3L
Operating Temperature Range -30- 70 °C (Atom X5-E3940), -20 - 50 °C (Core i7/i5)
Expansion 1 x full-size mini PCIe (PCIe/USB 2.0) for edge AI; supports up to 2 x Intel Movidius Myriad X VPUs
I/O 1 x ignition and power input
1 x J1708 (supports J1587)
2 x CAN bus
2 x 4-wire RS-232 (default)/RS-485
2 x 2-wire RS-232
6 x isolated DI (dry/wet), 4 x isolated DO
2 x line-out, 2 x mic-in
1 x USB 3.0 Type A (front accessible with key-lock protection)
2 x USB 2.0 Type A
2 x Giga LAN (with optional locking mechanism, or M12 connector)
1 x HDMI 1.3
1 x Smart Display Port 2.0
