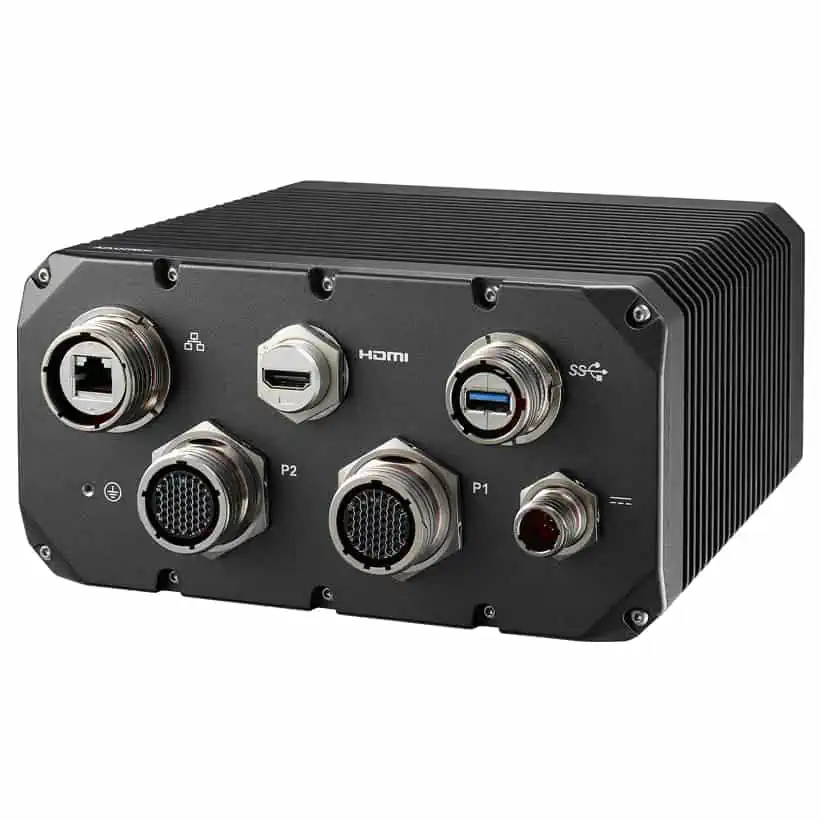

SOM-DK7600S
The SOM-DK7600S is a development kit for COM Express Mini Type 10 modules, compliant with the VITA 75.0 standard. The IP67-rated system features a variety of I/O and expansion options, and can be supplied with optional military-grade I/O and power modules.
The MIL-STD-810G, 461 and IPC-A-610G compliant module features wide operating temperature range and power input range, and includes an easily-replaceable CMOS battery.
Specifications:
| Dimensions |
203 x 184 x 101 mm 8.0 x 7.2 x 4.0 mm |
| Weight | 8.1 kg (system only) |
| Power | 12-40V, max 200W |
| Operating Temperature Range |
0 - 60°C standard -40 - 71°C extended |
| Memory | Onboard DDR3L 8G, eMMC 32GB |
| Expansion |
2x mini-PCIe/ Acropack slots (PCIe & USB 2.0 support) 1x M.2 key-B 2242/ 2280 slot |
| I/O |
I/O 55 pins with MIL-DTL-38999 circular type (A key) I/O 55 pins with MIL-DTL-38999 circular type (N key) 2x USB 2.0 2x RS232 4x GPIO 1x I2C 1x SMbus 1x Audio (stereo in & out) RJ-45 with MIL-DTL-38999 circular type 1x Ethernet port (10/100/1000) USB 3.0 with MIL-DTL-38999 circular type 1x USB 3.0 port (USB 2.0 & USB 3.0) HDMI with Industrial circular type 1x HDMI port |
