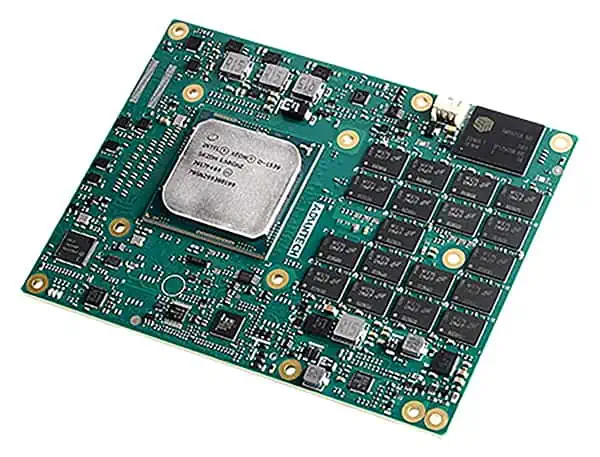

SOM-9590
The SOM-9590 is a COM Express Basic Type 7 module featuring Intel Xeon D CPU options and supporting up to 32GB of solder-down DD4 memory and 16GB of solder-down SSD storage.
The module features 24 PCIe Gen3 lanes, and supports iManager configuration and WISE-DeviceOn remote management.
Specifications:
| Dimensions | 125 x 95 mm |
| Power | Vin: 8.5-20V VSB: 5V RTC Battery: 2.0-3.3V 46.6W max, 12.8W idle |
| Operating Temperature Range | 0 - 60°C standard -40 – 85°C extended |
| CPU | Intel Xeon D-1539 |
| Memory | Up to 32GB DDR4 |
| Expansion | 1 PCIe x16 Gen.3 1 PCIe x8 Gen.3 7 Ports PCIe x1 Gen.2 |
| I/O | 1x SMBus 1x I2C Bus Gigabit Ethernet 10M/100M/1000M 2x SATA3.0 4x USB 3.0 4x USB 2.0 1x SPI Bus 8-bit GPIO 2x 2-wire COM ports |
