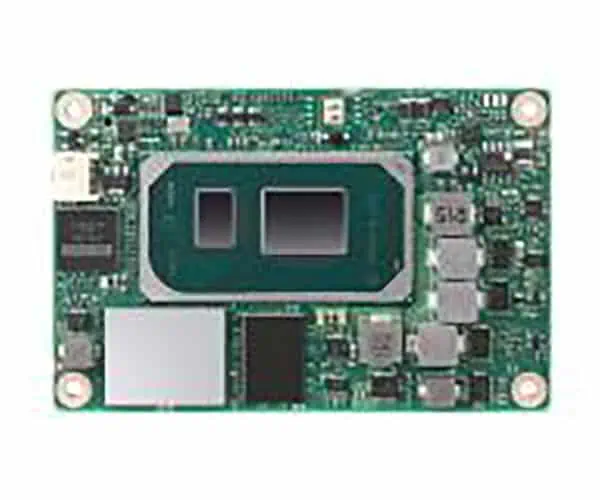

SOM-7583
The SOM-7583 is a COM Express Mini Type 10 module featuring Intel 11th Gen CPU options and integrated Intel graphics. It supports up to 16GB of DD4 memory and 32 or 64GB of NVMe SSD storage.
The module features 4 PCIe Gen3 lanes, and supports iManager configuration, WISE-DeviceOn remote management and Advantech's Edge AI suite.
Specifications:
| Dimensions | 84 x 55 mm |
| Power | Vin: 8.5-20V VSB: 5V RTC Battery: 2.0-3.3V |
| Operating Temperature Range | 0 - 60°C standard -40 – 85°C extended |
| CPU | Intel 11th Gen Core U-Series |
| Memory | Onboard 16GB/8GB Up to 16GB DDR4 |
| Expansion | 1 PCIe Gen3x4 |
| I/O | 1x SMBus 1x I2C Bus Gigabit Ethernet 10M/100M/1000M/2.5Gbps 2x SATA3.0 2x USB 3.2 Gen1 8x USB 2.0 1x SPI Bus 8-bit GPIO 2x 2-wire COM ports VGA 1x DDI port 1x Type C display port |
