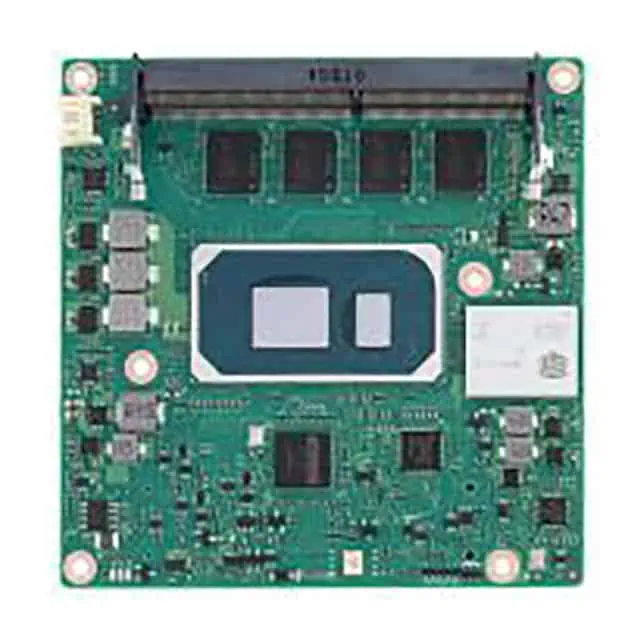

SOM-6883
The SOM-6883 is a COM Express Compact Type 6 module featuring Intel 11th Gen CPU options and supporting up to 32GB of SO-DIMM memory or 16GB of DD4 memory.
The module features 4 PCIe Gen4 lanes and 5 PCIe Gen3 lanes, and supports WISE-DeviceOn remote management and Advantech's Edge AI suite.
Specifications:
| Dimensions | 95 x 95 mm |
| Power |
Vin: 8.5-20V VSB: 5V RTC Battery: 2.0-3.3V 84.22W @ 12V max 34.5W @ 12V idle |
| Operating Temperature Range |
0 - 60°C standard -40 – 85°C extended |
| CPU | Intel 11th Gen Core U-Series |
| Memory |
Onboard 16GB/8GB Up to 32GB in one SODIMM socket |
| Expansion |
1 PCIe Gen4x4 5 PCIe Gen3x1 |
| I/O |
1x SMBus 1x I2C Bus Gigabit Ethernet 10M/100M/1000M/2.5Gbps 2x SATA3.0 4x USB 3.2 Gen1 8x USB 2.0 1x SPI Bus 8-bit GPIO 2x 2-wire COM ports VGA LVDS dual channel 3x DDI ports |
