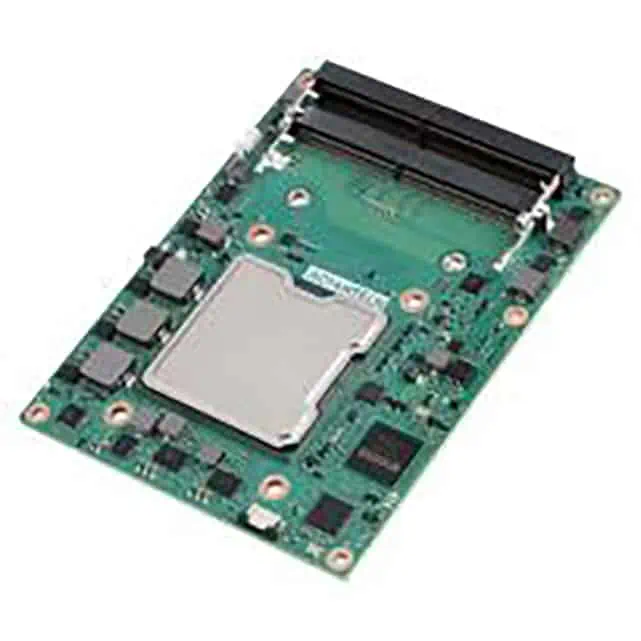

SOM-5993
The SOM-5993 is a COM Express Basic Type 7 module featuring Intel Xeon D CPU options and supporting up to 128GB of dual-channel DDR4 ECC or non-ECC memory.
The module features high-speed Ethernet interfaces, 16 PCIe Gen4 lanes and 12 PCIe Gen3 lanes, and supports WISE-DeviceOn remote management and Advantech's Edge AI suite.
Specifications:
| Dimensions | 125 x 95 mm |
| Power | Vin: 9-12V VSB: 5V RTC Battery: 2.0-3.3V 84.22W @ 12V max 34.5W @ 12V idle |
| Operating Temperature Range | 0 - 60°C standard -40 – 85°C extended |
| CPU | Intel Xeon D |
| Memory | Up to 128GB DDR4 |
| Expansion | 1 PCIe Gen4x16 1 PCIe Gen3x8 2 PCIe Gen3x4 |
| I/O | 1x SMBus 1x I2C Bus Gigabit Ethernet 10M/100M/1000M/2.5Gbps 2x SATA3.0 4x USB 3.2 Gen1 4x USB 2.0 1x SPI Bus 8-bit GPIO 2x 2-wire COM ports |
