MIO-2363

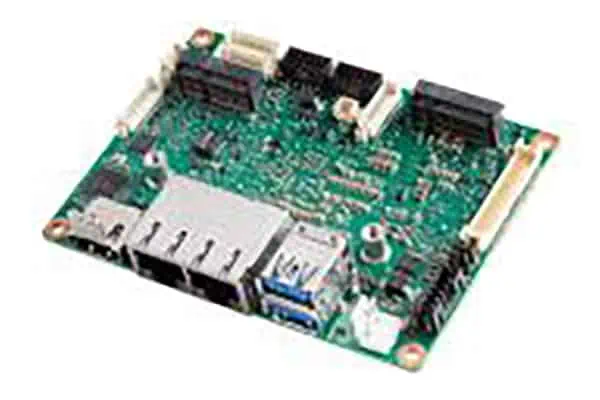

The MIO-2363 is a single-board computer in the Pico-ITX form factor, with Intel Atom x6000E CPU options and supporting up to 8GB of DDR4 memory and up to 128GB of eMMC storage. It provides a variety of I/O for connection of a range of sensors and peripherals, and supports iManager configuration, WISE-DeviceOn remote management and Advantech's Edge AI suite.
Specifications:
| Dimensions | 100 x 72 mm |
| Weight | 86g |
| Power | 12-24V |
| CPU | Intel Atom x6000E Series |
| Memory | Up to 8GB DDR4 |
| Operating Temperature Range |
0 – 60°C standard -40 – 85°C extended |
| I/O |
2 x Gigabit Ethernet 10/100/1000 Mbps 2 x USB 3.2 2 x USB 2.0 1 x I2C 8-bit GPIO 2 x RS-232/RS-422/RS-485 1 x HDMI/VGA/DP |
