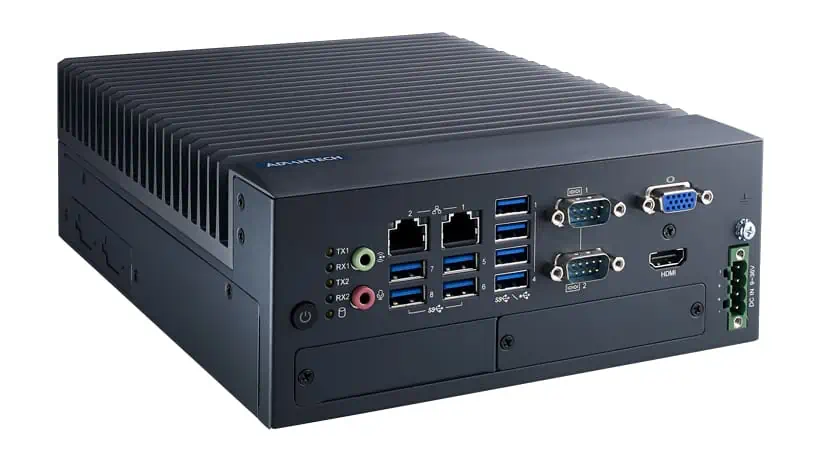

MIC-770
The MIC-770 is a compact fanless industrial PC system with Intel 10th Gen Xeon and Core i CPU options, supporting up to 64GB of DDR4 memory. The rugged PC is IP40-rated, making it ideal for autonomous ground vehicles deployed in harsh dusty environments.
The versatile IPC provides a variety of I/O, and supports WISE-DeviceOn remote management, Intel vPro/AMT and TPM technologies, and Advantech's Flex IO and iDoor expansion modules.
Specifications:
| Dimensions | 77 x 192 x 230 mm |
| Weight | 2.8 kg |
| Power | 9-36V 35.3W typical, 112W max |
| CPU | Intel 10th Gen Xeon/Core i |
| Memory | Up to 64GB DDR4 |
| Operating Temperature Range | -10 – 60°C |
| Expansion | 1 x mini PCIe (via Nano-SIM), 1 x mini PCIe/mSATA or 1 x mini PCIe (via Nano-SIM), 1 x mSATA |
| I/O | 2 x Gigabit Ethernet 10/100/1000 Mbps 2 x DB9, 4 x RS-232 (Optional) 1 x HDMI 1 x VGA 2 x USB3.2 (Gen2), 6 x USB3.2 (Gen1), 1 x USB 2.0 (Internal) or 4 x USB3.2 (Gen1), 4 x USB2.0 |
