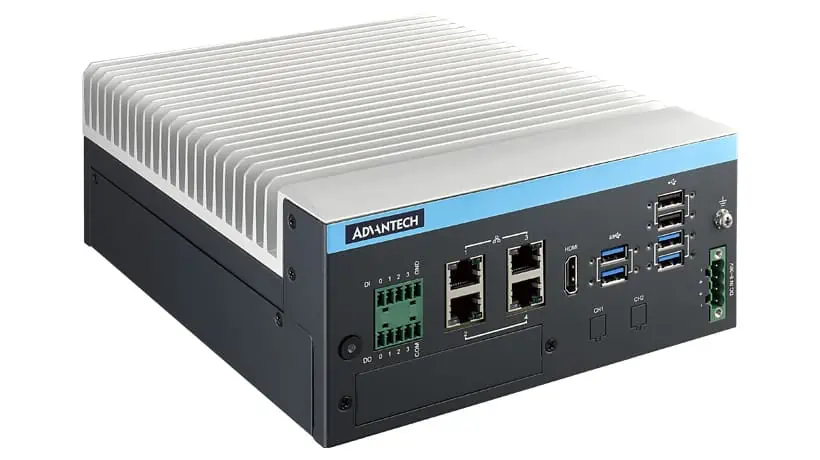

MIC-733
The MIC-733 is a compact fanless AI inference system powered by the NVIDIA Jetson AGX Orin platform and delivering up to 275 TOPS of computing power. Ideal for smart city and robotics applications, the high-performance unit supports Allxon 24/7 remote monitoring and OTA deployment.
Specifications:
| Dimensions | 192 x 230 x 87 mm |
| Weight | 4.5 kg |
| Power | 9-36V |
| CPU |
32GB: 8-core ARM Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 64GB: 12-core ARM Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
| GPU |
32GB: 1024-core NVIDIA Ampere GPU with 56 Tensor Cores 64GB: 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| Memory |
64G: 64GB LPDDR5 32G: 32GB LPDDR5 |
| Operating Temperature Range | 0 - 60°C |
| Expansion |
2 x mPCIe (Signal: PCIe+USB) 2 x Nano SIM slots 1 x M.2 3052 (B-Key, Signal: USB) 1 x TPM 2.0 (optional) 2-ch GMSL2.0 with FAKRA connectors (optional) 1 x iDoor bracket reserve (optional) 1 x PCIe x8 (optional expansion module) |
| I/O |
4 x Gigabit Ethernet 10/100/1000 Mbps (optional PoE support) 4 x USB 3.2 2 x USB 2.0 1 x USB 2.0 internal 2 x RS-232/422/485 (on board pin header) 1 x microUSB 4-ch DI, 4-ch DO 1 x HDMI 1 x MicroSD |
