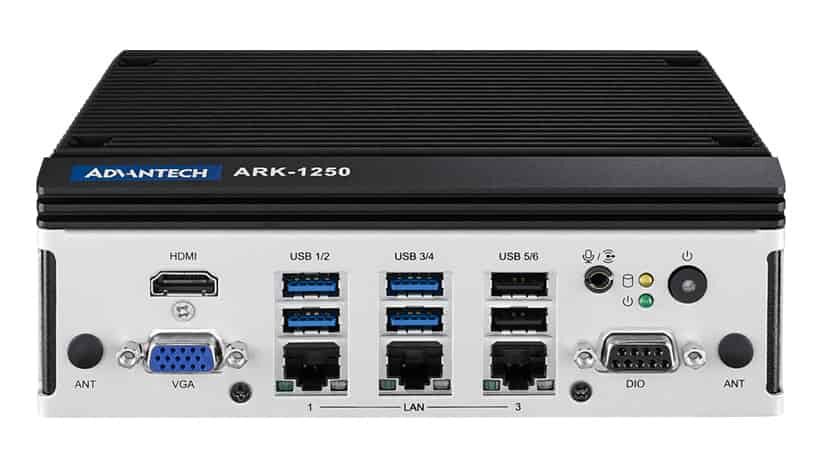

ARK-1250L
The ARK-1250L is a high-performance industrial-grade computing platform with Intel 11th Gen CPU options and supporting up to 64GB of DDR4 memory. The system is ideal for accelerated AI and automated robotics applications, and can be easily installed via DIN-rail or wall mount.
The rugged unit features a variety of I/O, allowing connection of a range of sensors and peripherals. It can also be equipped with 5G/LTE communications.
Specifications:
| Dimensions | 60 x 173 x 141 mm |
| Weight | 1.5 kg |
| Power | 12-24V |
| CPU | Core i5-1145G7E/Core i3-1115G4E |
| Memory | Up to 64GB DDR4 |
| Operating Temperature Range | -40 – 60°C extended |
| Expansion |
1 x full-size mPCIe x M2. 2230 E key 1 x M.2 2280 B key with nano SIM holder |
| I/O |
2 x Gigabit Ethernet 10/100/1000/2500 Mbps 1 x Gigabit Ethernet 10/100/1000 Mbps 3 x USB 3.2 3 x USB 2.0 1 x CANbus 16-bit DI/DO 4 x RS-232/RS-422/RS-485 1 x HDMI 1 x VGA |
