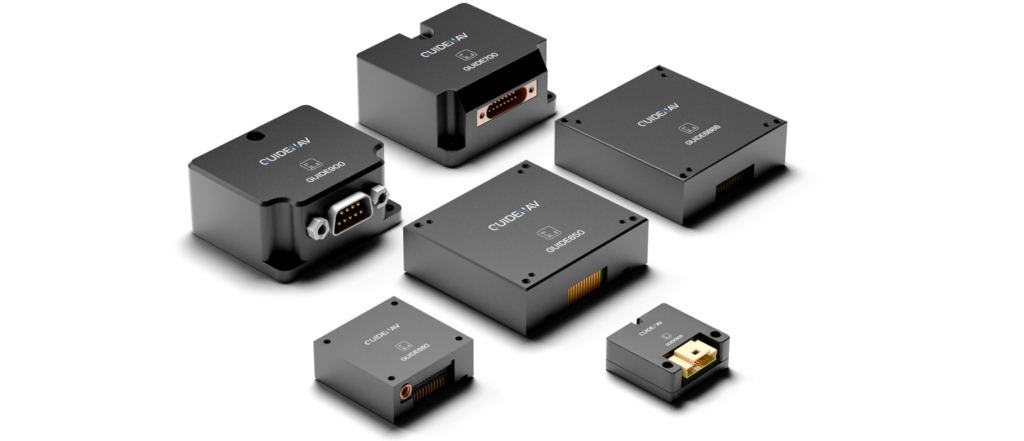

The Advantages of GuideNav IMUs for FPV Drone Flight Control

GuideNav provides advanced MEMS IMUs (Micro-Electro-Mechanical Systems Inertial Measurement Units) for precision FPV (First-Person View) drone control, including competitive racing, cinematic aerial footage, and other flight operations.

A MEMS IMU is a key component in drone systems, designed to measure the drone’s acceleration, angular velocity, and sometimes magnetic fields. Typically made up of accelerometers, gyroscopes, and magnetometers, IMUs provide the essential data required to monitor and adjust a drone’s orientation, position, and motion.

These sensors enable a drone to maintain stable flight, even during high-speed maneuvers or under challenging conditions. When selecting an IMU for FPV drones, precision and sensor capabilities are key. GuideNav’s GUIDE IMUs are tailored to different needs based on accuracy, size, and application.

GUIDE688B: Ten-Axis MEMS IMU (Moderate Precision)

The GUIDE688B is a versatile IMU ideal for general-purpose FPV drones and freestyle flying. Its 10-axis system, which includes gyroscopes, accelerometers, magnetometers, and a barometric pressure sensor, offers reliable performance for moderate precision needs.

• Gyroscope Accuracy (Bias Stability): 1.2°/hr.
• Best Use Cases: General-purpose FPV drones, casual freestyle flying, and moderate racing applications.

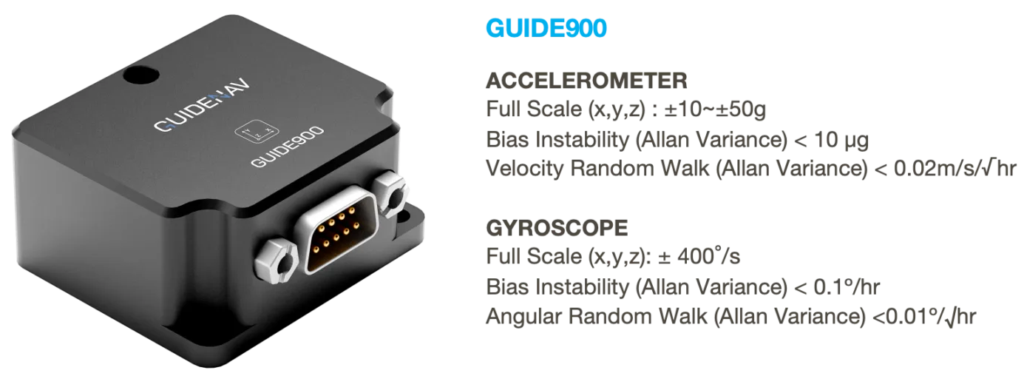

GUIDE900: High-Precision MEMS IMU (Professional and Racing Drones)

The GUIDE900 is a six-axis IMU that delivers enhanced precision, low drift, and high accuracy. Ideal for high-performance and racing FPV drones, the GUIDE900 ensures rapid, precise responses for quick maneuvers and high-speed stability.

• Gyroscope Accuracy (Bias Stability): 0.1°/hr.
• Best Use Cases: FPV racing drones, high-end cinematic drones, and professional FPV applications.

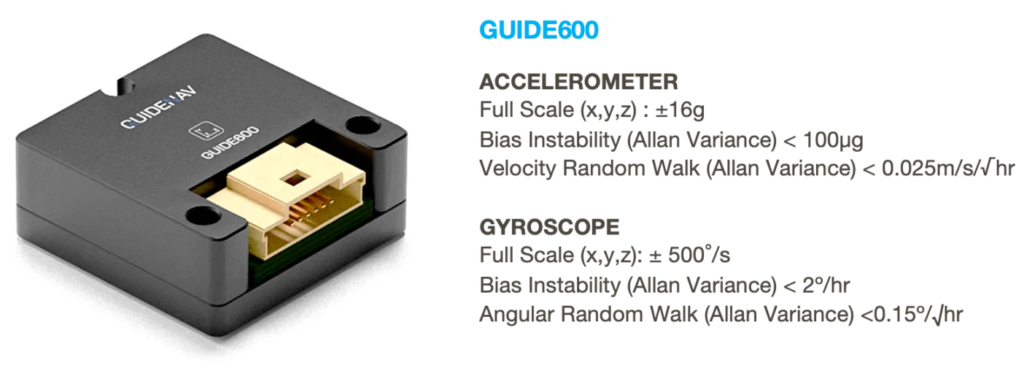

GUIDE600: Low-Cost MEMS IMU (Entry-Level Drones)

For beginners or those on a budget, the GUIDE600 offers a cost-effective solution without compromising essential functionality. This six-axis IMU provides basic control and stability for entry-level FPV drones.

• Gyroscope Accuracy (Bias Stability): 2°/hr.
• Best Use Cases: Beginner FPV drones, budget systems, and casual flying.



Why IMUs Are Critical for FPV Drones

In FPV flying, every millisecond counts. The real-time data provided by an IMU allows the drone’s flight controller to make rapid adjustments, ensuring the drone responds instantly to pilot inputs. This is crucial for maneuvering in tight spaces, executing sharp turns, and stabilizing the drone during high-speed flight. Without the precise data an IMU provides, the drone would struggle to maintain control during complex movements.

Key Benefits of IMUs for FPV:

• Compact and Lightweight: MEMS IMUs are designed to be small and lightweight, making them ideal for FPV drones where every gram matters.
• Real-Time Data: Continuous feedback ensures that the flight controller can adjust flight surfaces instantaneously, maintaining stability and smoothness.
• High Reliability: These sensors are highly reliable, even during aggressive maneuvers or when flying in windy conditions.
• Cost-Effective: MEMS technology keeps IMUs affordable, making them accessible to both hobbyists and professionals.

How MEMS IMUs Improve FPV Flight

Flight Stabilization and Control
The gyroscope in the IMU measures rotational movement, while the accelerometer tracks linear acceleration. By processing this data, the IMU allows the flight controller to adjust the drone’s roll, pitch, and yaw to ensure stable flight, even during sharp turns or flips. The IMU provides real-time updates, ensuring smooth and controlled maneuvers throughout the flight.

Enhanced Maneuverability
Whether participating in a race or performing freestyle stunts, precise control is essential. MEMS IMUs provide fast and accurate data to allow for quick responses to pilot inputs. This enables the drone to react immediately to sharp turns or flips, making them ideal for competitive FPV racing or advanced maneuvers.

Improved Stability
External factors like wind gusts or motor vibrations can challenge flight stability, but MEMS IMUs constantly monitor the drone’s orientation and adjust the flight controller’s movements accordingly. This ensures smooth, stable flight even in unpredictable conditions, making them perfect for both casual flying and cinematic FPV applications.

Sensor Fusion for Higher Accuracy
MEMS IMUs use sensor fusion to combine data from various sources like the gyroscope, accelerometer, and magnetometer. This fusion provides a more accurate picture of the drone’s position, helping it maintain its course even when GPS signals are weak or unavailable. This enhanced data accuracy is essential for stability, especially during long or high-speed flights.
