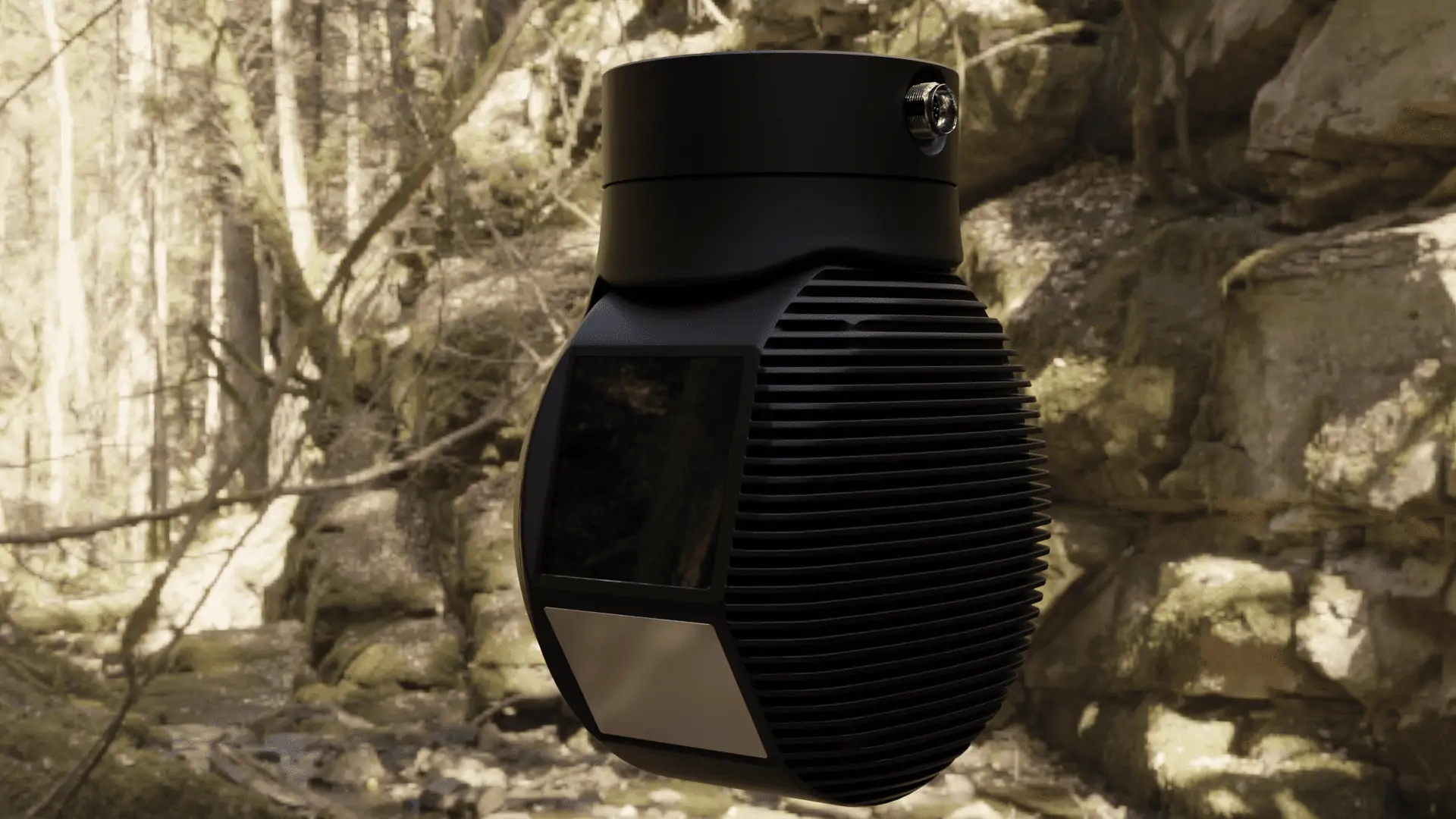

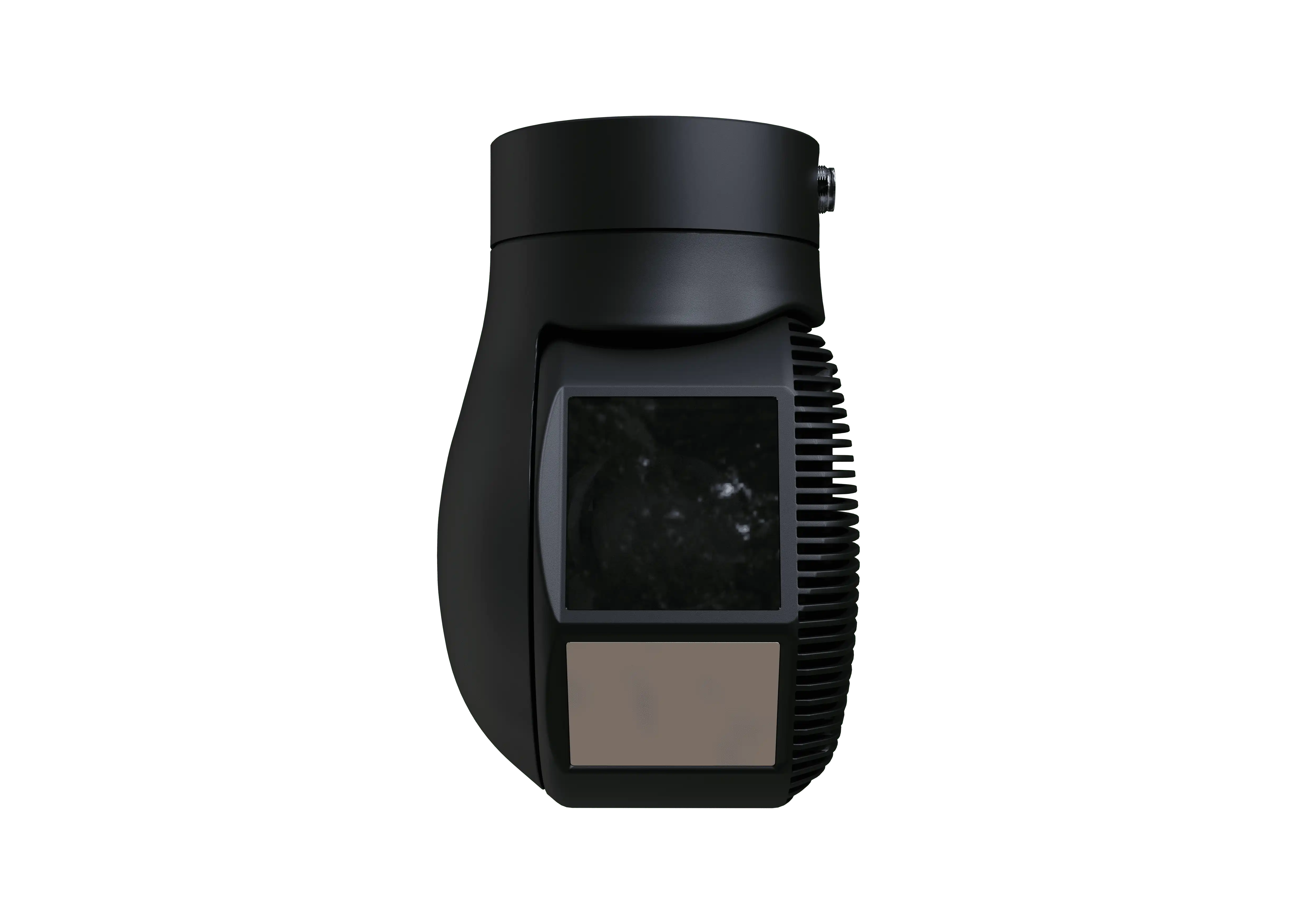

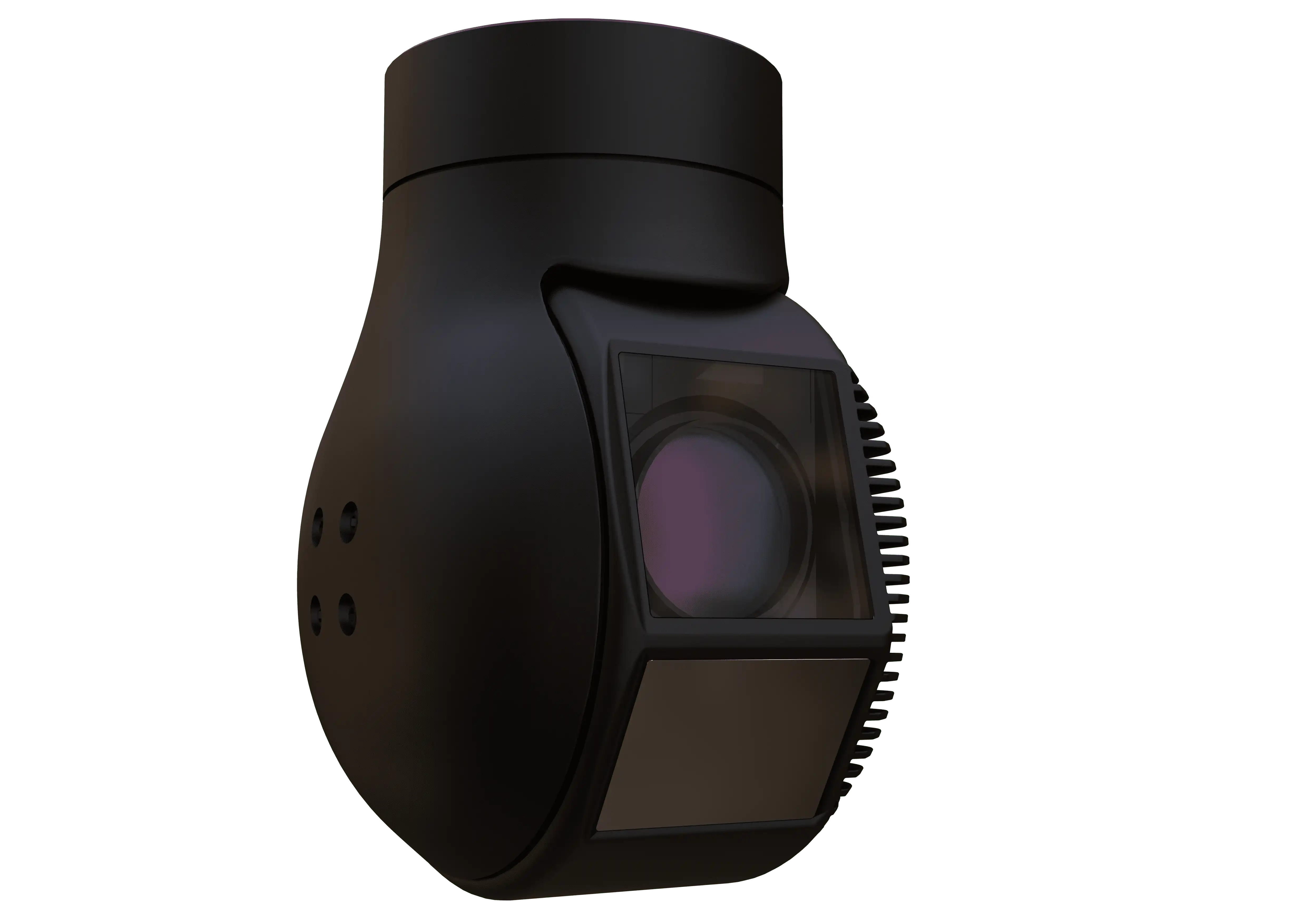

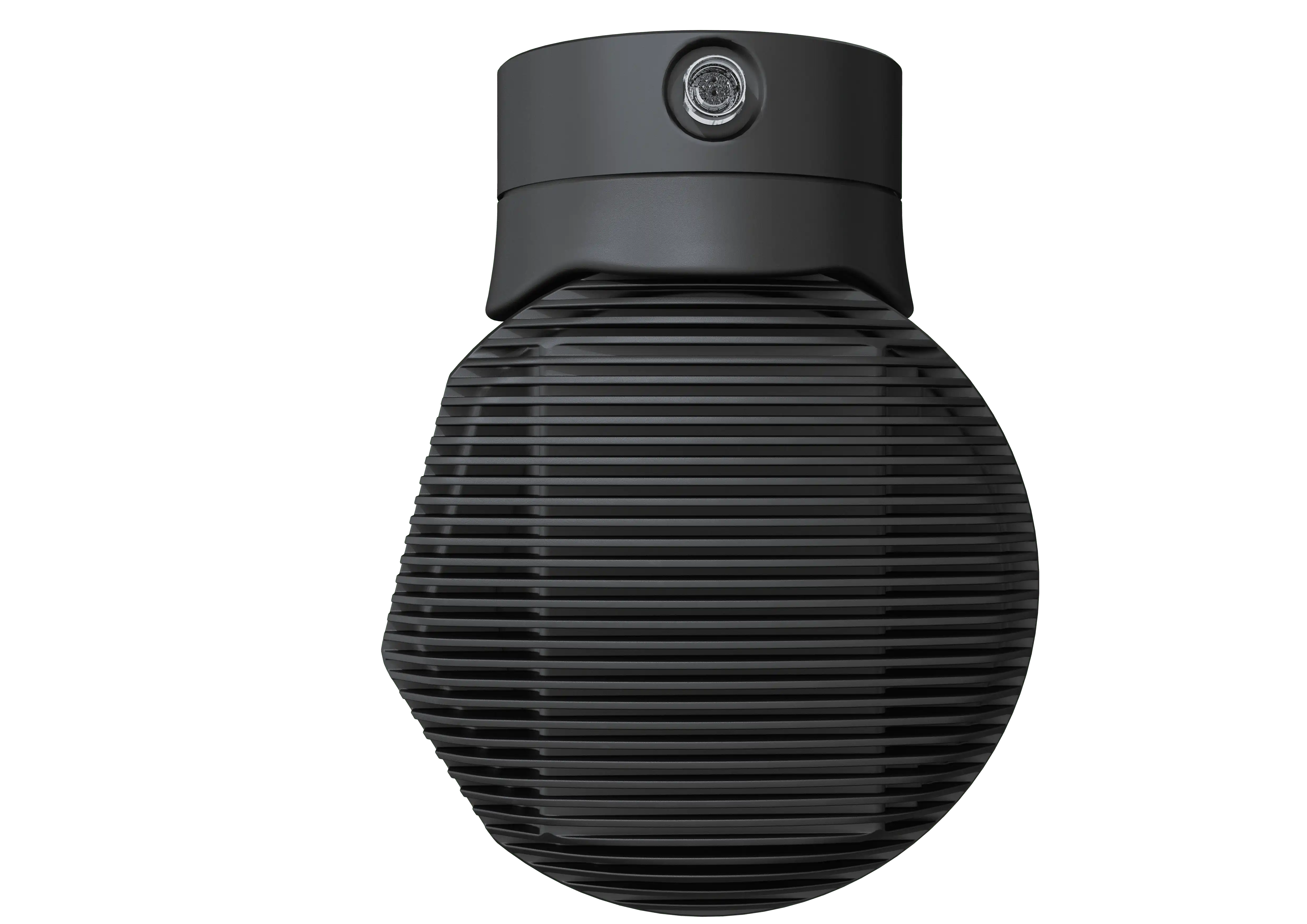

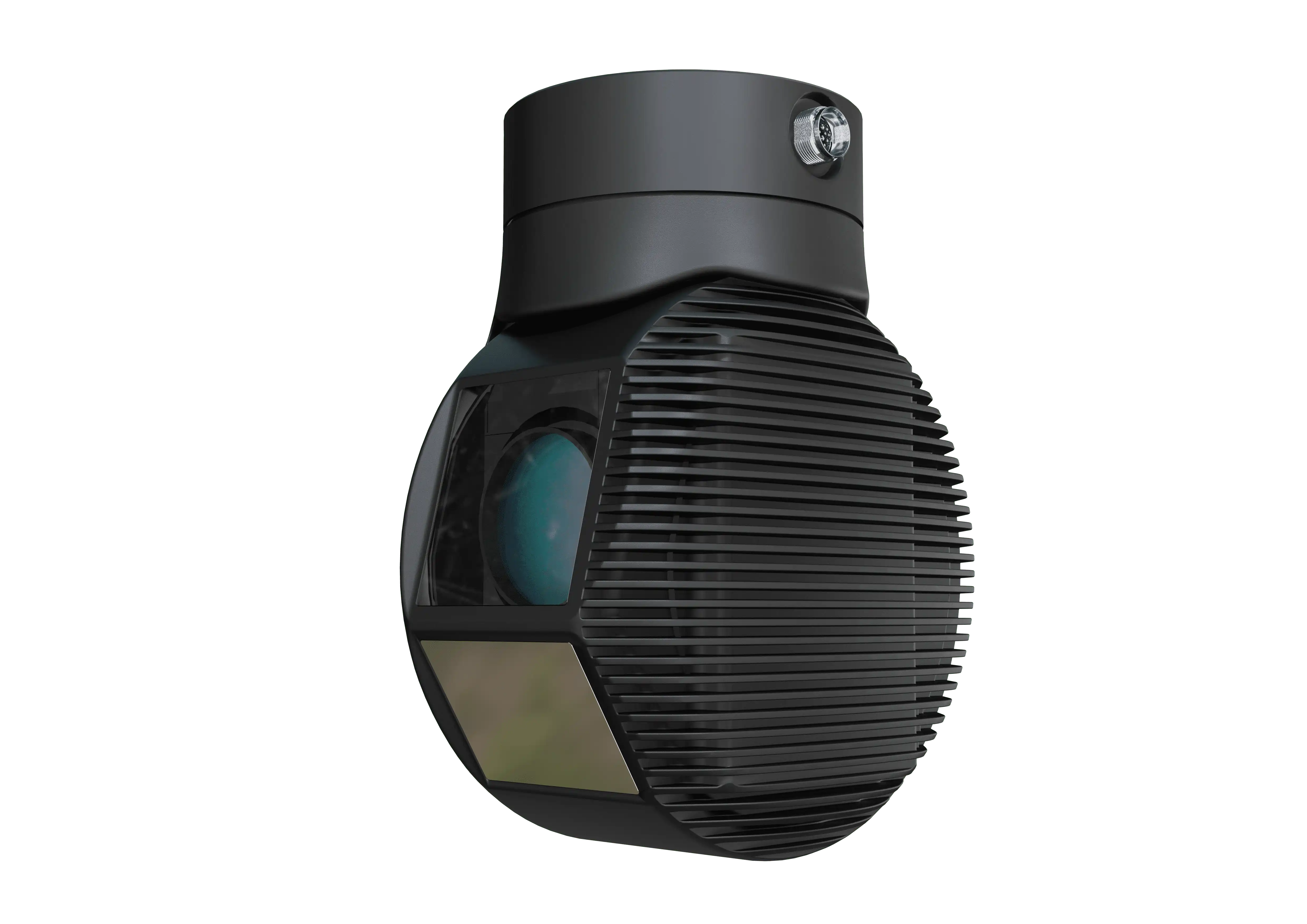

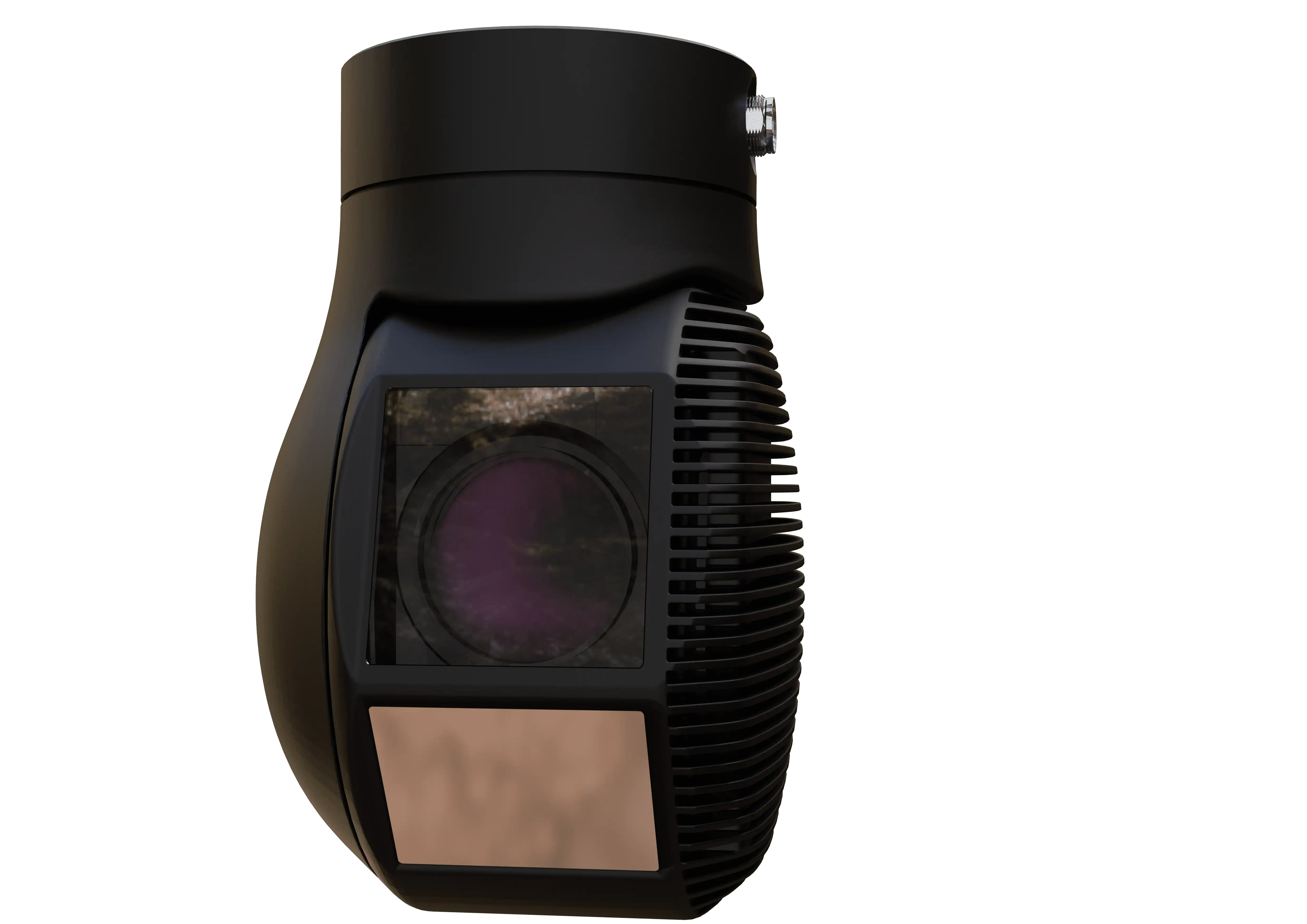

Optroxa GMB 600 Gimbal

The Optroxa GMB 600 sets new standards for the weight, size, and performance of professional thermal and RGB camera gimbals. It utilizes a built-in video processor to enable advanced image processing and several industry-standard communication interfaces while keeping the weight and power consumption low.

The built-in RGB camera offers up to 18x optical zoom + 10x digital zoom with recording in HD which helps to capture and record vital details, maximizing the value of your operations. In addition to the RGB camera, the gimbal offers a laser range finder and a high-performance thermal camera, built into the module offering a resolution of 640×512 and frame rates up to 60 Hz.

Dimensions (D x H x W) 3.86 x 4.92 x 3.27 inches / 98 x 125 x 83 mm
Voltage Input 12 – 38V
RGB Camera Resolution Sony IMX 296C, 1080p (1440 x 1080)
Thermal Camera Wavelength Long wave infrared, 7.5µm-13.5µm
Thermal Camera Resolution 640 x 512 or 320 x 256
