A2 Series Linear Actuators

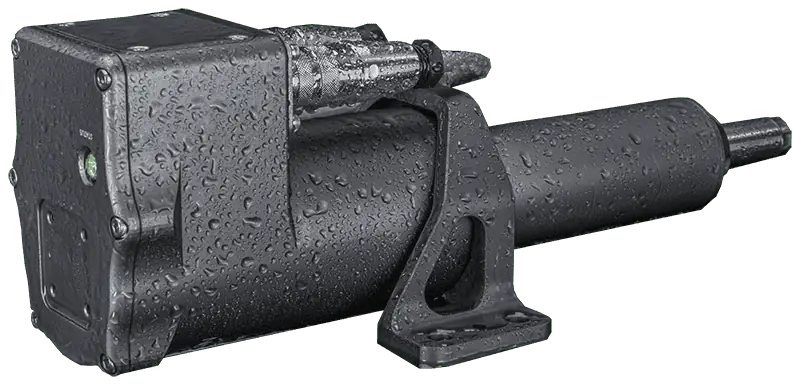

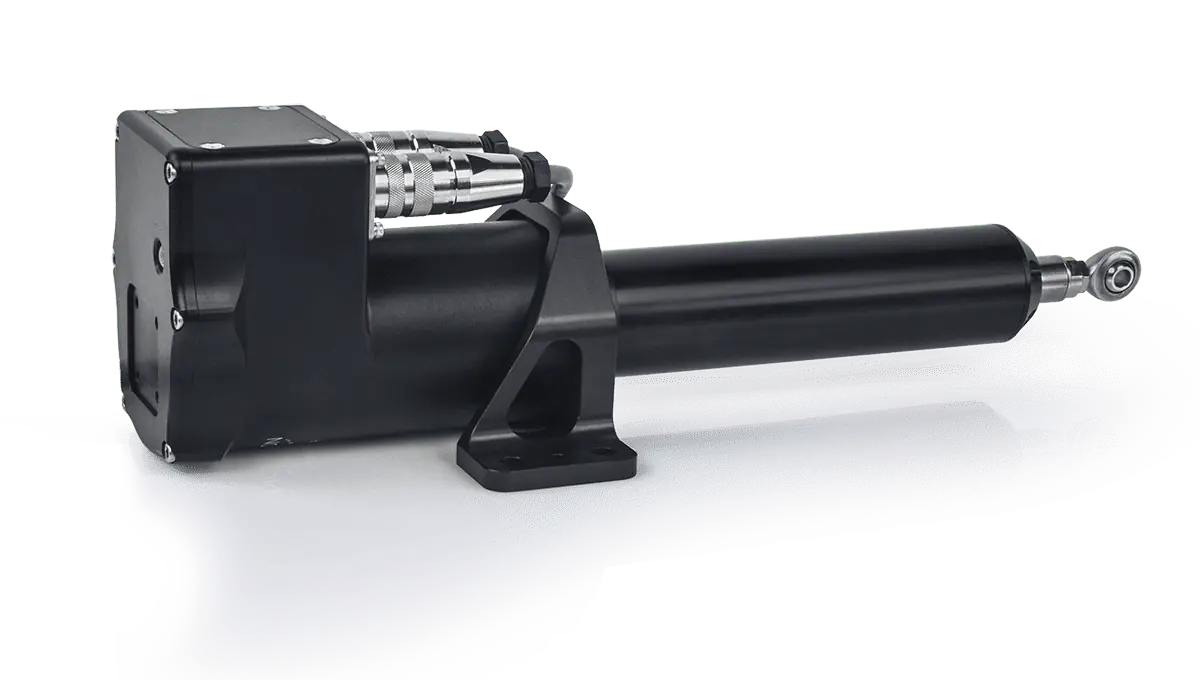

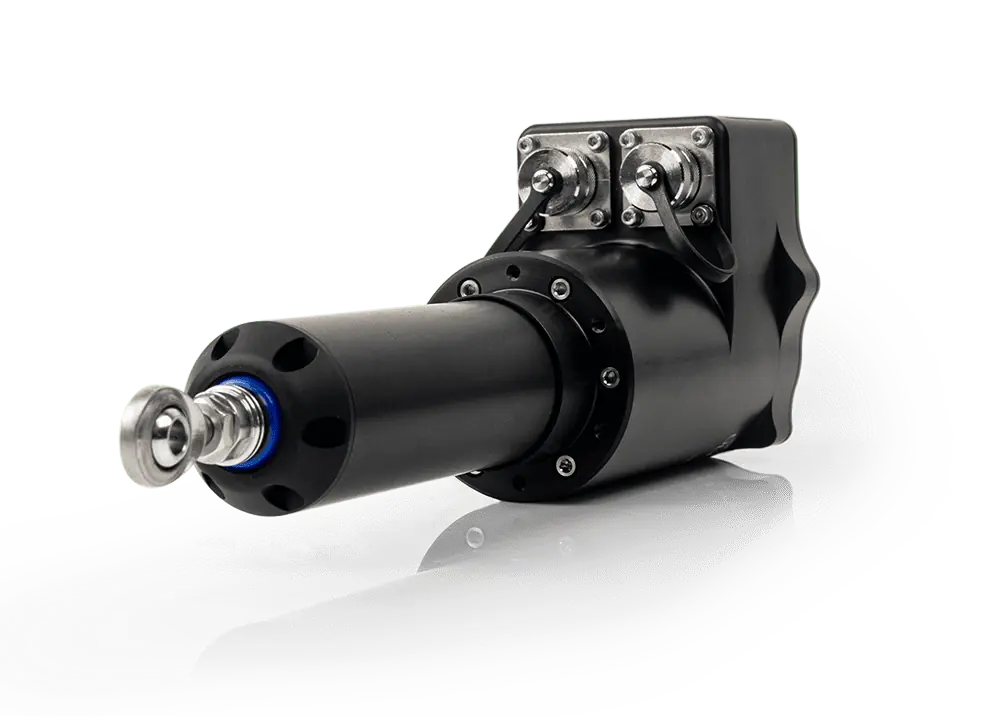

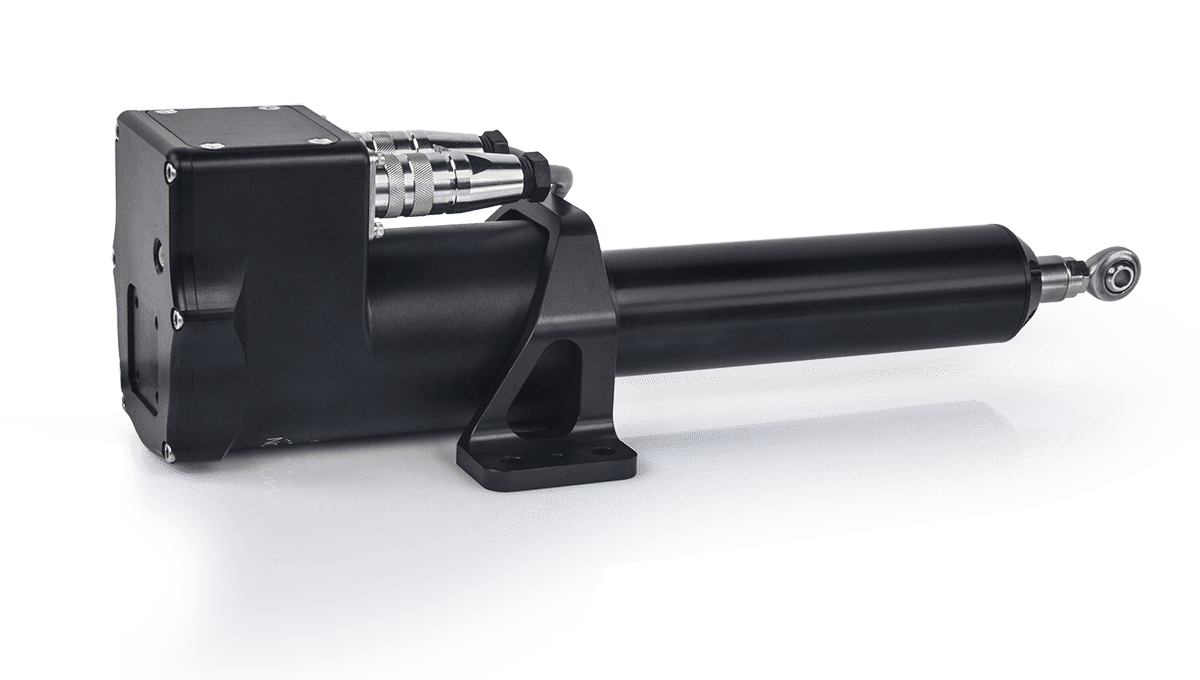

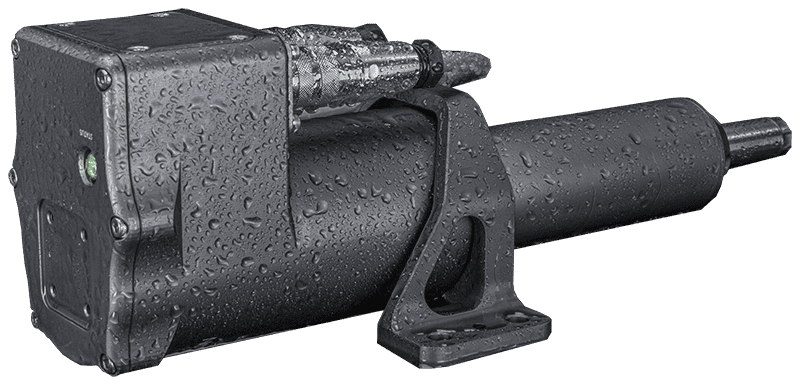

The A2 Series Servo Cylinder is an industrial-grade linear actuator designed to ensure reliable performance for robotic systems operating in dirty, debris-filled or outdoor environments. It is IP65-rated and features metal shell connectors.
The versatile actuator can be configured with a number of options, including screw, BLDC motor size, stroke length, and a choice of three controllers.
Contactless absolute position feedback and control electronics built-in with control options including CAN 2.0B, RS-422/RS-485 serial, RC PWM, 4-20 mA in/out, and more.
Specifications:
| Force (peak) | Up to 530 lbf (2.36kN) |
| Force (continuous) | Up to 270 lbf (1.20kN) |
| Speed | Up to 14in/s (356mm/s) |
| Stroke Length | Up to 7.75in (197mm) |
| Resolution | Up to 0.000061in (1.55µm) |
| Operating Voltage | 8 to 36 VDC |
| Operational Temperature Range | -40°F to 176°F (-40°C to 80°C) |
