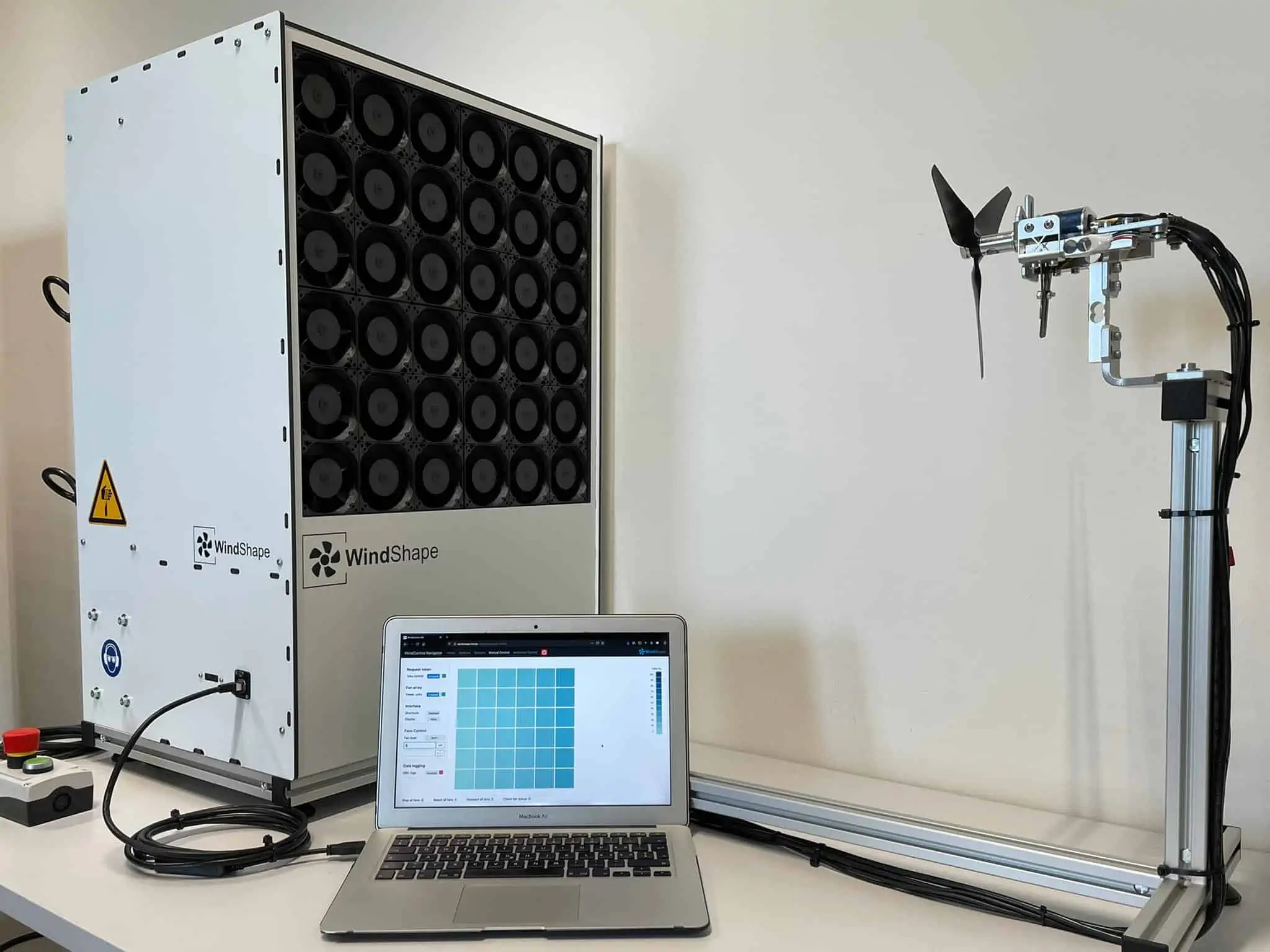

Drone Test Stands for Motor & Propeller Testing, Wind Generators for Free-Flight & Drone Resistance Tests
Series 1580/1585 Drone Test Stand Thrust stand for drone propulsion systems
Series 1580/1585 Drone Test Stand

Thrust stand for drone propulsion systems

Visit Website Send Message
Saved
Save

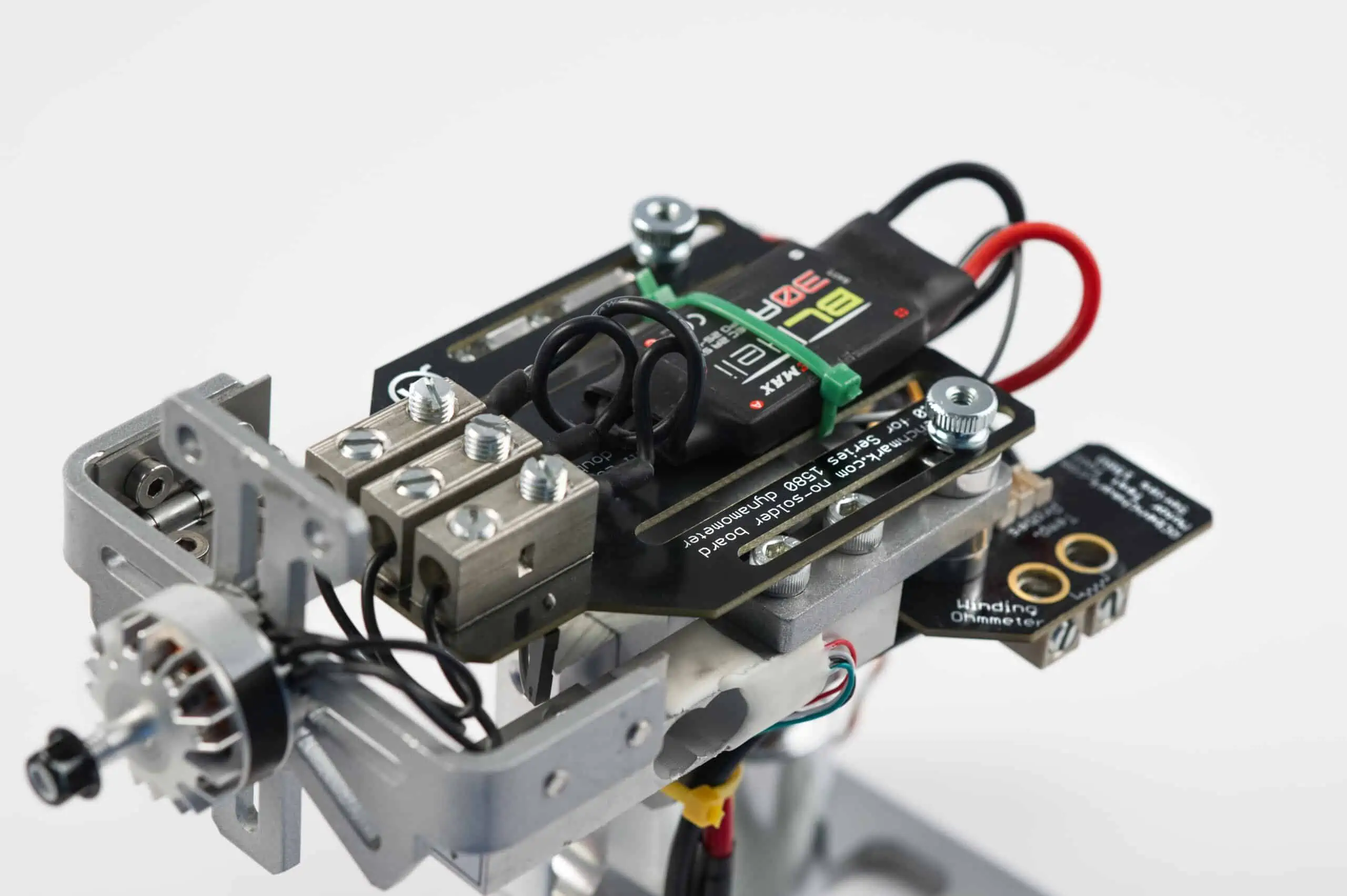

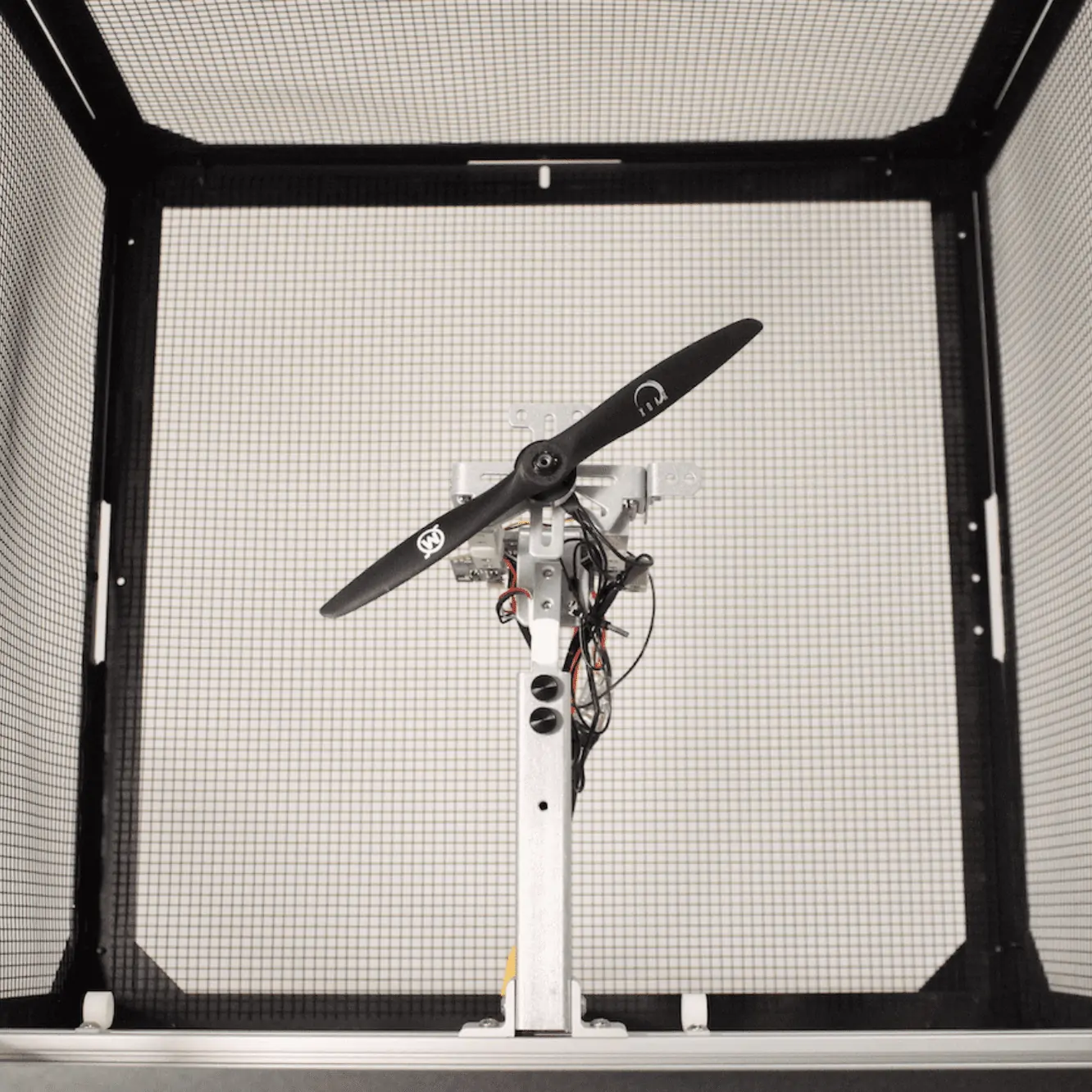

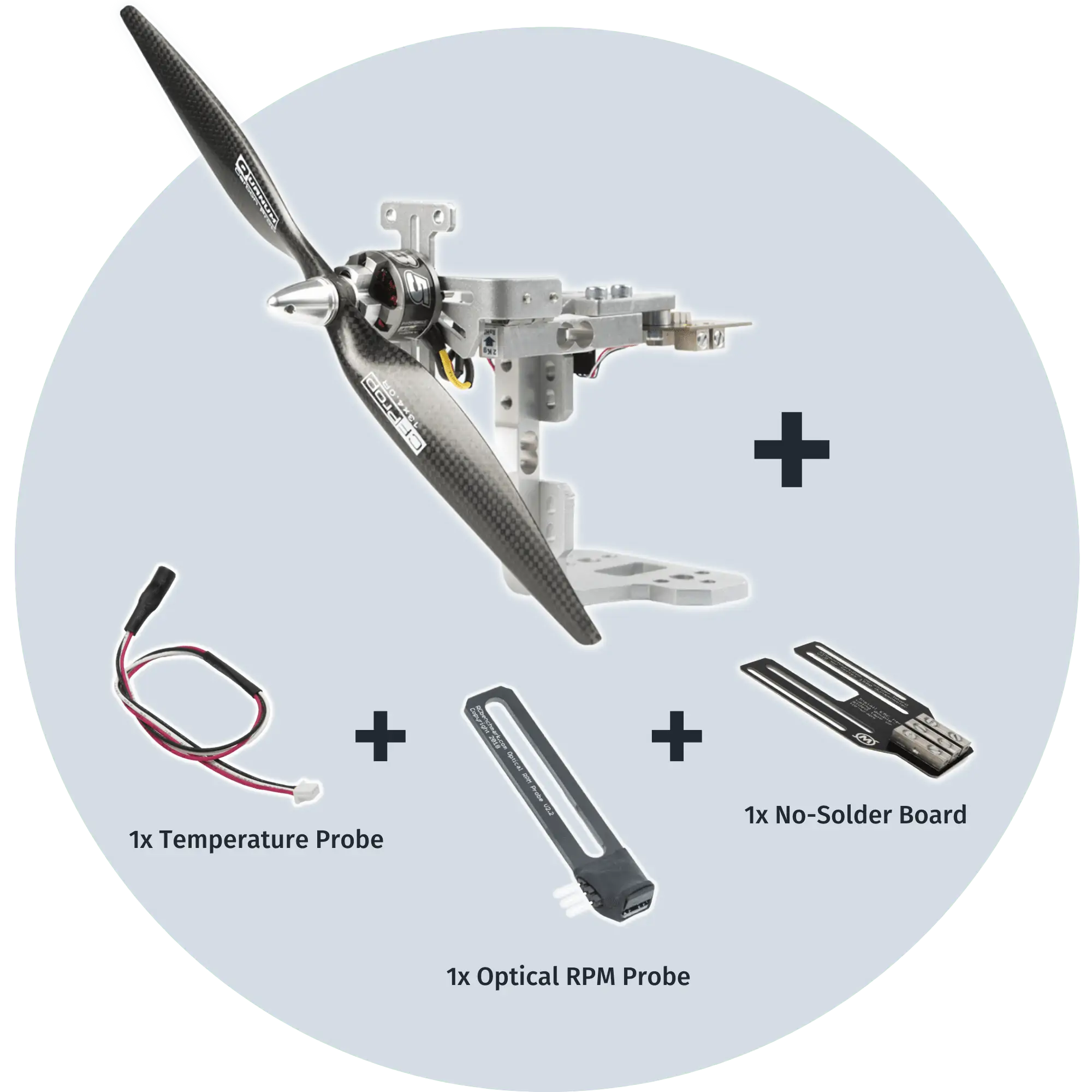

Series 1580/1585 Drone Test Stand Measure up to 5 kgf of thrust and 2 Nm of torque

A professional test stand that allows you to measure and characterize anything you need to know about your drone’s propulsion system, including thrust, torque, voltage, current, motor rotation speed, vibration, and efficiency.

With enhanced dynamic response, greater power capacity, and increased electrical noise immunity, it allows you to optimize flight time, payload and reliability for quadcopter, multirotor and fixed-wing drone designs.

Max Thrust 5 kgf
Max Torque 1.5 Nm
Max Voltage 50V
Max Continuous Current 55A
Max Force Measurement rate Up to 80 Hz
