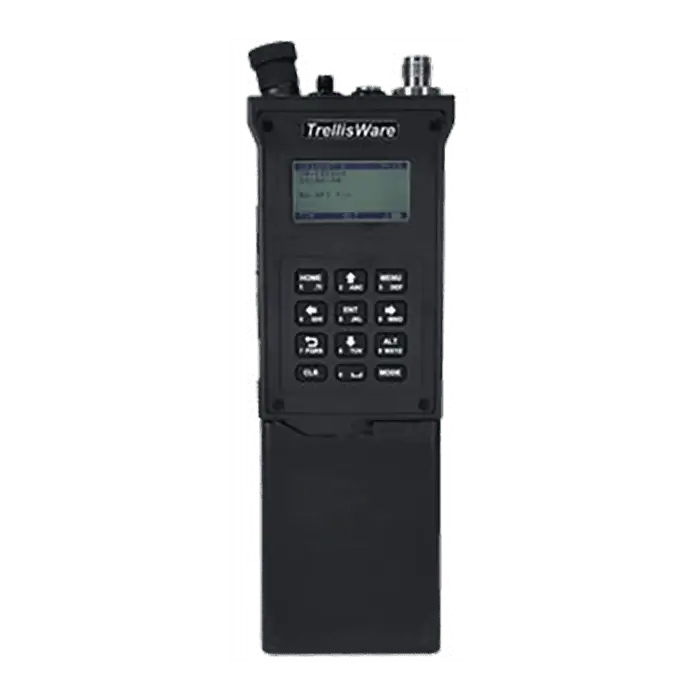

TW-900/950 TSM Shadow Radio
The TW-950/900 TSM Shadow radio provides expanded frequency range and is designed to deliver high throughput for streaming multiple HD videos. With a low SWaP (size, weight and power) footprint, it is ideal for both mounted and dismounted operations
The versatile tactical networking solution is massively scalable, supporting hundreds of nodes and using less spectrum than any other Mobile Ad Hoc Networking (MANET) technology. It can be used to bridge geographically- or RF-separated networks over any IP link.

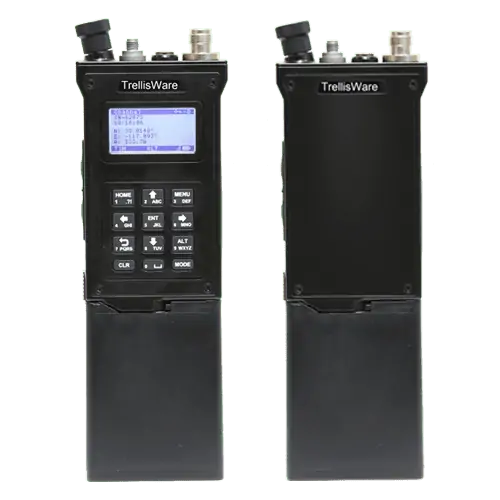

Both models provide identical networking capabilities, with the TW-950 including a front display panel.
Specifications:
| Dimensions (HxWxD) |
11.53 x 7.01 x 2.21 cm 4.54 x 2.76 x 0.90 in |
| Weight | 320 g (11.3 oz) |
| Frequency Ranges |
225–450 MHz 698-970 MHz 1250–2600 MHz |
| Configurable Bandwidth | 1.2, 3.6, 10, 20, 40 MHz |
| Transmit Power | 100 mW, 250 mW, 500 mW, 1W, 2W |
| Data Rate | Up to 32 Mbps point-to-point |
