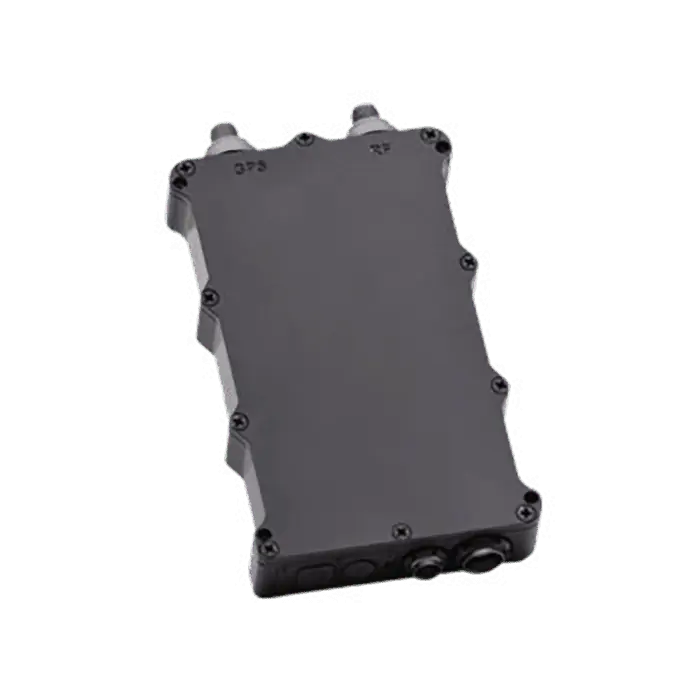

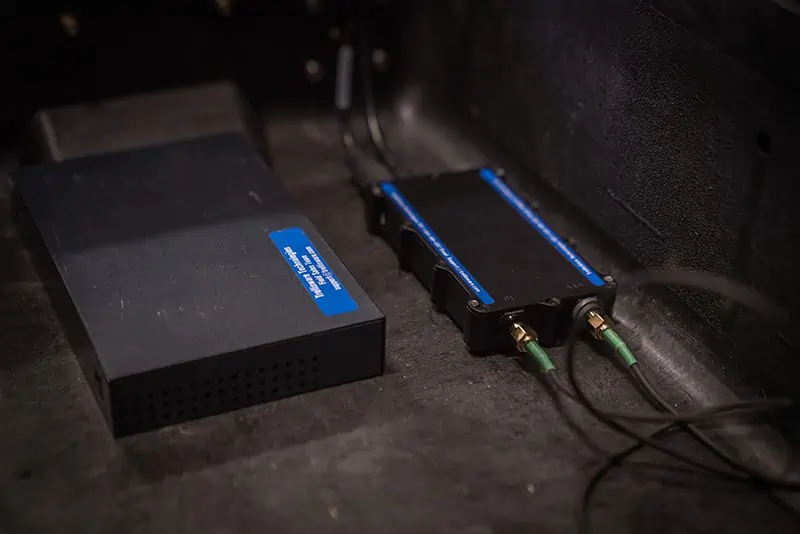

The TW-870 is a self-contained radio unit that provides the smallest and simplest TrellisWare TSM and MANET solution without having to go down to board level. It is ideal for UAVs, unmanned systems, and mobile ad-hoc networking applications requiring rapid deployment.
The TW-870 requires only the connection of RF and GPS antennas, data and power. It covers the UHF, L-Band, and S-Band frequencies, and it a highly cost-effective option for relay or network extension requirements.
|Dimensions (HxWxD)||119.12 x 62.48 x 17.27 mm
4.69 x 2.46 x 0.68 in
|Weight||249g (8.8 oz)|
|Frequency Ranges||225–450 MHz
|Configurable Bandwidth||1.2, 3.6, 10, 20, 40 MHz|
|Transmit Power||100 mW, 250 mW, 500 mW, 1W, 2W|
|Data Rate||Up to 32 Mbps point-to-point|
