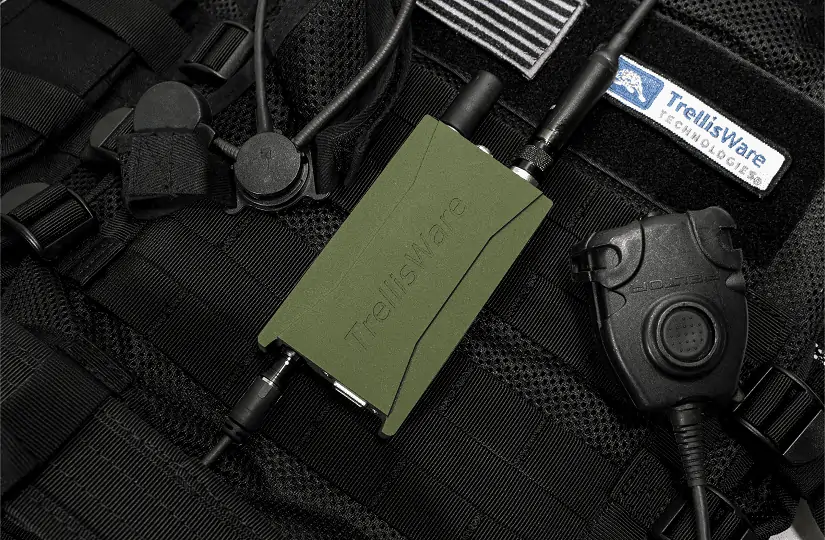

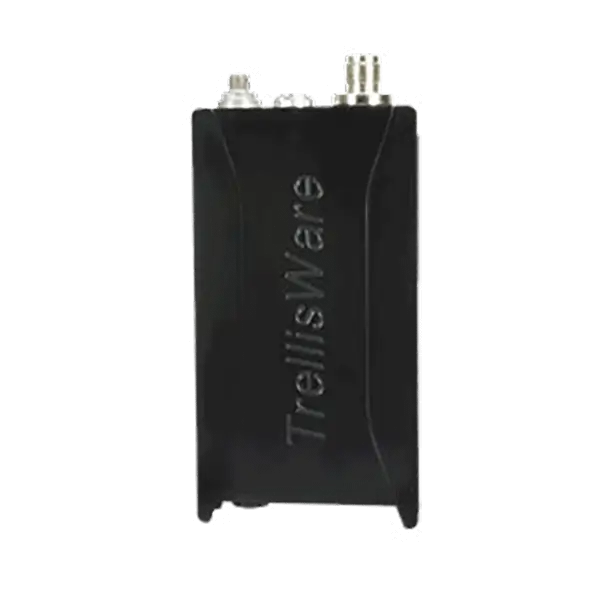

The TW-860 radio is designed for flexible global deployments, providing total spectrum coverage of nearly 1850 MHz and over 1500 channels at 1.2 MHz bandwidth. The versatile all-in-one unit does away with the need to deploy multiple radios to cover multiple bands.
The proprietary TSM waveform enables robust networking in harsh RF environments and on-the-move applications, and also provides advanced Mobile Ad Hoc Networking (MANET) capabilities. Networks can be scaled from a few nodes to hundreds of nodes in a single RF channel, and multiple networks can also be connected together.
The TW-860 provides a host of useful features, including support for USB-C Power Delivery (PD), built-in GPS for positional reporting, a daylight-readable display, and a compact keypad for direct control.
Specifications:
| Dimensions (HxWxD) |
119.38 x 63.50 x 18.79 mm 4.7 x 2.5 x 0.74 in |
| Weight | 249g (8.81 oz) |
| Frequency Ranges |
225–450 MHz 698-970 MHz 1250–2600 MHz |
| Configurable Bandwidth | 1.2, 3.6, 10, 20, 40 MHz |
| Transmit Power | 100 mW, 250 mW, 500 mW, 1W, 2W |
| Data Rate | Up to 32 Mbps point-to-point |
