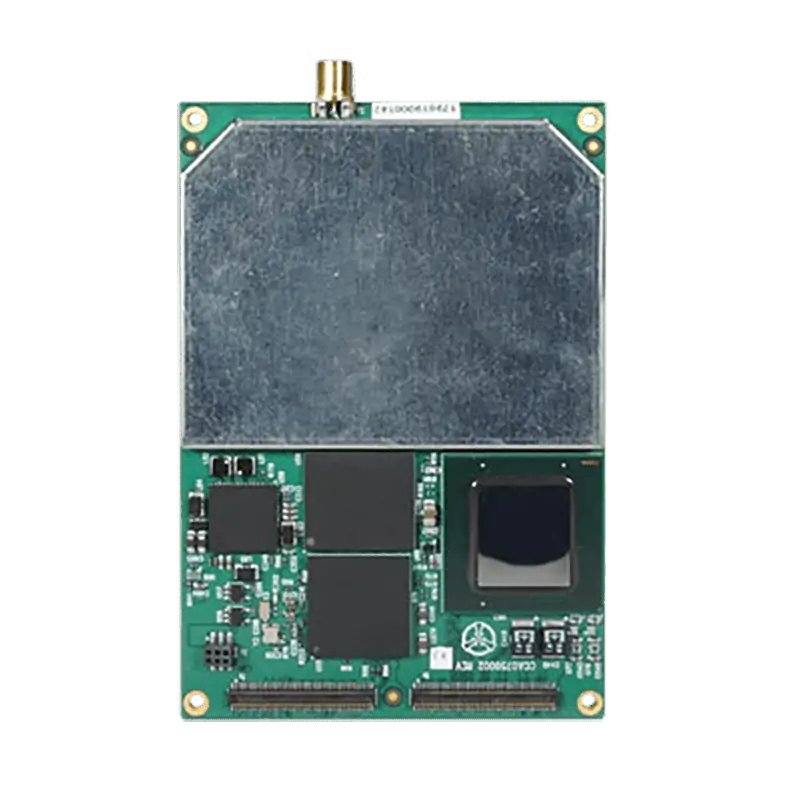

TW-650 TSM Shadow Module
The TW-650 is a single-board SDR module designed to be integrated into SWaP-critical UAVs and unmanned systems. Designed to provide reliable connectivity for tactical mobile ad-hoc networking, it is ideal for transmission of audio, data, video, and positional information.
The module provides a full feature set, including a software API for control and status messages through an IP interface, and browser-based apps for end-user configuration and monitoring of the TSM network.
Specifications:
| Dimensions (HxWxD) | 74.17 x 50.80 x 2.79 mm 2.92 x 2.00 x 0.11 in |
| Weight | 34.09g (1.2 oz) |
| Frequency Ranges | 225–450 MHz 698-970 MHz 1250–2600 MHz |
| Configurable Bandwidth | 1.2, 3.6, 10, 20, 40 MHz |
| Transmit Power | Up to 2W |
| Data Rate | Up to 16 Mbps point-to-point |
