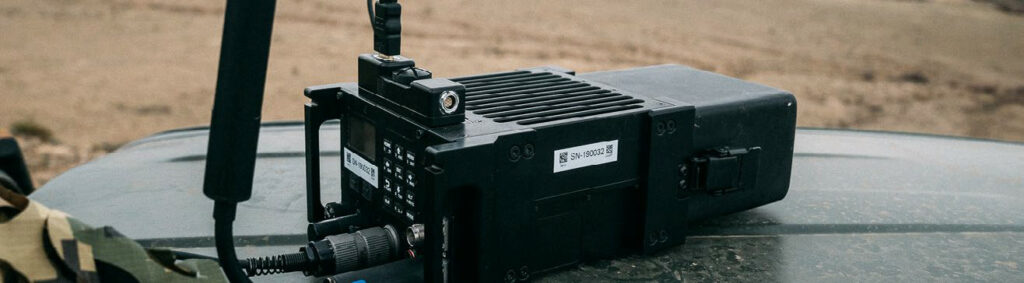

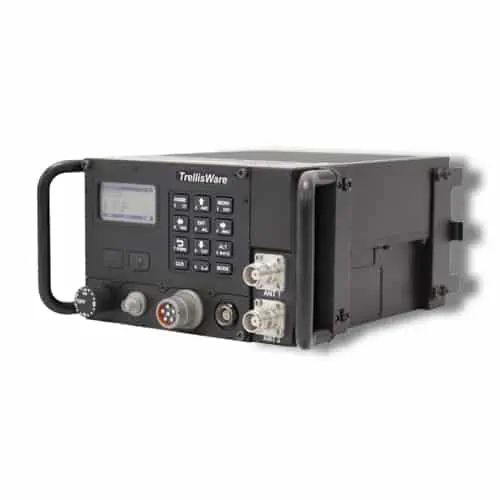

The TW-135 TSM Shadow is a high-powered radio delivering 20W of transmit power in UHF, L-band and S-band with a long-range mode of up to 200 miles. The unit's versatile form factor allows it to be deployed in airborne, ground vehicle, fixed-site or manpack configurations, making it ideal for supporting a variety of UAV and unmanned systems applications.
The proprietary TSM waveform enables robust networking in harsh RF environments and on-the-move applications, and also provides advanced Mobile Ad Hoc Networking (MANET) capabilities. Networks can be scaled from a few nodes to hundreds of nodes in a single RF channel, and multiple networks can also be connected together.
The TW-135 TSM Shadow also includes a MIL-STD-1275 compliant power interface to support military vehicle installation.
| Dimensions (HxWxD) | 88.36 x 133.35 x 184.40 mm 3.4 x 5.25 x 7.26 in |
| Weight | 2.9kg (6.4 lbs) |
| Frequency Ranges | 225–450 MHz 698-970 MHz 1250–2600 MHz |
| Configurable Bandwidth | 1.2, 3.6, 10, 20, 40 MHz |
| Transmit Power | 100 mW, 2W, 5W, 10W, 20W |
| Data Rate | Up to 16 Mbps |
