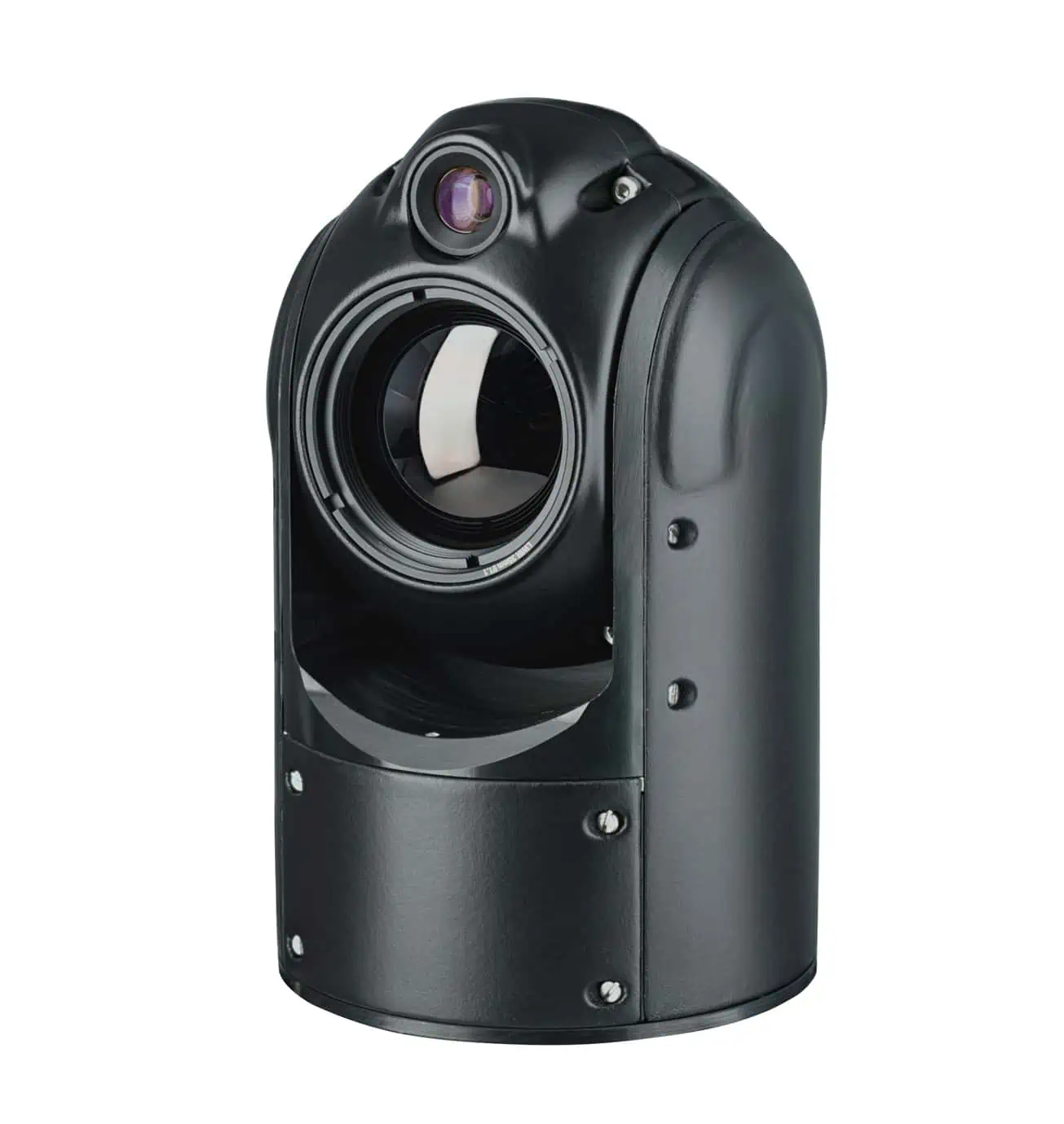

Velox is a two-axis gyro-stabilized EO/IR payload designed to meet a wide range of commercial, industrial and defense aerial imaging and surveillance applications. The versatile imaging system features a low SWaP footprint, enabling longer UAV flight times and mission endurances, and is ideal for a wide range of drone platforms, including multirotors, fixed-wing aircraft, and unmanned helicopters.
Featuring a 12 MP RGB camera and an uncooled 640 x 512 LWIR camera, the advanced payload achieves precision elevation and azimuth stabilization of better than 80 μRad. With excellent dynamic performance, it can compensate for even large-amplitude vibrations, delivering low-light and night-time imaging with no blur.

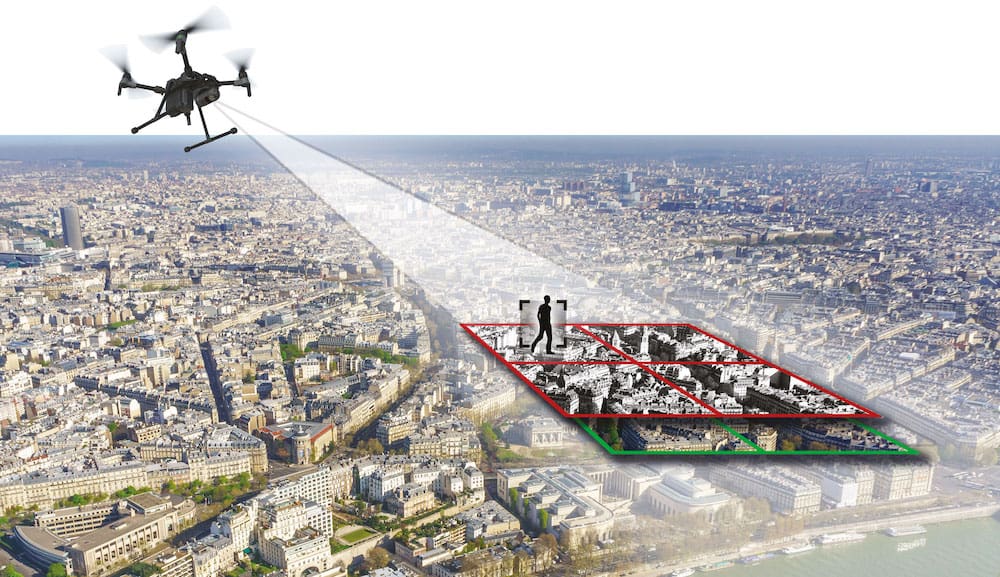

Velox provides high-speed step and stare capabilities, and can produce a panoramic matrix of up to 10 x 5 tiles at six tiles per second for wide-area coverage. The payload is controlled via MAVLink, and can output h.264-compliant video on up to three ports simultaneously.
|Dimensions (D x H)||70 x 126 mm (2.7 x 3.7”)|
12 MP, 8x Continuous Digital Zoom
iFOV: 130 μrad
FOV Levels: 30° WFOV to 5° DFOV
OPGAL XS-VA 640x480
iFOV: 500 μrad
FOV Levels: 16.9 x 12.9
|Range of Motion||
Azimuth: -174° to +174°
Tilt: +30° to -110°
EO: 1080p FHD or at 30fps, capable of 4K HD
IR: VGA at 25 fps
