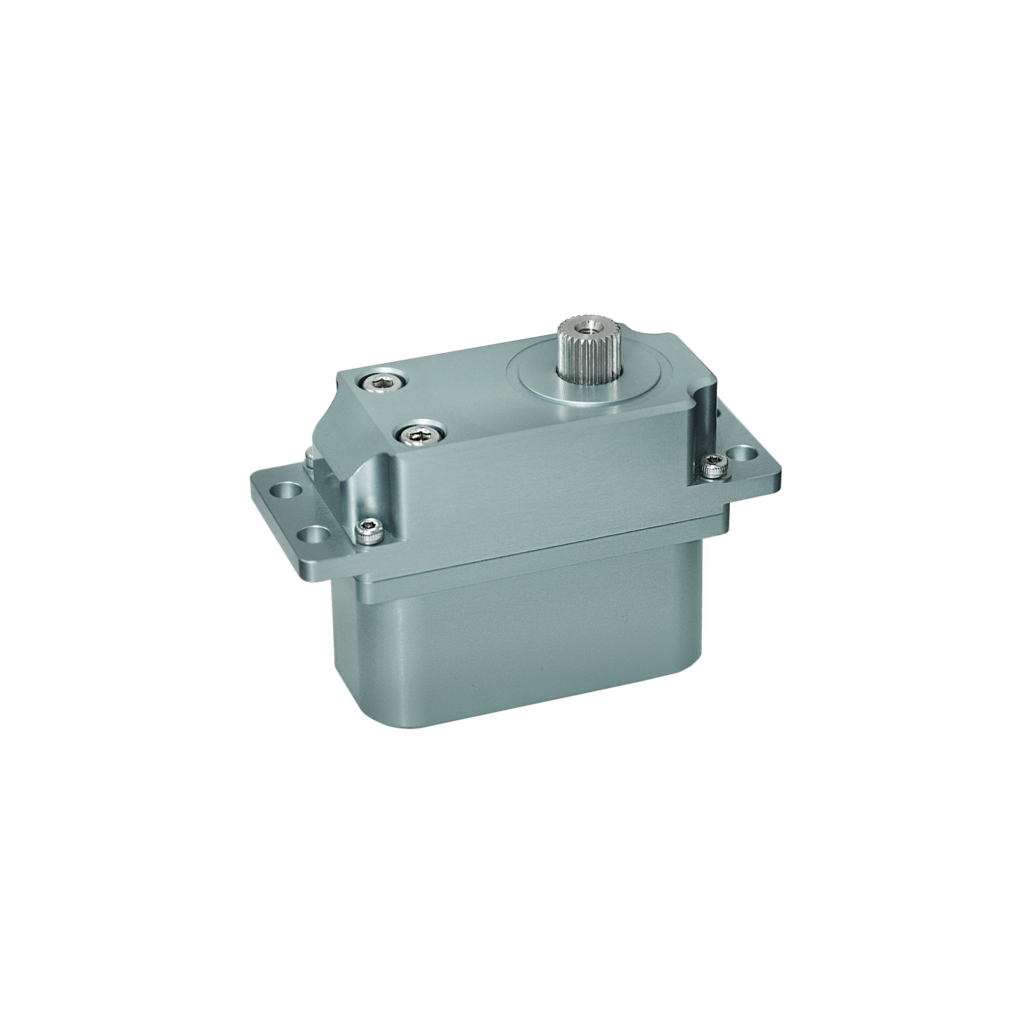

P500 Series (25mm) Actuator
The P500 Series of servo actuators delivers fast reaction times and instantaneous high levels of torque. It is ideal for applications such as unmanned helicopters that require rapid response for high-speed steering.
Specifications:
Case Dimensions | 50 x 25 x 40.55 mm |
Weight | 133.5 g |
Max Torque | 686 Ncm / 972 oz-in / 70 kg-cm |
Continuous Torque | 98 Ncm / 138.8 oz-in / 10 kg-cm |
Max Travel Angle (default) | 120 ± 0.5° |
Input Voltage Range | 9 – 15 VDC |
