Triple-Band Helical GNSS Antennas
Maxtena triple-band GNSS antennas are designed for the GPS, GLONASS, Galileo and Beidou bands, and are ideal for high-performance positioning for drones, robotics and autonomous vehicles.
Designed using patented Helicore technology, the antennas optimize key characteristics such as pattern, polarization purity, and efficiency, featuring smaller and lighter footprints than traditional ceramic-based solutions.
The antennas feature rugged IP67-rated construction, with integrated active circuitry and filtering.
| Weight | Frequency | Gain | Mounting | |
| M7HCT-A-SMA | 25 g | L1/L2 GPS, GLONASS, Galileo, Beidou | Conducted 30 dB ±3 dB | Screw mount SMA |

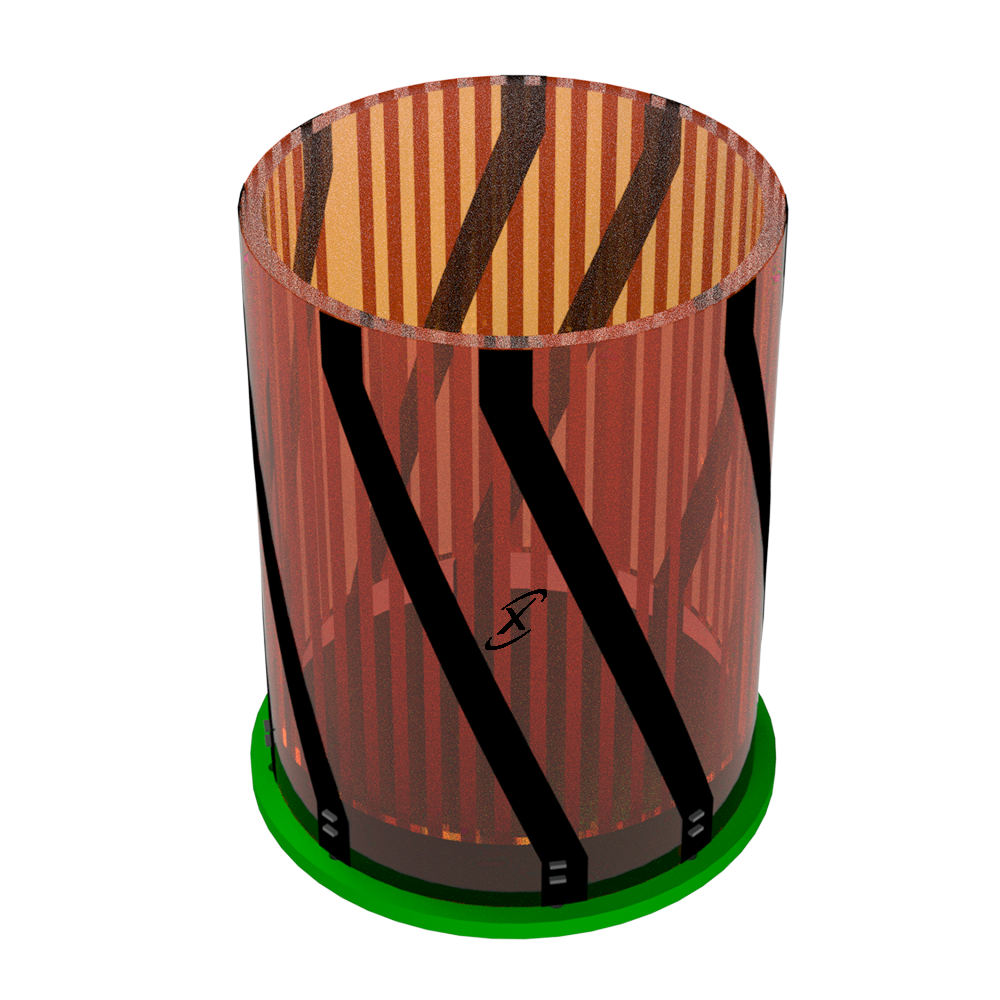

| M9HCT-A-EMB | L1/L2/L5 GPS, GLONASS, Galileo, Beidou L-band | Conducted 30 dB ±3 dB | Screw mount SMA | |

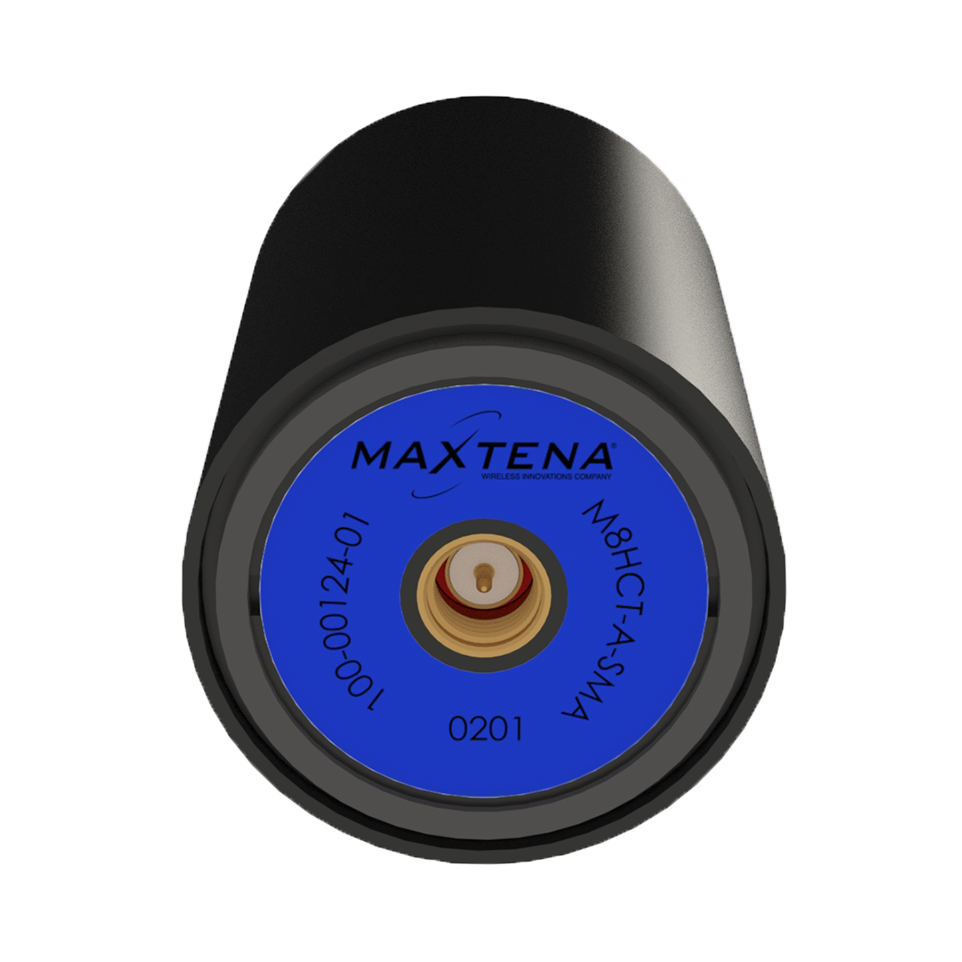

| M8HCT-A-SMA | 25 g | L1/L2/L5 GPS, GLONASS, Galileo, Beidou | Conducted 30 dB ±3 dB | Screw mount SMA |

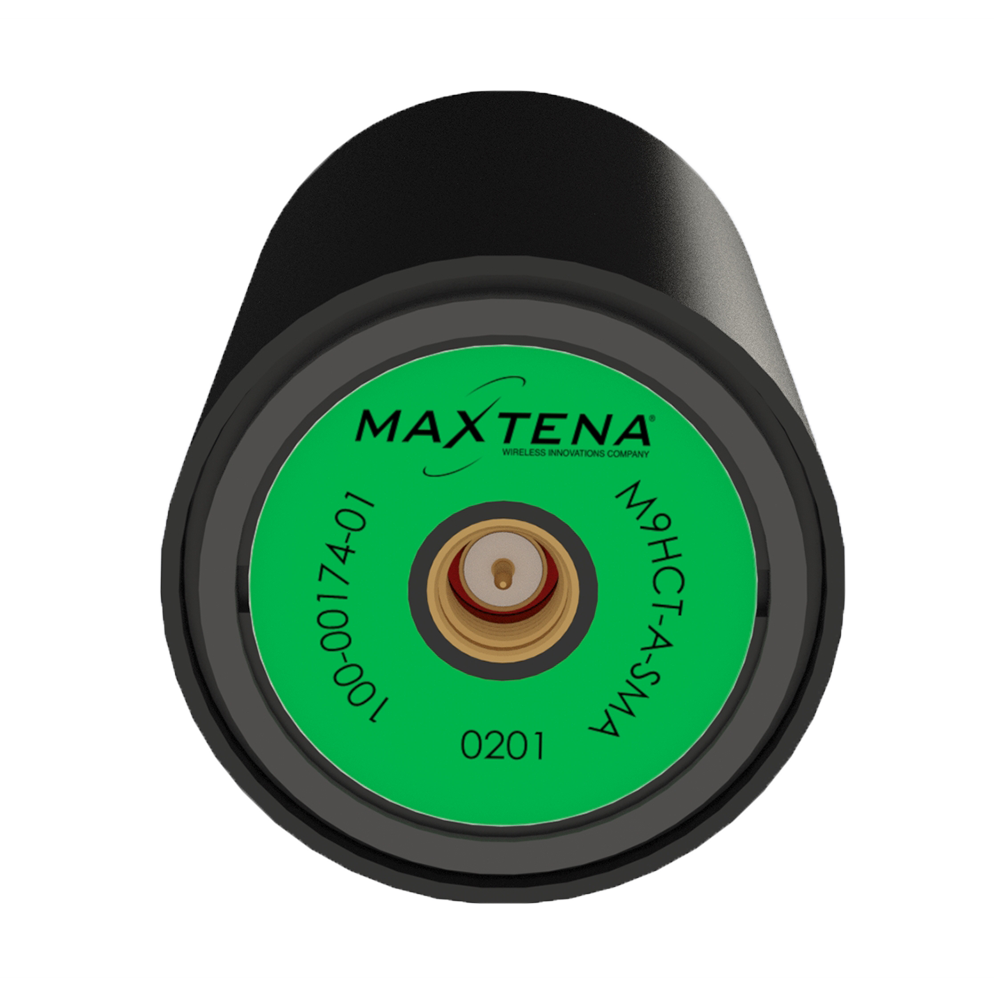

| M9HCT-A-SMA | L1/L2/L5 GPS, GLONASS, Galileo, Beidou L-band | Conducted 30 dB ±3 dB | Screw mount SMA | |

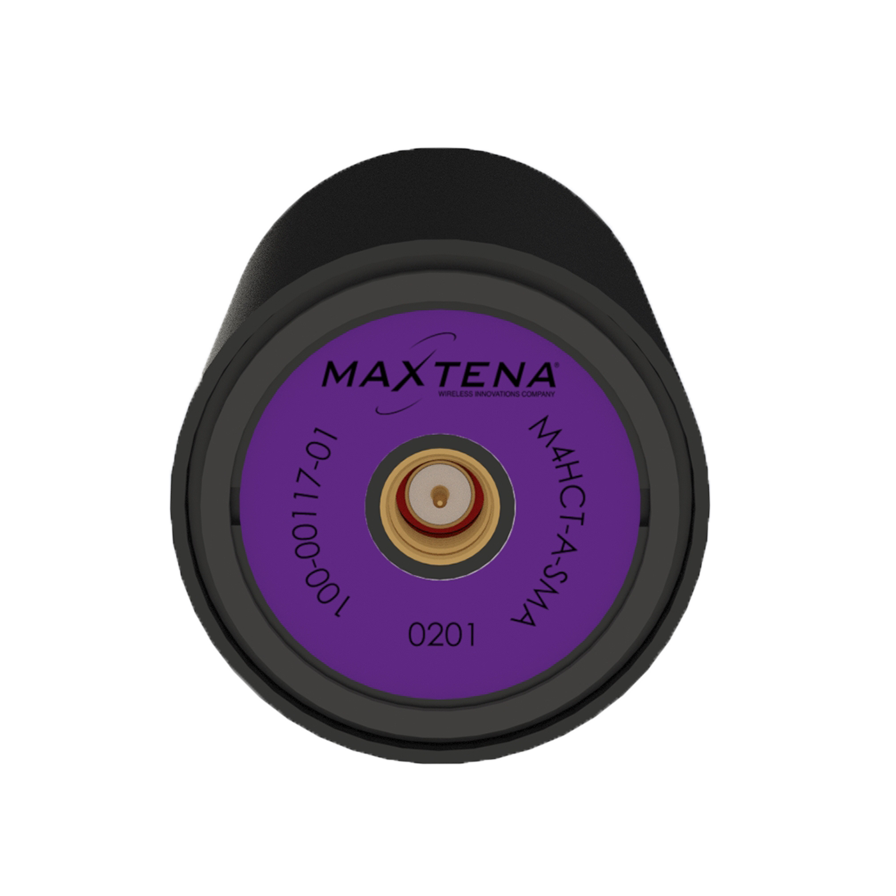

| M4HCT-A-SMA | 25 g | L1 GPS, GLONASS, Galileo, Beidou | Conducted 30 dB ±3 dB | Screw mount SMA |
| MEA-1227-MM | L1/L2 GPS, GLONASS |
Passive: -16.2 dB L1 -17.1 dB L2 Active: 28 dB @ 3V |
Magnet mount Cable with SMA/SMB/MCX | |
| MEA-1227-SM | L1/L2 GPS, GLONASS, Galileo, Beidou, SBAS |
Passive: 5.3 dB L1 3.4 dB L2 Active: 28 dB @ 3V |
Cable w/customizable connector | |

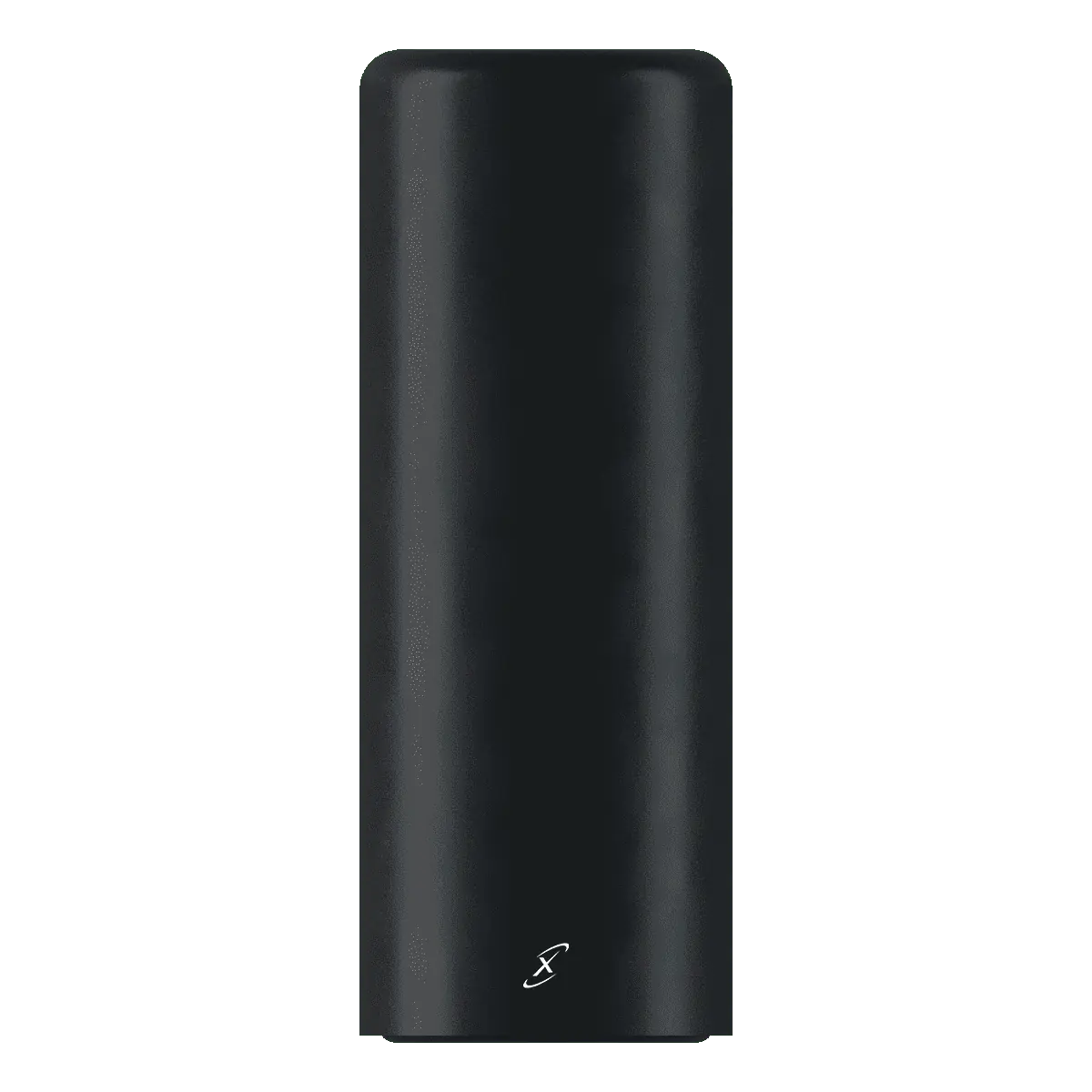

| M1580HCT-P-SMA |
1561 MHz (Beidou) 1575 MHz (GPS) 1602 MHz (Glonass) |
Peak: 1.3 dBic (Beidou) 1.8 dBic (GPS) -1.7 dBic (Glonass) |
Screw mount SMA |
