Triple-Band Conformal Wave Antennas

Maxtena conformal wave antennas provide full upper hemisphere coverage across all GNSS constellations and frequencies, featuring advanced material design that provides a number of advantages over traditional ceramic technology.

Delivering stable phase centre variations across all frequencies, superior rejection of cross-polarized signals and multipath components at low elevation angles, and excellent L-band corrections performance, these antennas are ideal for providing high-performance positioning for drones, robotics and autonomous vehicles.

Weight Frequency Gain Mounting

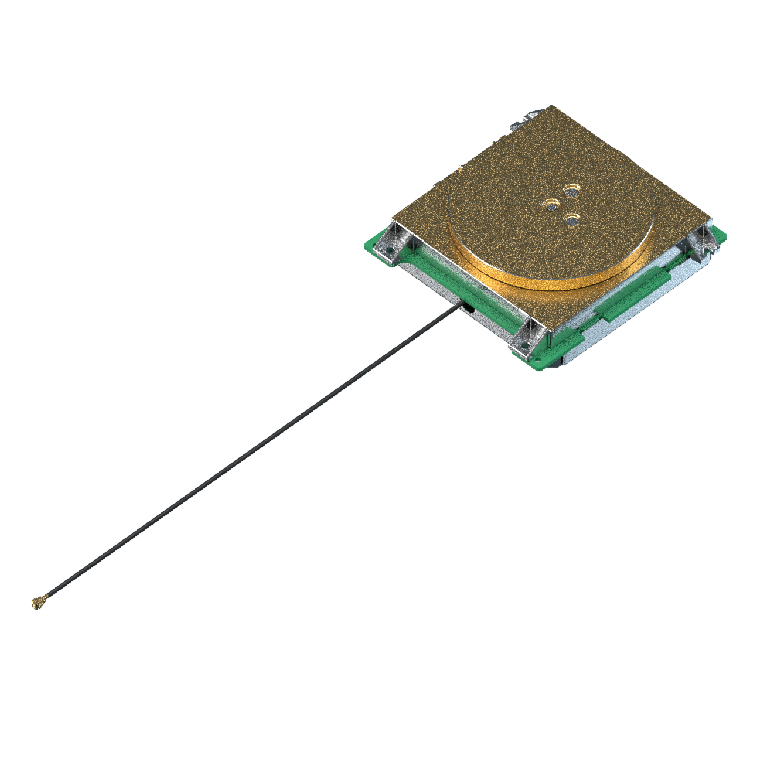

M9708CWT-UFL 80 g 1197-1249 MHz (L2, B2, G2, G3, E5B)
1559-1606 MHz (L1, E1, B1, B1-2, G1)
1164-1189 MHz (L5, E5A)
Realized:
2.6 dB 1197-1249 MHz
3.3 dB 1559-1606 MHz
-2 dB 1164-1189 MHz
Embedded

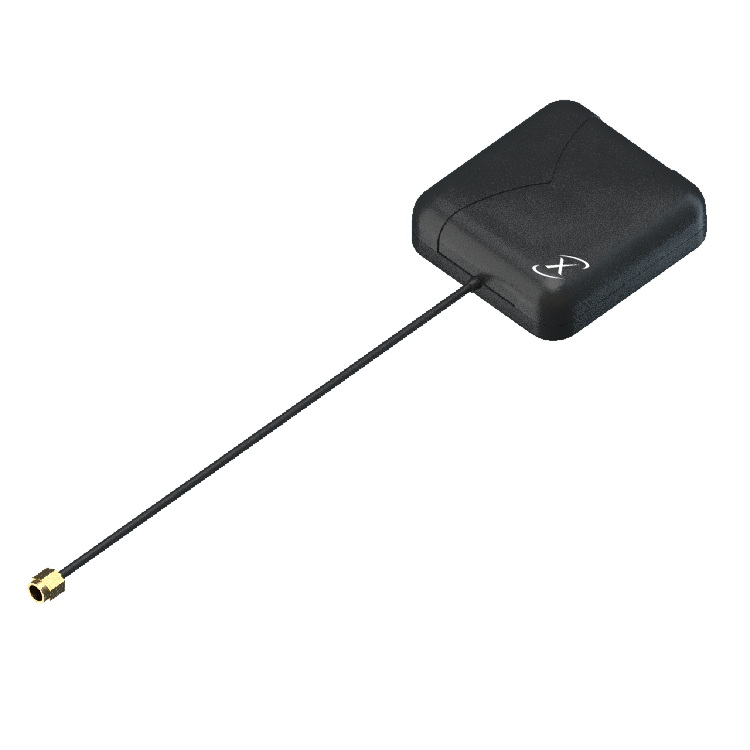

M9708CWT 230 g (w/ cable)
167 g (w/o cable)
1197-1249 MHz (L2, B2, G2, G3, E5B)
1559-1606 MHz (L1, E1, B1, B1-2, G1)
1164-1189 MHz (L5, E5A)
Realized:
2.6 dB 1197-1249 MHz
3.3 dB 1559-1606 MHz
-2 dB 1164-1189 MHz
Cable with SMA/SMB/MCX

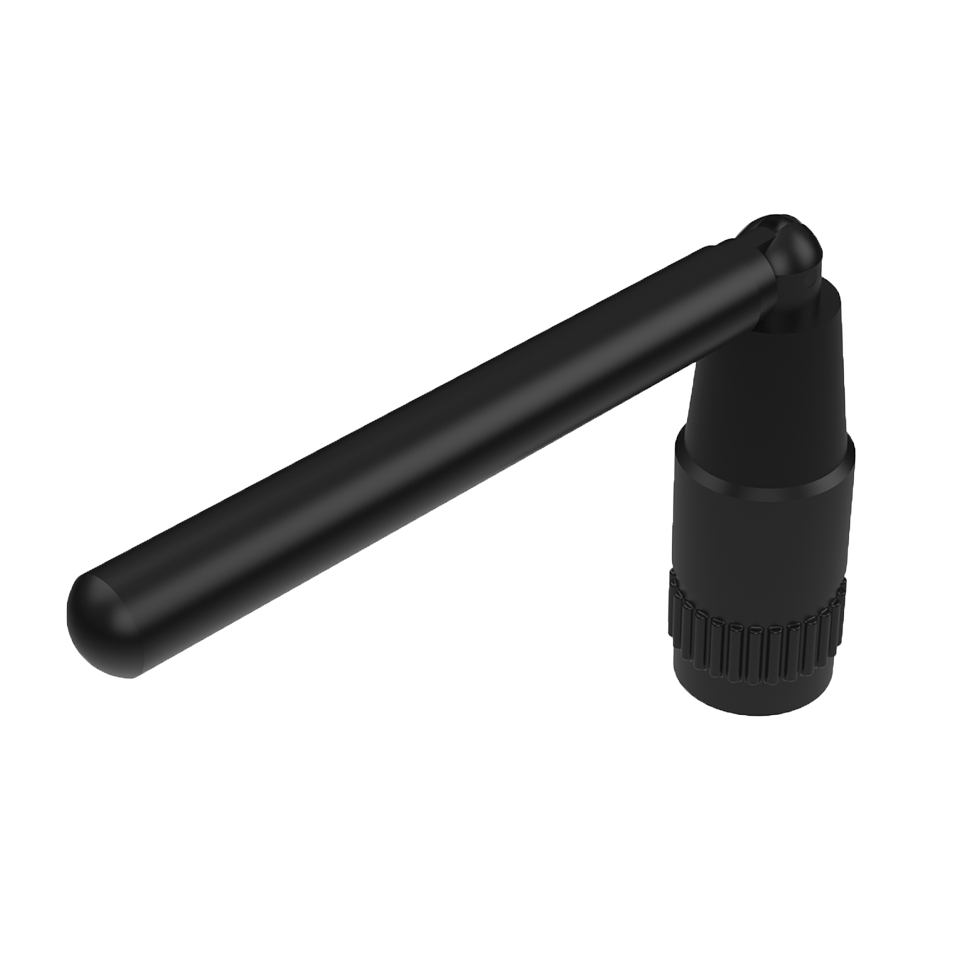

MEA-GGB-CM L1 & L2 Peak:
2.9 dBi BeiDou
2.8 dBi GPS/QZSS/Galileo
2.9 dBi GLONASS
SMA
