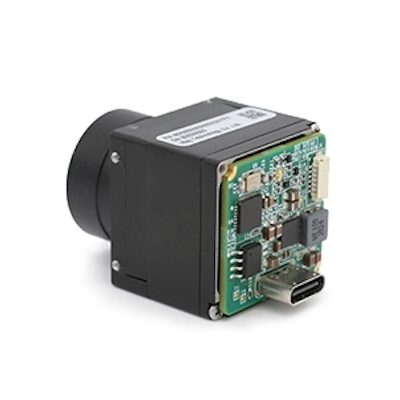

The Micro IIIS is a miniature thermographic camera module that delivers high-accuracy temperature data in a low-SWaP package. Weighing approximately 20 grams and with a volume of 26 x 26 x 22 mm, it is ideal for size- and weight-constrained UAVs, drones and robotic vehicles, with a low power consumption of less than 700 mW resulting in efficient heat dissipation.
iRay's fifth-generation intelligent image processing algorithm ensures that the Micro IIIS delivers extremely accurate temperature measurement data, with high sensitivity that ensures sharper detail and detection of targets at greater ranges.
With five different communications interfaces, the micro drone camera makes R&D, prototyping and production as easy as possible for systems integrators and OEMs. The Micro IIIS also provides six different temperature measurement modes, allowing users to carry out professional and comprehensive temperature analysis for a variety of different applications without missing any abnormal data points.
The Micro IIIS is available in image resolutions of 384×288 or 640×512 to suit a variety of thermal imaging requirements.
Specifications:
| Micro IIIS 384 |
Micro IIIS 384 (radiometric) |
Micro IIIS 640 |
Micro IIIS 640 (radiometric) |
|
| Dimensions |
26 x 26 x 22mm (without lens) |
26 x 26 x 22mm (without lens) |
26 x 26 x 22mm (without lens) |
26 x 26 x 22mm (without lens) |
| Weight |
20g±3g (without lens and expansion board) |
20g±3g (without lens and expansion board) |
20g±3g (without lens and expansion board) |
20g±3g (without lens and expansion board) |
| Resolution | 384 x 288 | 384 x 288 | 640 x 512 | 640 x 512 |
| Typical Power Consumption |
≤0.6W ≤0.8W with expansion board |
≤0.6W ≤0.8W with expansion board |
≤0.7W ≤0.9W with expansion board |
≤0.7W ≤0.9W with expansion board |
| Measurement Accuracy | Larger of ±3oC or ±3% of reading @ ambient temperature of -20~60oC | Larger of ±3oC or ±3% of reading @ ambient temperature of -20~60oC | Larger of ±3oC or ±3% of reading @ ambient temperature of -20~60oC | Larger of ±3oC or ±3% of reading @ ambient temperature of -20~60oC |
| Frame Rate | 25/50 Hz | 25/50 Hz | 25/50 Hz | 25/50 Hz |
| Spectral Range | 8～14μm | 8～14μm | 8～14μm | 8～14μm |
