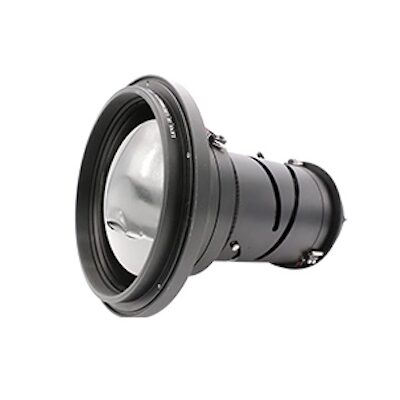

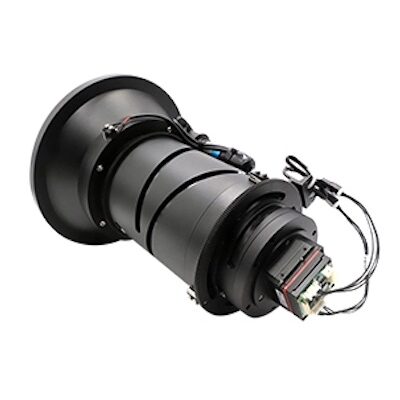

The FT II is a long-wave infrared camera module based around a 12 μm ceramic-package detector and compatible with a range of different lenses, including fixed focus and continuous zooming. Thanks to next-generation imaging algorithms, it provides excellent image quality for detection of smaller targets even under highly challenging conditions.
The module supports black-hot/white-hot and 18-colour palettes, and temperature measurement can be integrated with high-temperature warnings and fire alarm functions, with response times of 0.2 seconds or less.
The FT II provides a range of different external video interfaces, including BT.656, BT.1120, LVDS, LVCOMS, USB, Cameralink, HDMI, and analog. It is available in four different image resolutions to suit a variety of thermal imaging requirements.
Specifications:
FTII384 | FTII640 | FTII1024 | FTII1280 | |
Dimensions |
44.5x43 mm (digital) 49.5x50 mm (Ethernet) |
44.5x43 mm (digital) 49.5x50 mm (Ethernet) |
45x45 mm | 55x55 mm |
Weight |
80±10g (digital) 161±10g (Ethernet) |
80±10g (digital) 161±10g (Ethernet) |
102±10g (digital) 180±10g (Ethernet) |
168±10g (digital) 220±10g (Ethernet) |
Resolution | 384 x 288 | 640 x 512 | 1024x768 | 1280x1024 |
Typical Power Consumption |
<1.8W (digital) <2.4W (Ethernet) |
<2.2W (digital) <2.9W (Ethernet) |
<2.4W (digital) <3.0W (Ethernet) |
<2.6W (digital) <3.8W (Ethernet) |
Frame Rate | 50 Hz | 50 Hz | 30 Hz | 30 Hz |
Spectral Range | 8~14μm | 8~14μm | 8~14μm | 8~14μm |
