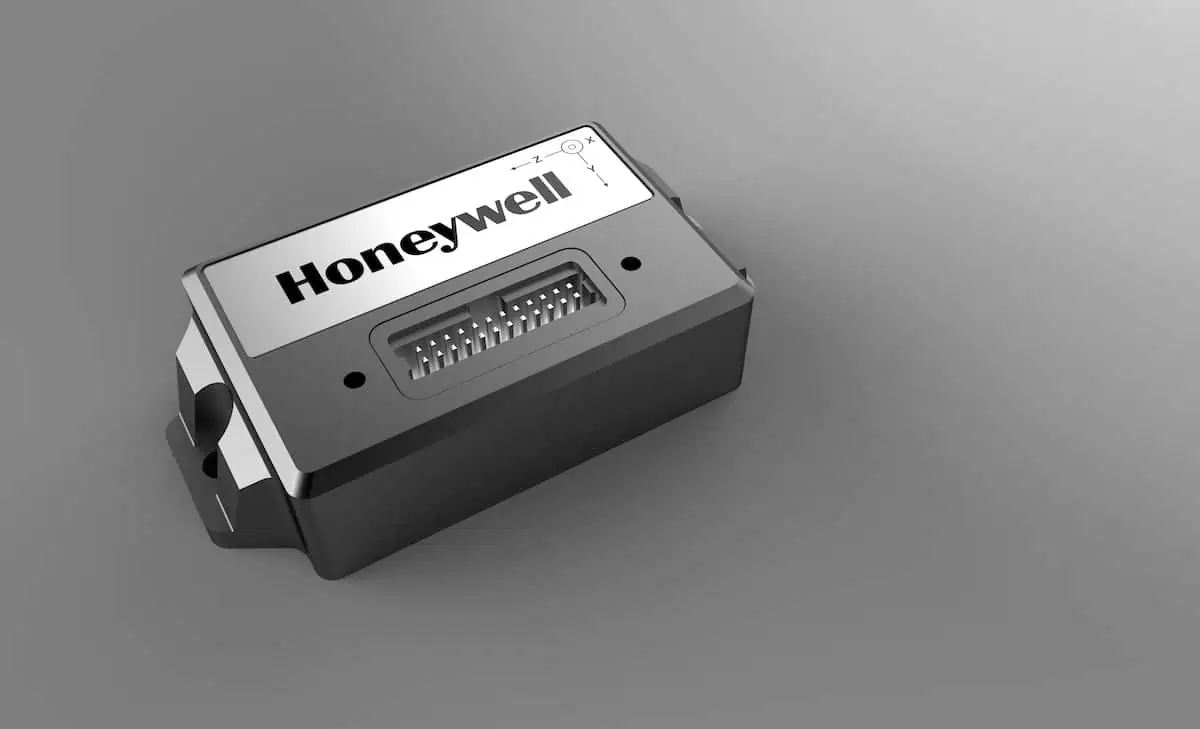

HGuide i300 IMU

The HGuide i300 is a high-performance MEMS IMU that is designed to meet the requirements of a wide range of unmanned systems applications, including UAVs, UGVs, AUVs and other robotic vehicles. With an extremely low SWaP (size, weight and power) footprint and a wide input voltage range, it can be easily integrated into many different platforms and designs.

The rugged sensor solution incorporates state-of-the-art calibration and compensation, and features a proprietary internal environmental isolation system for attenuation of unwanted inputs. User-configurable options include filtering, output data rates, and communication protocols.


i300BA50 i300AA50
Dimensions/Volume 42 x 28 x 14 mm/17 cm3 (1 in3) 42 x 28 x 14 mm/17 cm3 (1 in3)
Weight 35g 35g
Power 5 – 36 VDC, 0.5W 5 – 36 VDC, 0.5W
Gyro Range +/- 490 deg/s in all axes +/- 490 deg/s in all axes
Accelerometer Range ±16g in all axes ±16g in all axes
Gyro Bias Repeatability 65 o/hr 1σ 90 o/hr 1σ
Gyro Bias In-run Stability 3 o/hr 1σ 5 o/hr 1σ
ARW 0.15 o/√hr 0.25 o/√hr
Accel Bias Repeatability 1.0 mg 1σ 2.0 mg 1σ
Accel Bias In-run Stability 0.02 mg 1σ 0.03 mg 1σ
VRW 0.02 m/s/√hr 0.03 m/s/√hr
Communications Protocols RS-422, 5V TTL, CAN RS-422, 5V TTL, CAN
