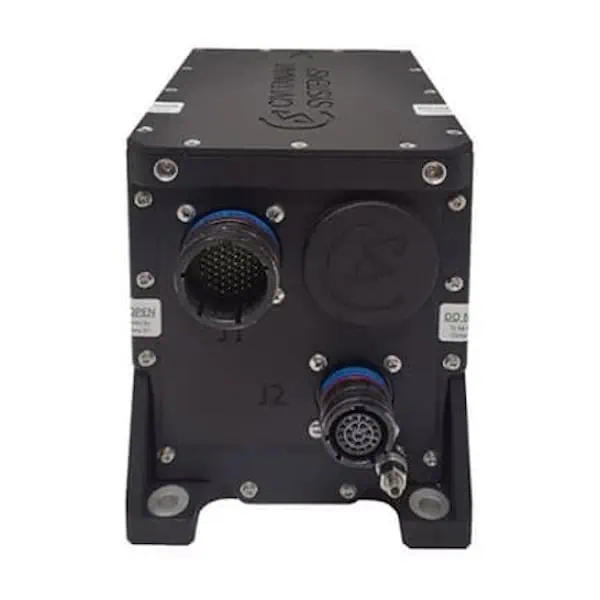

ARGO 500
The ARGO 500 series of Fiber Optic Gyro (FOG)-based inertial sensors is engineered for modern Fly-By-Wire (FBW) flight control applications, offering an optimized size, weight, power, and cost (SWaP-C) footprint. Designed for high-reliability airborne operations, the system meets DO-178C and DO-254 compliance standards for software and hardware.
Available in two configurations—an S-AHRS gyrocompass and an AHRS/IMU—the scalable ARGO 500 family supports a range of platforms, including helicopters, fast jet aircraft, and urban air mobility (UAM) vehicles.
Specifications:
| ARGO 510 | ARGO 520 | |
| Dimensions (W x H x D) | 106 x 126 x 178 mm | 106 x 126 x 178 mm |
| Weight | 2.5 kg | 2.5 kg |
| Power | 18 – 36 VDC, <15W (config dependent) | 18 – 36 VDC, <15W (config dependent) |
| True Heading Accuracy (95%) | 1° | N/A |
| Roll & Pitch Accuracy (95%) | 0.1° | 0.8° |
| Position Accuracy (95%) | 1 nm/15 min | N/A |
| Alignment Time: (data availability) | 5 mins | 30 sec |
