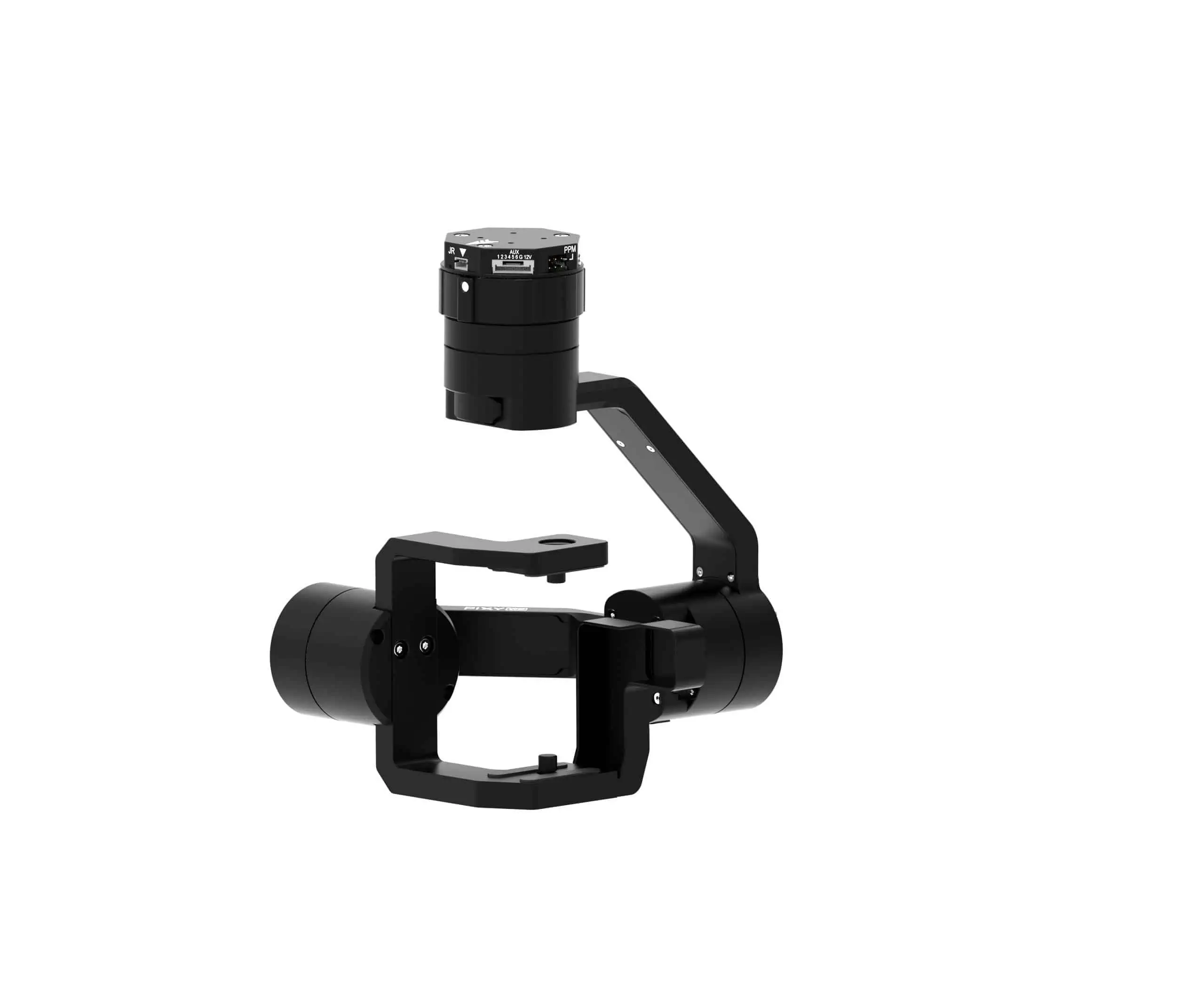

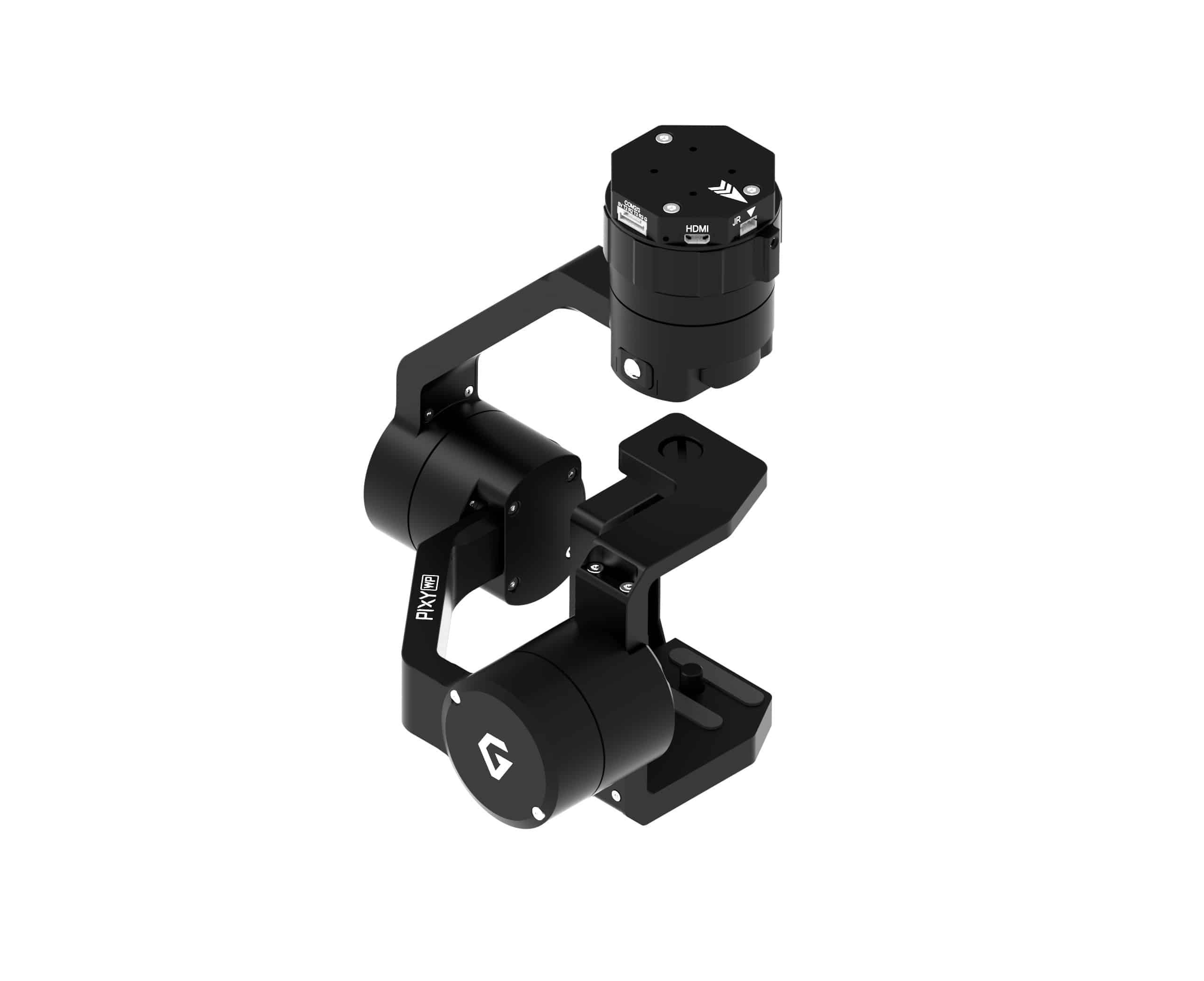

Pixy WP Industrial Drone Gimbal

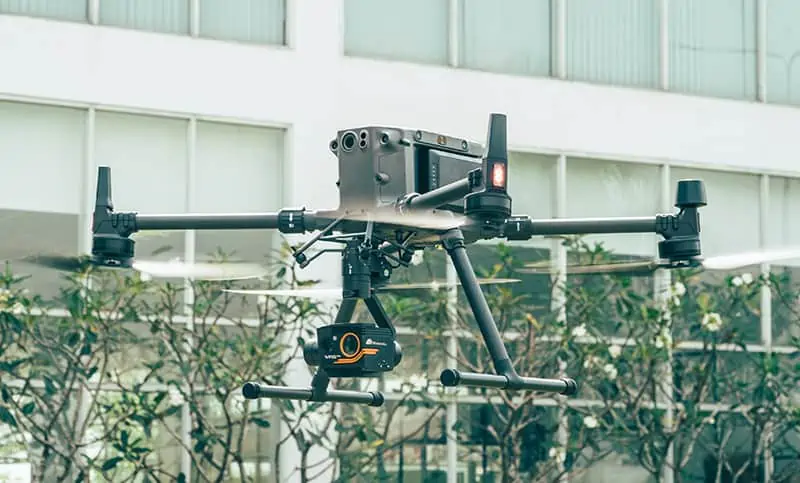

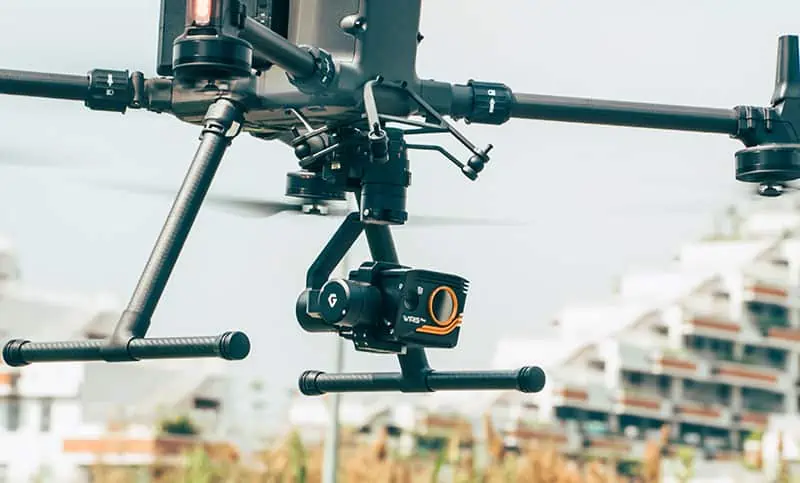

Pixy WP is the customized version of the Pixy series gimbal, tailored-made for Wiris Pro and Wiris Agro R to meet a range of commercial and industrial applications. Not just compatible with Pixhawk and DJI A3 FC, Pixy WP is well-built to support M300 RTK drone via using gPort, empowering users to leverage superior advantages in inspections, mapping, surveying, precision agriculture, and more.
No balancing nor tuning is required, Pixy WP gives you the superfast setup time within seconds, ready to plug and play with your drone easily.
| Dimensions (H x W x D) | 165 x 125 x 130 mm (gimbal) 64 x 85.7 x 38.4 mm (camera cage) |
| Weight | 1 lb (0.465 kg) |
| Maximum Controlled Rotation Speed | Pan axis: 100°/s Tilt axis: 100°/s Roll axis: 100°/s |
| Mechanical Endpoint Range | Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: +45° to -90° |
| Controlled Rotation Range | Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: ± 45° |
