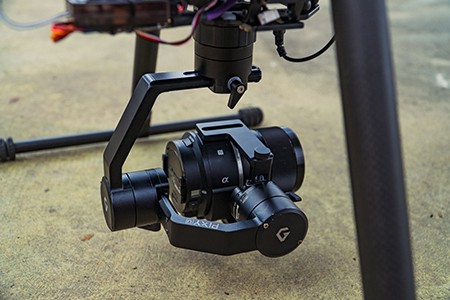

Pixy U Universal Drone Camera Gimbal
Inheriting the superior technology of Pixy series, Pixy U pushes the boundaries of what professionals can accomplish with a commercial gimbal. This compact stabilizer can carry universal dedicated cameras regardless of its modest size and one-pound optimized weight. Besides, Pixy U is fully Compatible with Pixhawk & DJI FC to support autonomous flight and camera control, making it a comprehensive solution for aerial survey, inspection, mapping, and so on.
Watch the Pixy U operate in mapping mode:
Specifications:
| Dimensions (H x W x D) | 200 x 143 x 112 mm (gimbal) 70 x 65.5 x 100 mm (camera cage) |
| Weight | 1 lb (0.465 kg) |
| Maximum Payload | 1 lb (0.465 kg) |
| Maximum Controlled Rotation Speed | Pan axis: 100°/s Tilt axis: 100°/s Roll axis: 100°/s |
| Mechanical Endpoint Range | Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: +45° to -90° |
| Controlled Rotation Range | Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: ± 45° |
