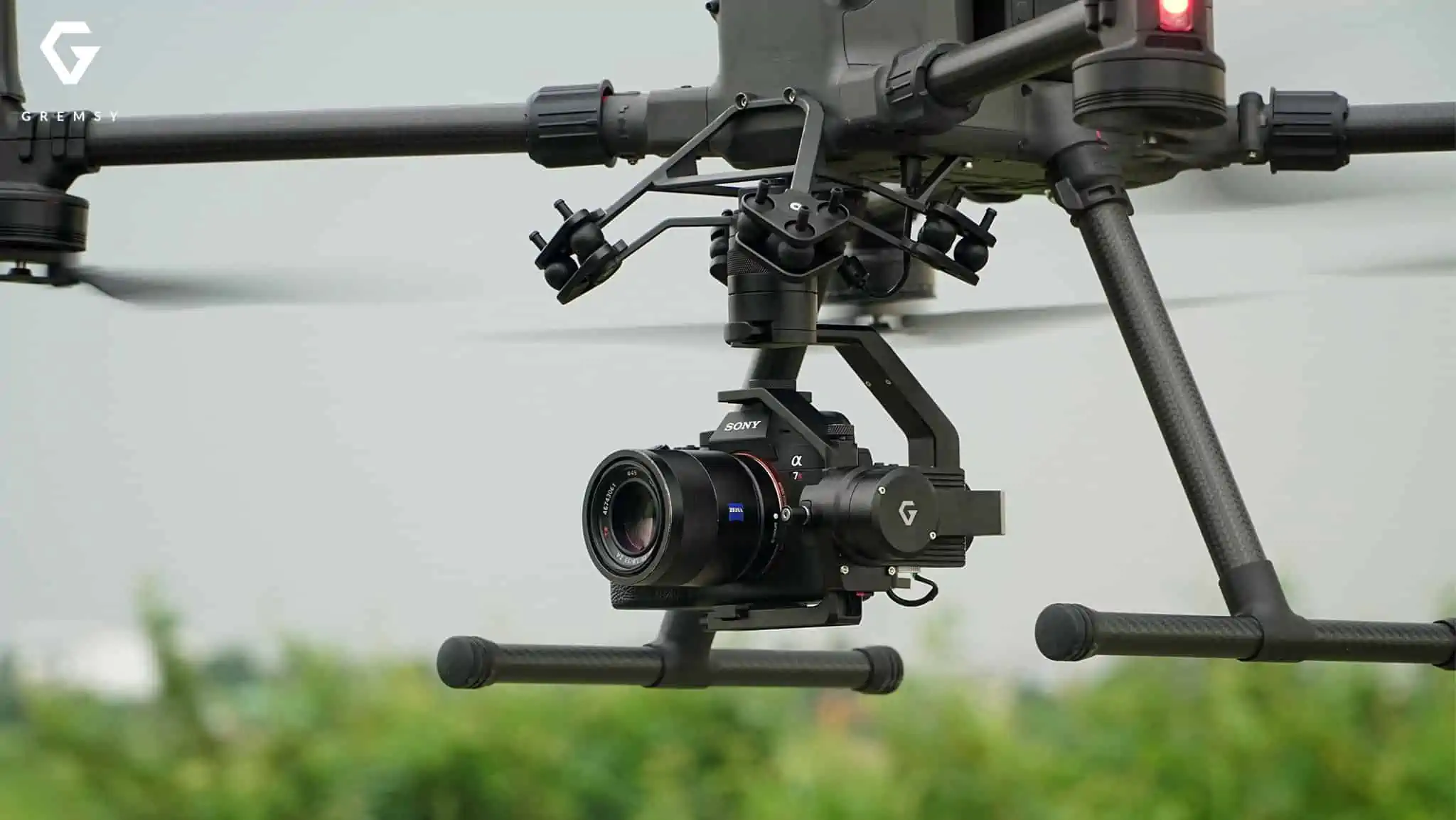

Pixy SM is specially designed to integrate the leading professional M300 RTK drone with the full-frame mirrorless Sony α7R IV camera, offering an unbeatable combination for precision aerial mapping missions. With Pixy SM, the most powerful drone and superior sensor are now perfectly combined for industrial operations, making your entire system clean and easy to deploy.
Pixy SM is optimized to work perfectly with the 61-megapixel Sony α7R IV, ensuring that you can get high-resolution imagery for creating accurate maps.
Taking photos & live streaming video from M300 RTK:

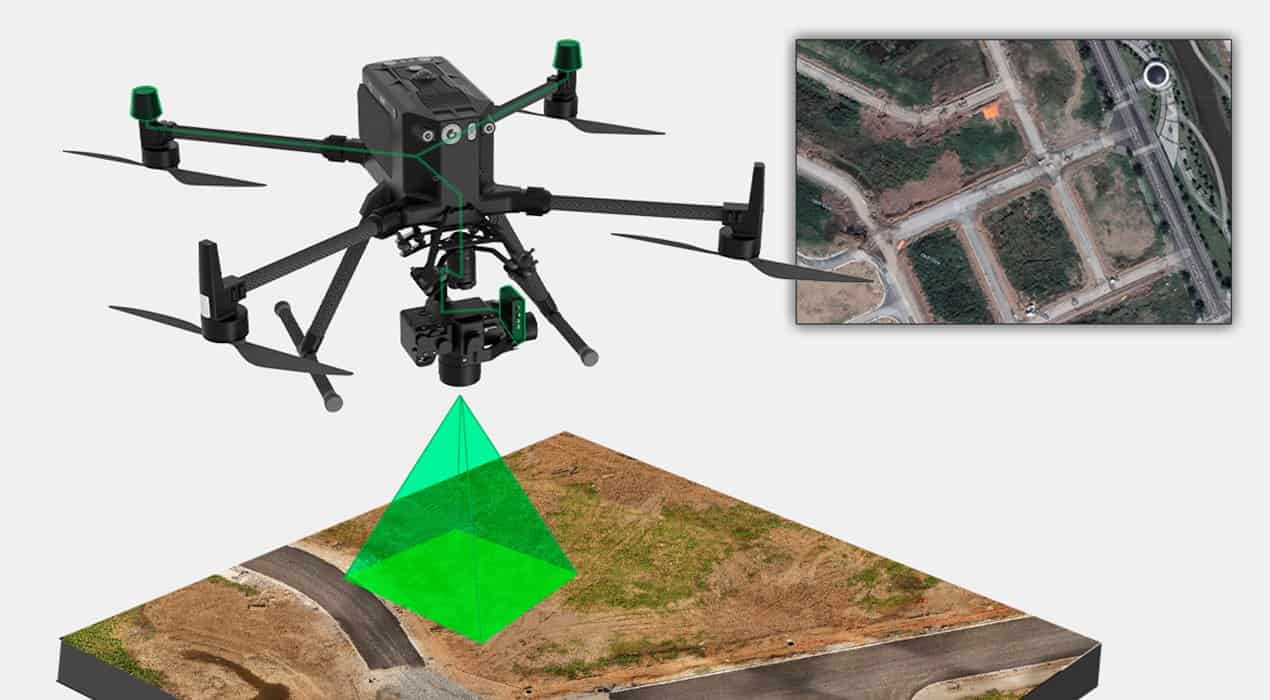

Automatic geotagging by GPS:
Specifications:
Dimensions (H x W x D)
190 x 147 x 157mm
Weight
1.26 lbs (0.57 kg)
Angular Vibration Range
± 0.02°
Maximum Controlled Rotation Speed
Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range
Pan axis control: +330° to -330°
Tilt axis control: +135° to -45°
Roll axis control: +25° to -90°
Controlled Rotation Range
Pan axis control: +160° to -160°
Tilt axis control: +135° to -45°
Roll axis control: ± 25°
