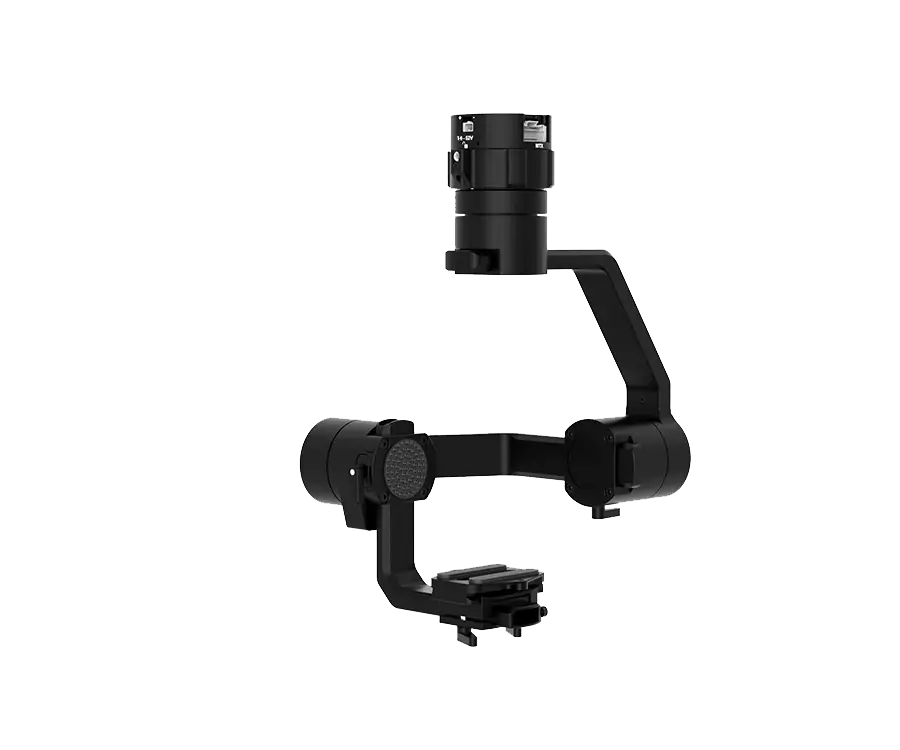

Mio is a next-generation 3-axis camera stabilizer for professional UAV systems and commercial and industrial applications. Weighing just 250g, it uses a simplified two-point contact design for easier setup while maintaining excellent stability and vibration resistance.

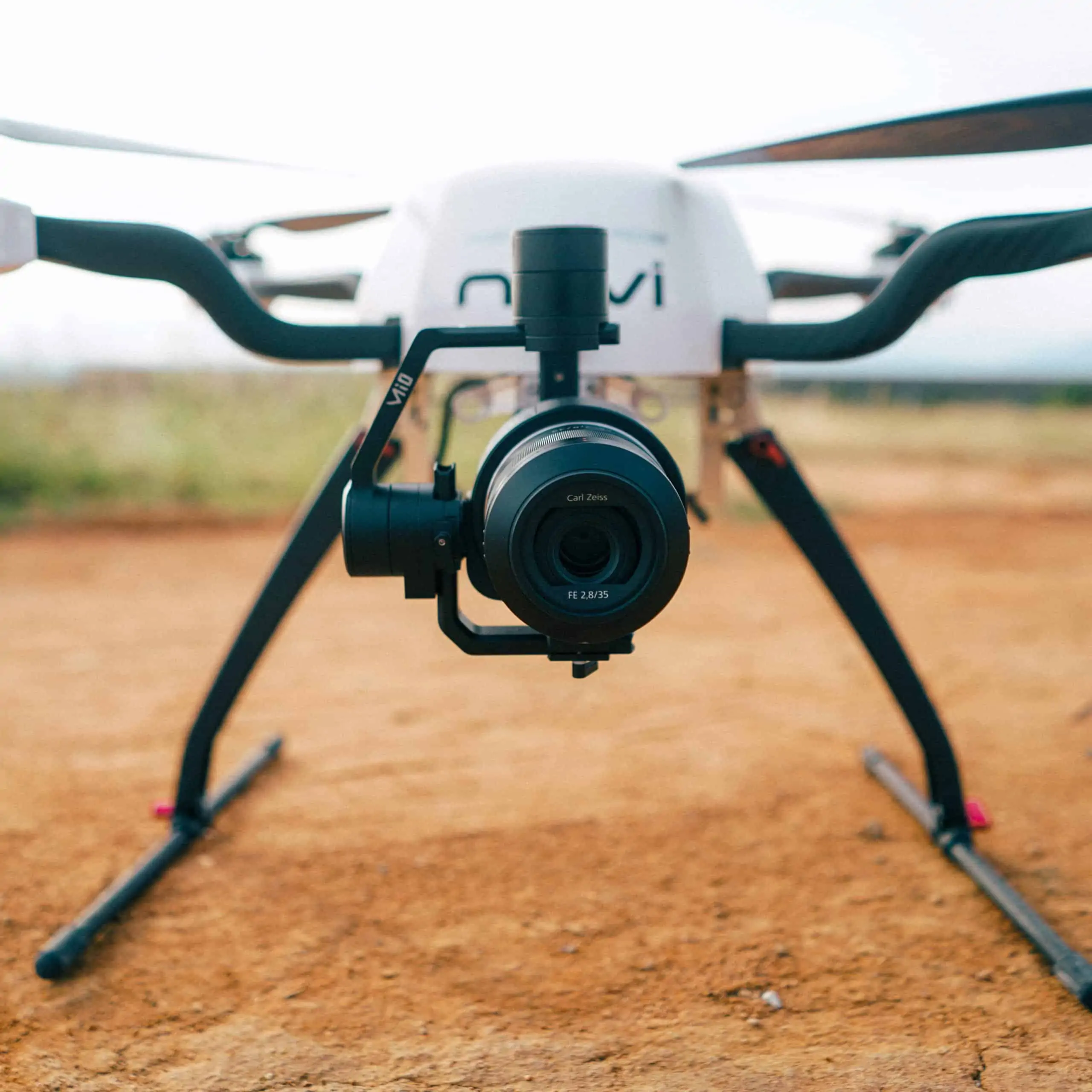

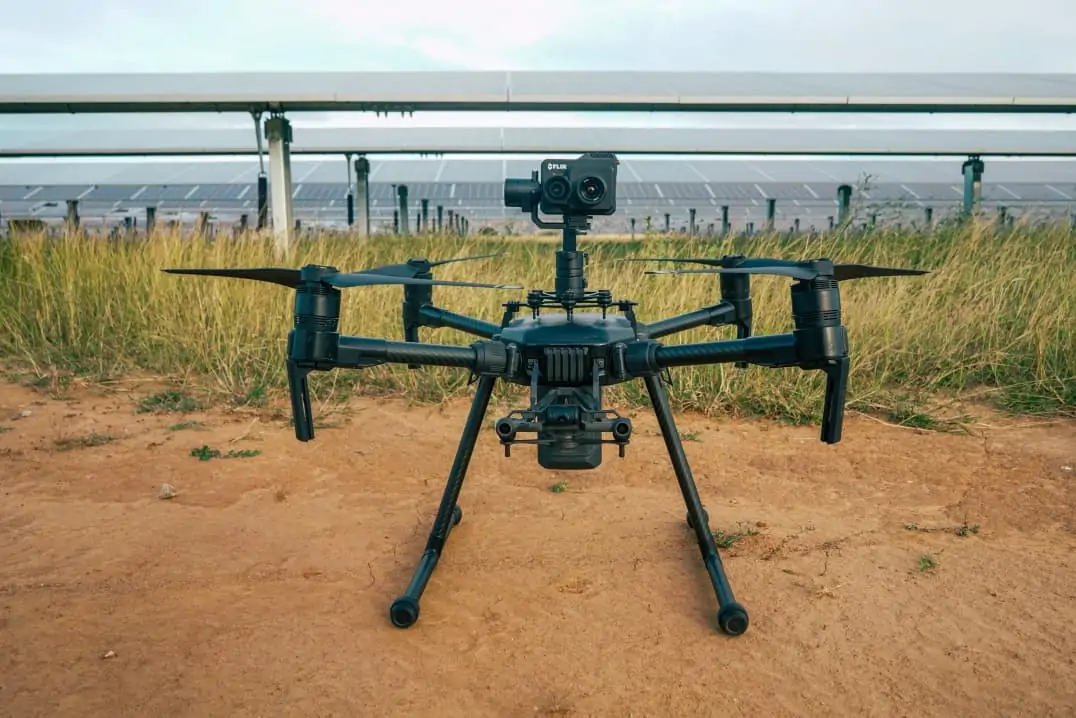

The compact gimbal supports cameras weighing up to 400g, including Sony mapping sensors, FLIR infrared sensors, and MicaSense RedEdge multispectral cameras. It can be mounted on the top, bottom, or front of a drone.
A quick-release design and single 20-pin connector support AUX, COM, CAN, SBUS, and PPM connections. The AUX port provides up to eight signals, including camera trigger and AV signals, for connection to external devices.
Specifications:
Dimensions (H x W x D)
175 x 99 x 120 mm (gimbal)
70 x 85 x 43 (camera cage)
Weight
0.55 lbs (250 g)
Maximum Payload
0.88 lbs (400g)
Maximum Controlled Rotation Speed
Pan axis: 100°/s
Tilt axis: 100°/s
Roll axis: 100°/s
Mechanical Endpoint Range
Pan axis control: ±338°
Tilt axis control: -200° to +135°
Roll axis control: -265° to +75°
Controlled Rotation Range
Pan axis control: ±325°
Tilt axis control: ± 120°
Roll axis control: ± 40°
