Bayonet 350 Amphibious Crawler

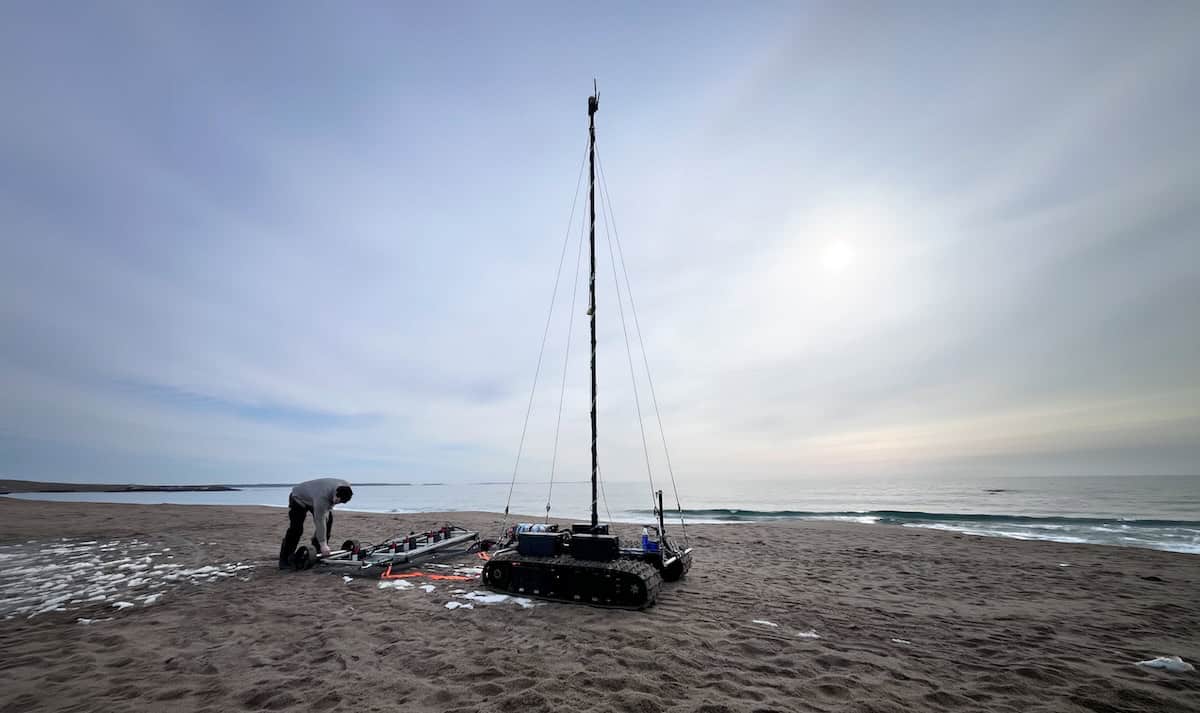

The Bayonet 350 is a rugged amphibious crawler designed for land and undersea operations in a range of challenging conditions. Designed to be two-person-portable and one-person-operable, it can be programmed for fully autonomous operation or controlled via tether or RF link buoy.

The subsea crawler utilises a fusion of single or dual RTK-capable GNSS receivers with advanced inertial navigation to provide precise navigation even when submerged. The built-in inclinometer and pressure sensor deliver high-accuracy depth measurements.

The Bayonet 350 can be equipped with a variety of sensor and payload packages, and custom integrations can also be performed.

Specifications:

Dimensions: 5 x 6 x 1 ft
Weight (With Batteries): 600 lbs
Range: 38km+ @ 1.8km/hr
64km+ at slower speeds
Deck Capacity: 350 lbs (159kg)
Plow Depth: 6 in to 2 ft (0.15 to 0.6m)
