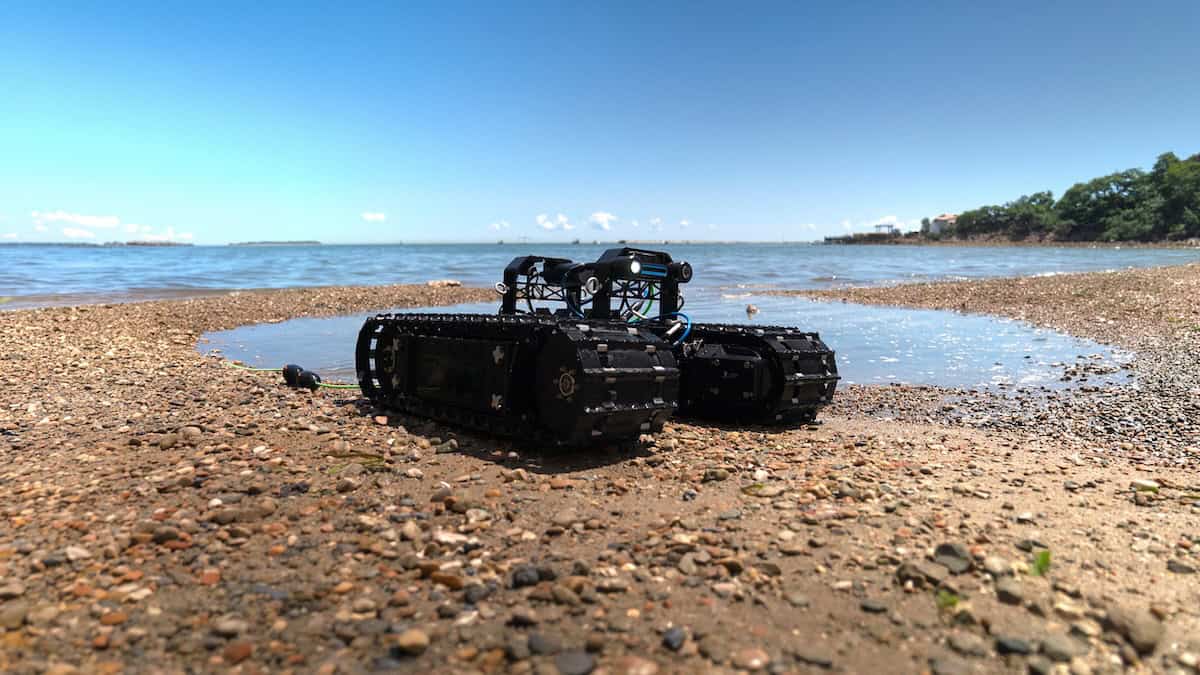

Bayonet 150 Amphibious Crawler
The Bayonet 150 is a rugged amphibious crawler designed for land and undersea operations in a range of challenging conditions. Designed to be one-person-portable and operable, it can be programmed for fully autonomous operation or controlled via tether or RF link buoy.
The subsea crawler utilises a fusion of single or dual RTK-capable GNSS receivers with advanced inertial navigation to provide precise navigation even when submerged. The built-in inclinometer and pressure sensor deliver high-accuracy depth measurements.
The Bayonet 150 can be equipped with a variety of sensor and payload packages, and custom integrations can also be performed.
Specifications:
| Dimensions: | 33 x 20 x 10 inches |
| Standard Open Deck Space: | 24 x 6 inches |
| Weight (With Batteries): | 125 lbs |
| Range (dry/wet): | 22 miles / 10 miles |
| Deck Capacity: | 150 lbs (68kg) |
| Ground Pressure (dry/wet) | 0.15 psi / 0.08 psi |
| Power Available: | 5V (500mA), 12V (3A), 24V (3A), 48V |
| I/O: | 2x RS232 1x RS485 2x non-isolated analog input 2x non-isolated analog output 2x isolated digital input 2x isolated digital output 4x Ethernet |
