The GPS 24xd HVS is a high-precision navigation solution that delivers accurate location and heading data to marine displays and autopilots, utilizing GPS, Galileo, GLONASS and BeiDou. The robust system provides location accuracy to within 1 metre and heading accuracy to within 3 degrees, and also features multi-SBAS compatibility for correction of signal measurement errors.

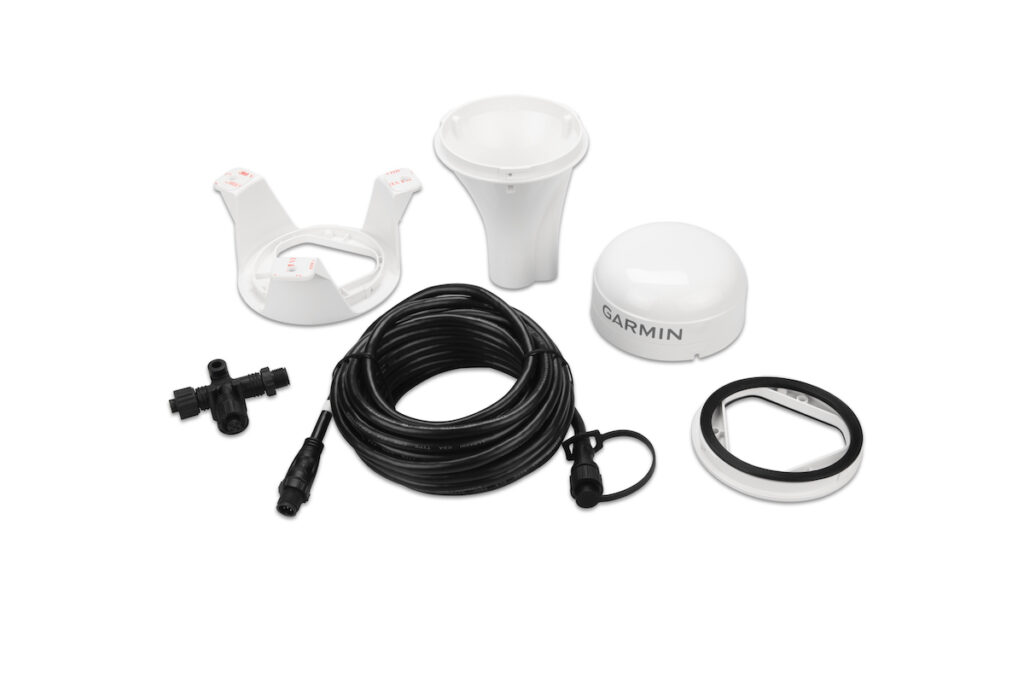

The IPX7 water-resistant 24xd HVS GPS is compatible with NMEA 0183 devices, and provides position updates at a rapid 10 Hz for high-sensitivity applications. The system can be easily installed on a wide range of vessels, with a choice of under-deck, pole and surface-mount options.
|Dimensions (D x H)||91.6 x 49.5 mm|
|Typical Position Accuracy||< 50 cm, CEP 50%
< 1.0 m, 88%
|Input Power||8-33 VDC
150 mA at 12 VDC
|Operating Temperature||-30° to 80° C|
