FOG IMU U183(M)

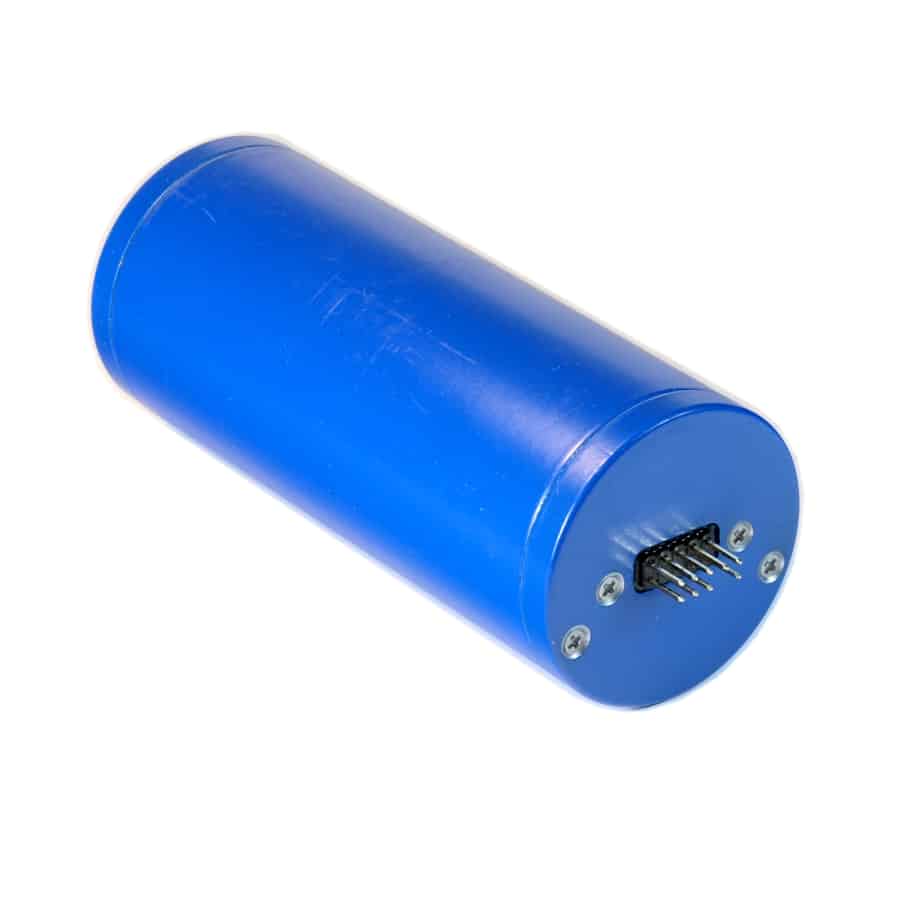

The U183 is a FOG-based inertial measurement unit (IMU) with an ultra-compact cylindrical form factor. Featuring three FOGs and three MEMS accelerometers, it delivers low noise performance and includes a fully-integrated ADC board with RS422 serial communications. The unit is available in either aluminium or μ-metal housing.
The miniature non-ITAR IMU is ideal for a range of unmanned systems applications, including inertial navigation for UAVs, USVs and UUVs, and drone flight control.
| U183 | U183M | |
| Dimensions (mm) | dia 46 x 111 | dia 46 x 111 |
| Weight (grams) | 200 | 250 |
| Power (W) | 2W | 2W |
| Gyro Input Range (°/s) | 300 | 300 |
| Gyro Bias RMS (°/h) | 1 | 1 |
| Gyro ARW (°/√h) | 0.03 | 0.03 |
| Magnetic response (°/h/Gauss) | 3/0.1 (shielded) | 3/0.1 (shielded) |
| Acc. Range (g) | 10 | 10 |
| Acc. Bias Stability (mg) | 0.2 | 0.2 |
| Acc. Bandwidth (Hz) | 250 | 250 |
| Data rate (kHz) | 4 | 4 |
| Baud rate (kBd) | 921.6 | 921.6 |
| Vibration (g, RMS) | 6 | 6 |
| Shock Resistance (g) | 350 | 350 |
| Operating Temperature (°C) | -40 - +70 | -40 - +70 |
| Housing | Aluminium alloy | μ-metal |
