Veronte MEX Three-axis magnetometer for drones & autonomous vehicles
Veronte MEX

Three-axis magnetometer for drones & autonomous vehicles

Visit Website Contact
Saved
Save
Veronte MEX

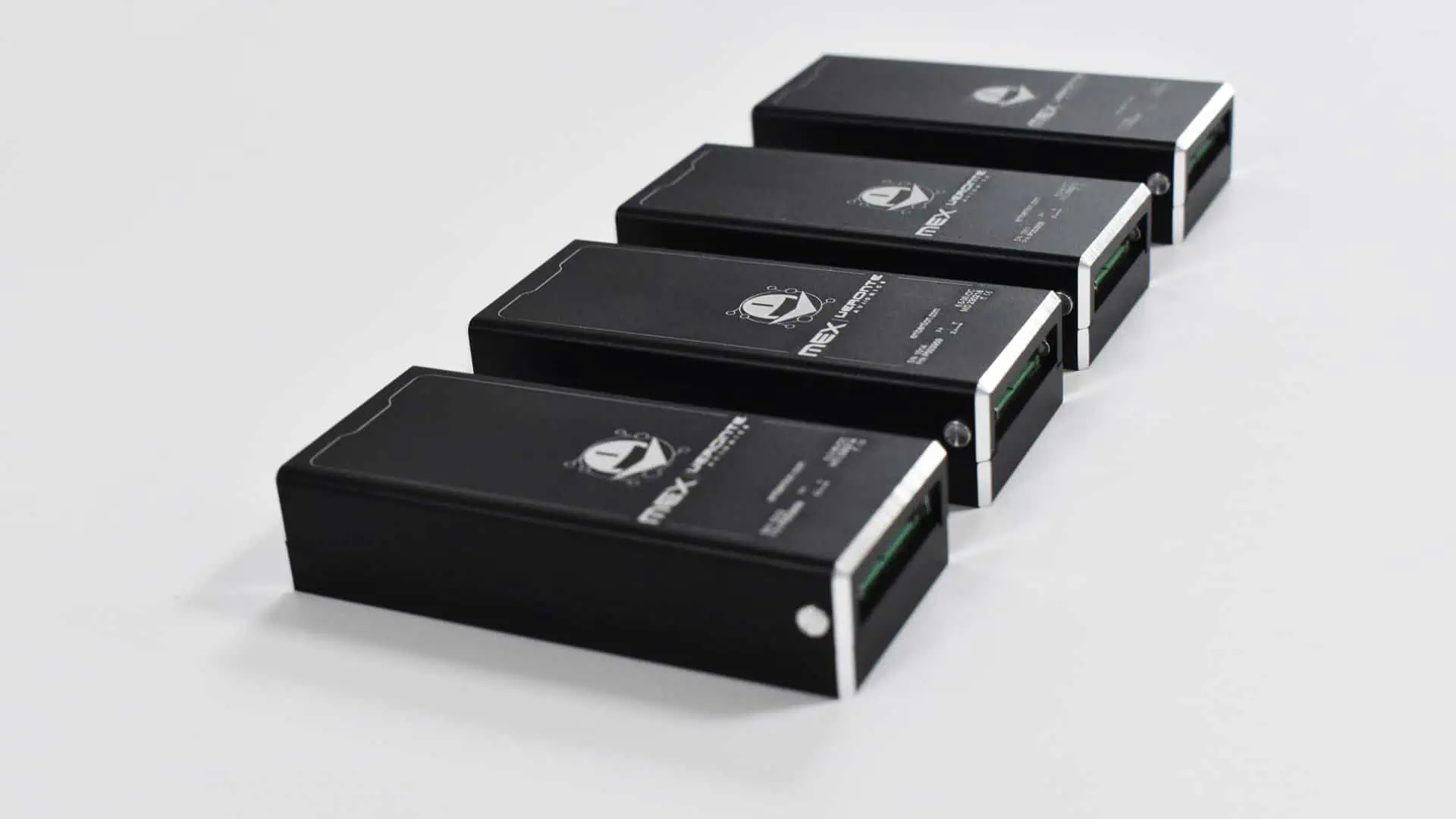

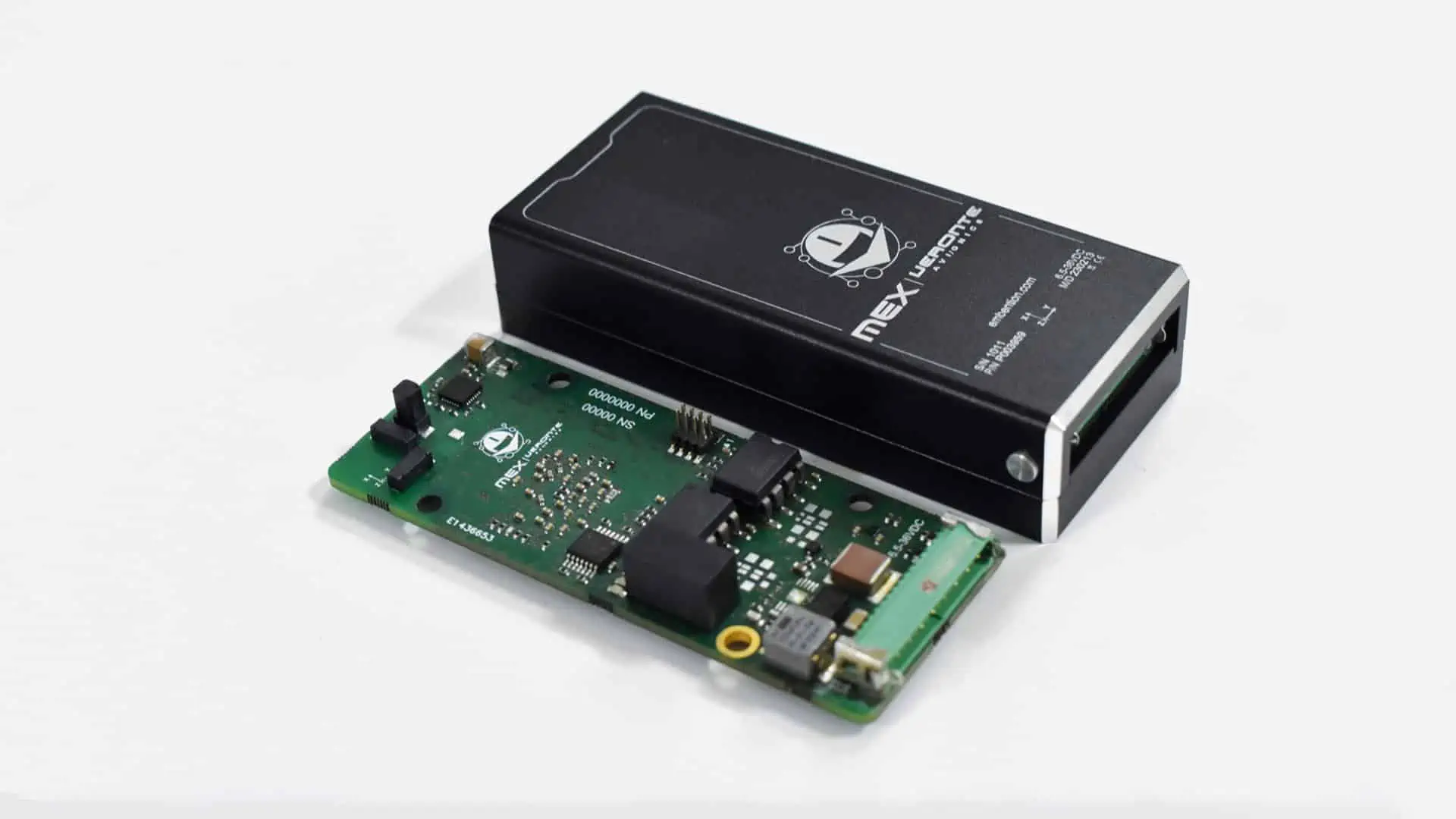

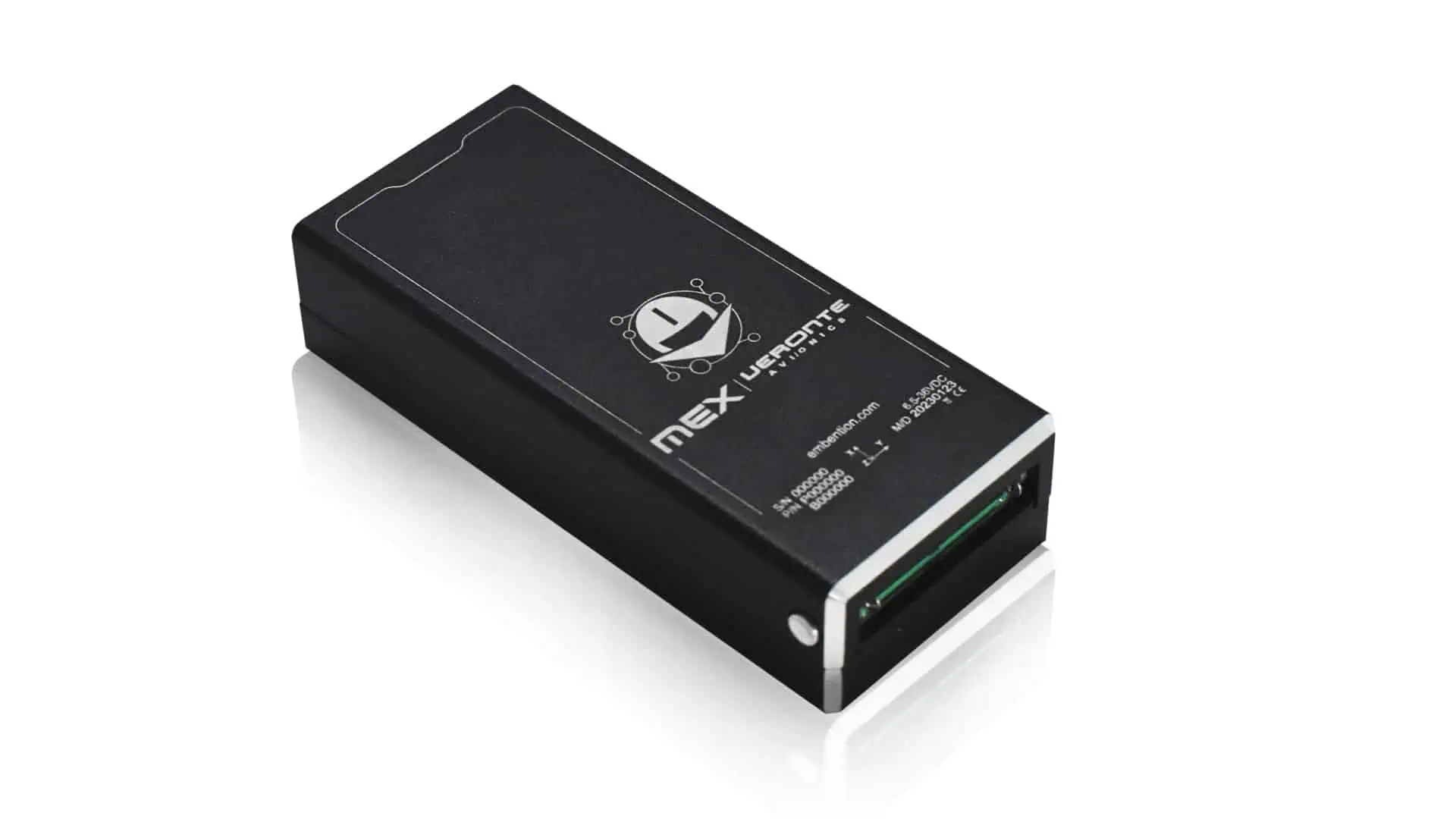

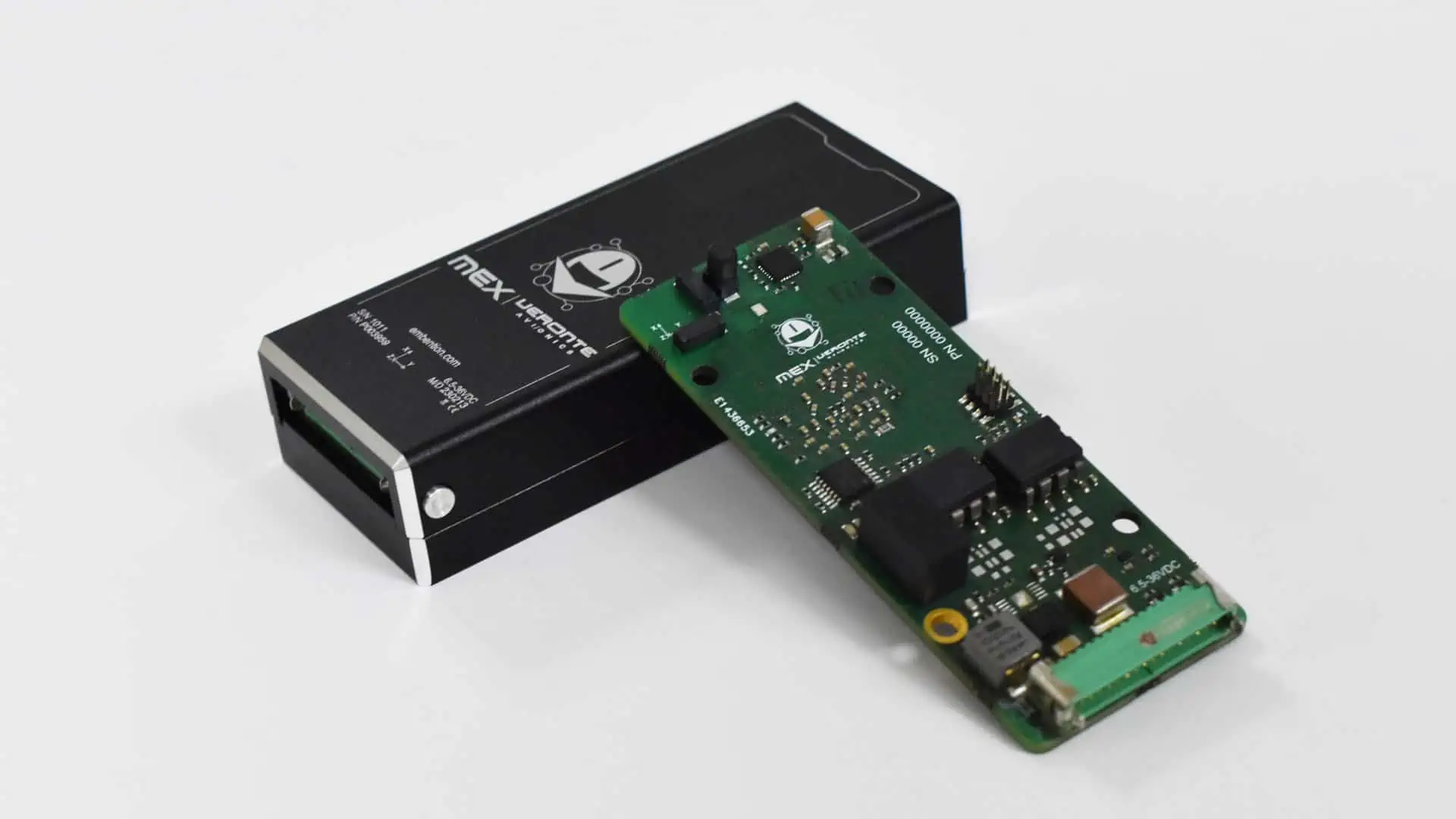

Veronte MEX is a three-axis magnetometer engineered to provide highly stable orientation references over both time and temperature for drones and unmanned systems. Designed as a drop-in replacement for the widely-used Honeywell RM-2300, it is available in a robust anodized aluminium enclosure or as a board-level OEM solution.

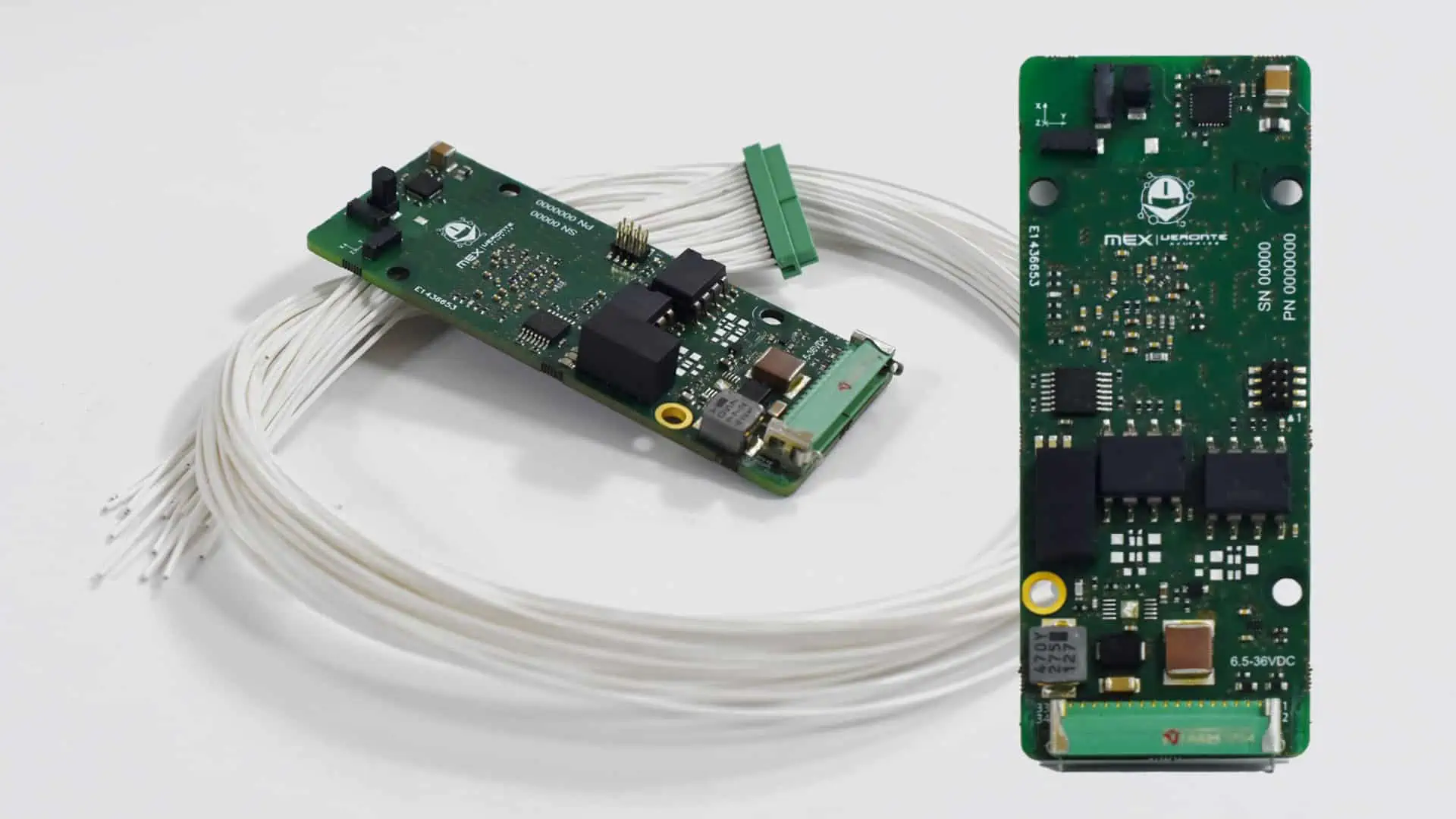

The low-SWaP magneto-inductive sensor features high resolution, dynamic range and sampling rates with excellent noise immunity. Measurements can be transmitted via RS-232/485 or CAN bus, and the rich I/O set enables multiple peripherals to be controlled by or interfaced with the unit, reducing the amount of cabling needed.

Veronte MEX has been designed to DO178C / ED-12 and DO254 aviation standards and tested to DO160 and MIL-STD-810.

Specifications:

Dimensions 83 x 38 x 19 mm (enclosure)
78 x 31 x 12 mm (OEM)
Weight 100 g (enclosure)
50 g (OEM)
Power Consumption 3W
I/O 2x isolated CAN bus
1x I2C digital bus
4x PWM 5VDC outputs
2x RS-232
1x full-duplex RS-485
2x digital ECAP 5V input
1x digital EQEP input
4x analog inputs (5V, 5V, 12V, 36V)
