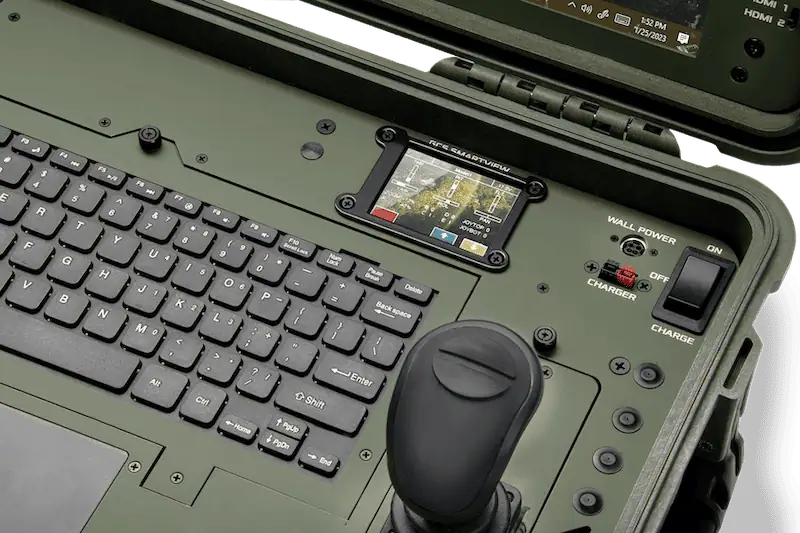

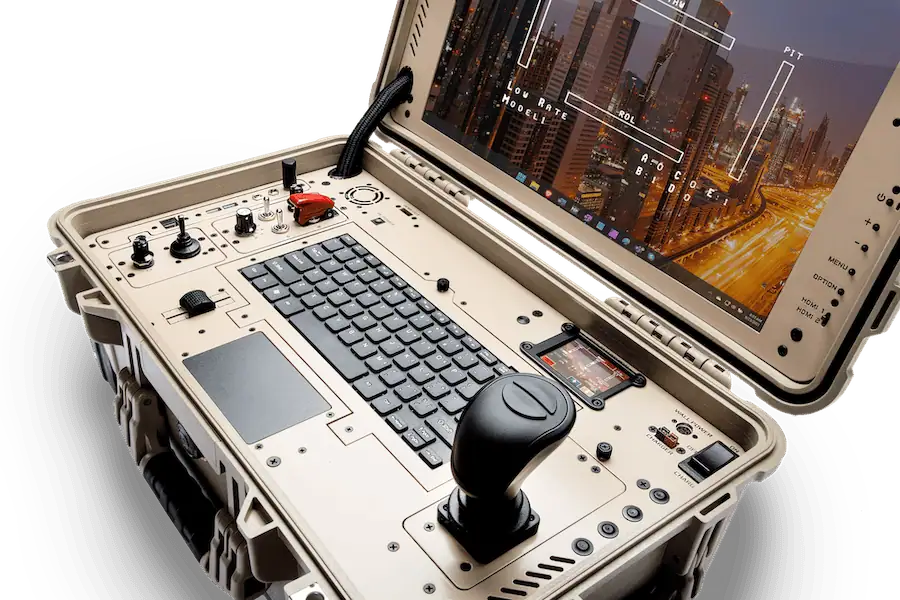

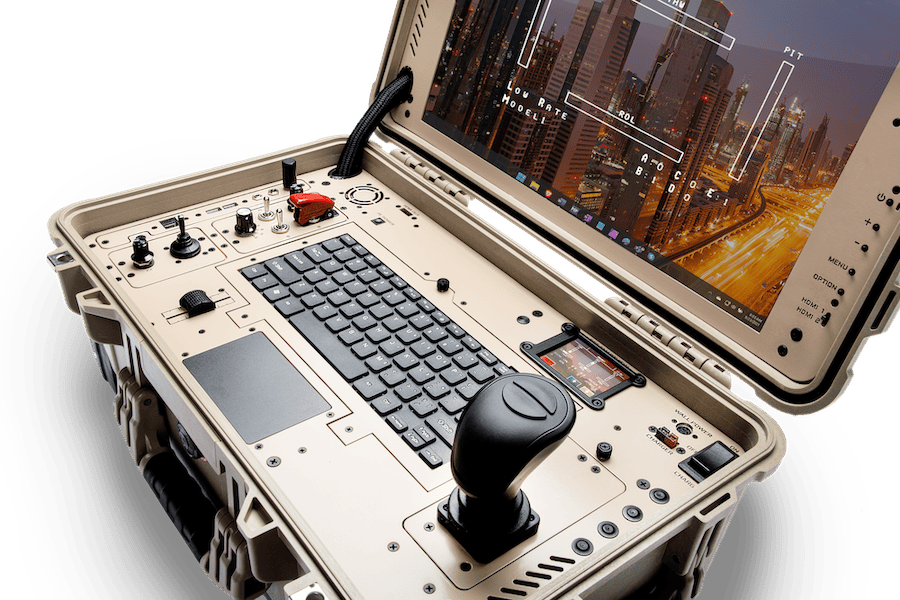

MIRA X is an advanced, portable unmanned GCS in a rugged Pelican case, featuring a full-color, sunlight viewable 19″ HD touchscreen for maximum viewing efficiency, a full-size integrated keyboard and multi-gesture trackpad, and an integrated head-up display. Based around an OnLogic HX500 industrial-grade embedded PC, the powerful GCS includes a choice of Intel i5, i7 and i9 processors with upgraded Embedded PC options available upon request.
The switch array allows users to fully customize I/O functions and physical switching to exact requirements. The radio bay is optimized for internal space, and is compatible with a wide range of radio modules, digital IP modems, video receivers and third-party accessories.

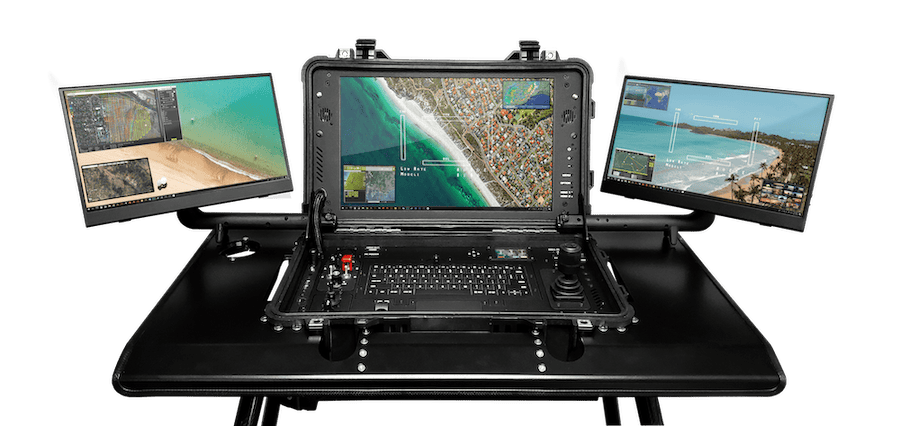

The MIRA X portable unmanned GCS is also available with optional accessories such as a Rucpac™ Backpack attachment, Dual 15.6” Panoramic Displays, and a portable Field Stand providing true portability and functionality.
Base System Specifications:| Channels | 12 Channel Functionality |
| Display | Single LG Display 19″ HD Wide 1440×900 – 1200NITS (Touchscreen option available) |
| Battery | 4S Li-Ion 6.6Ah (parallel ports for 13.2Ah or more) |
| Flight Joystick | APEM 55 Hall Effect 3-Axis w/ 2 Top Button |
| Aux Joystick | 2-Axis Payload & Gimbal Controls w/ Dial |
| Throttle | Machined Precision Slider w/ Detent |
| Wireless | Intel 8260 M.2 Wi-Fi AC, Bluetooth 4.0, vPro |
| Case | Pelican 1510 (22”x13.81”x9” LxWxD, 28 lbs) |
| Processor | RAM | HD | OS | GPU | |
| Intel Comet Lake | Core i5 | 8GB | 512GB | Win 10 | Intel UHD Graphics 630 |
| Intel Comet Lake | Core i7 | 16GB | 1TB | Win 10 | Intel UHD Graphics 630 |
| Intel Comet Lake | Core i9 | 32GB | 2TB | Win 10 | Intel UHD Graphics 630 |
| Intel Alder Lake | Core i7-1270PE | 32GB | 2TB | Win 10 / 11 | Intel Iris Xe |
| Intel Core | Ultra 9 185H | 65GB | 4TB | Win 10 / 11 | NVIDIA GeForce RTX 4070 |
