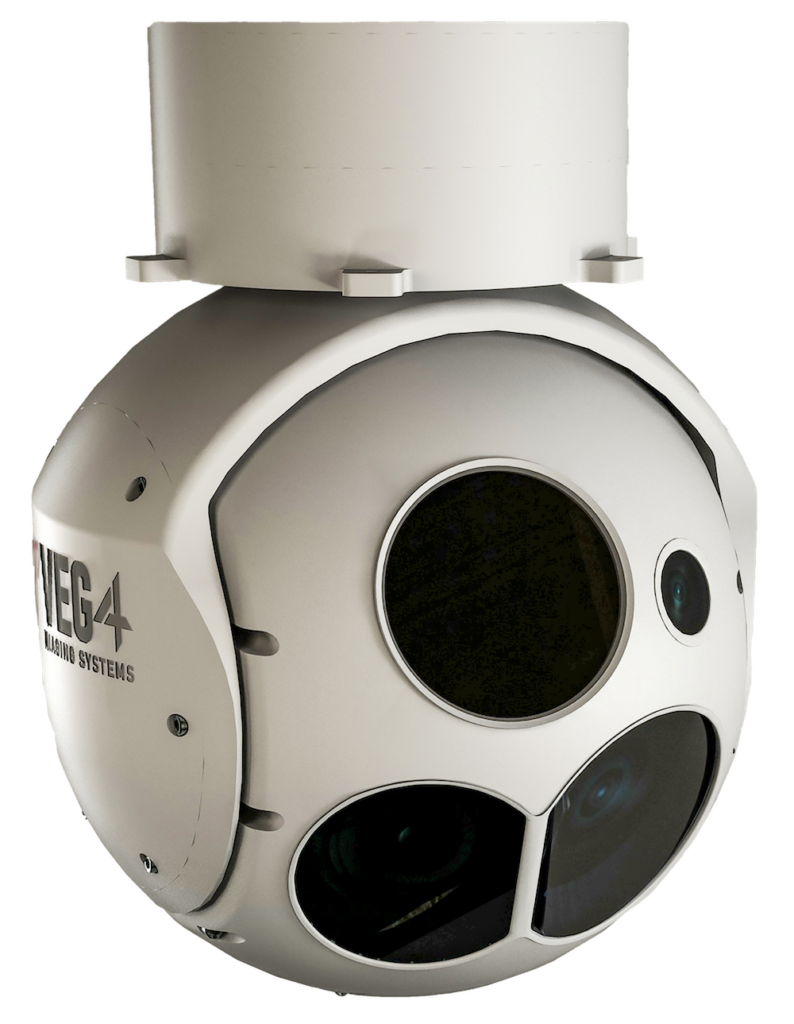

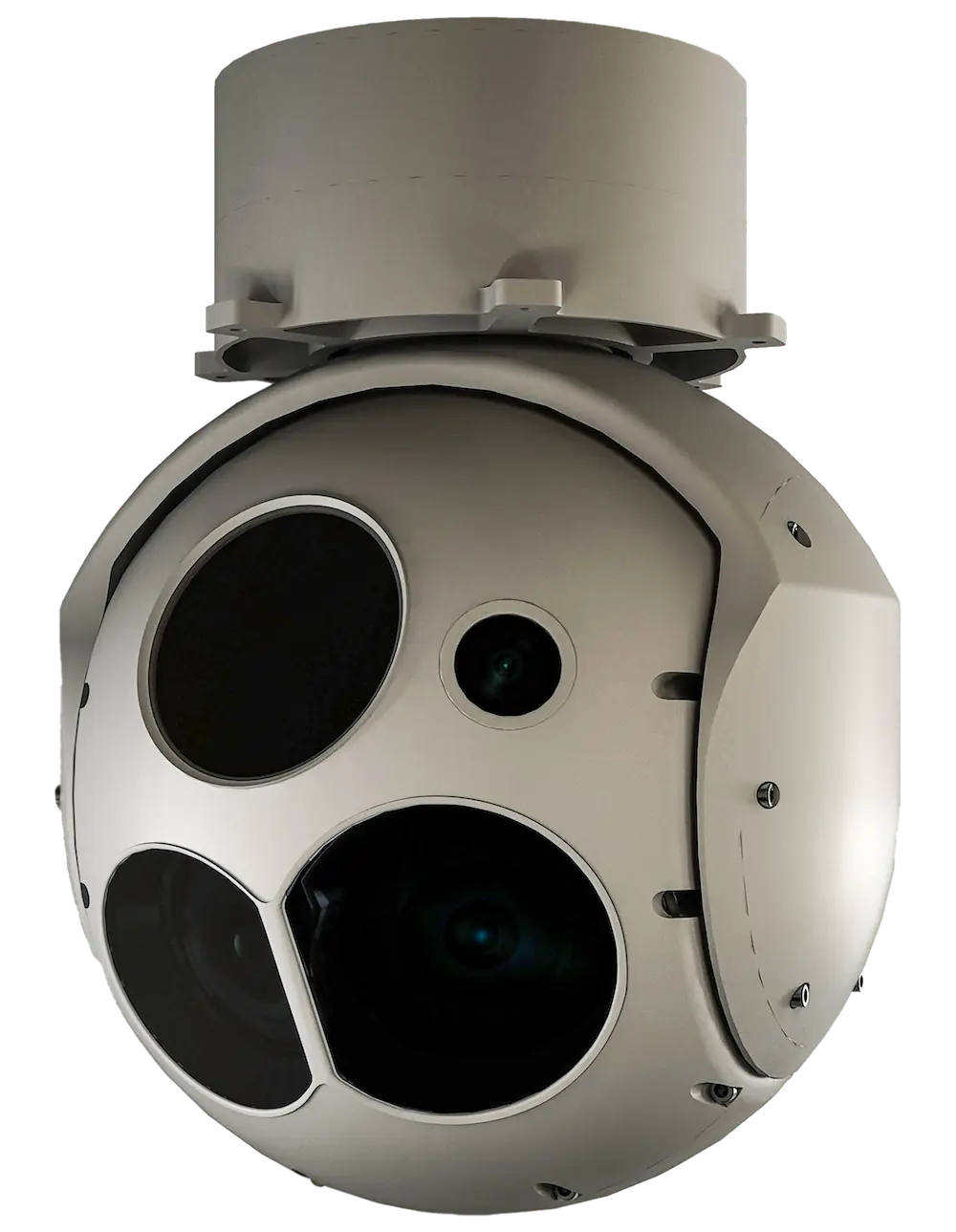

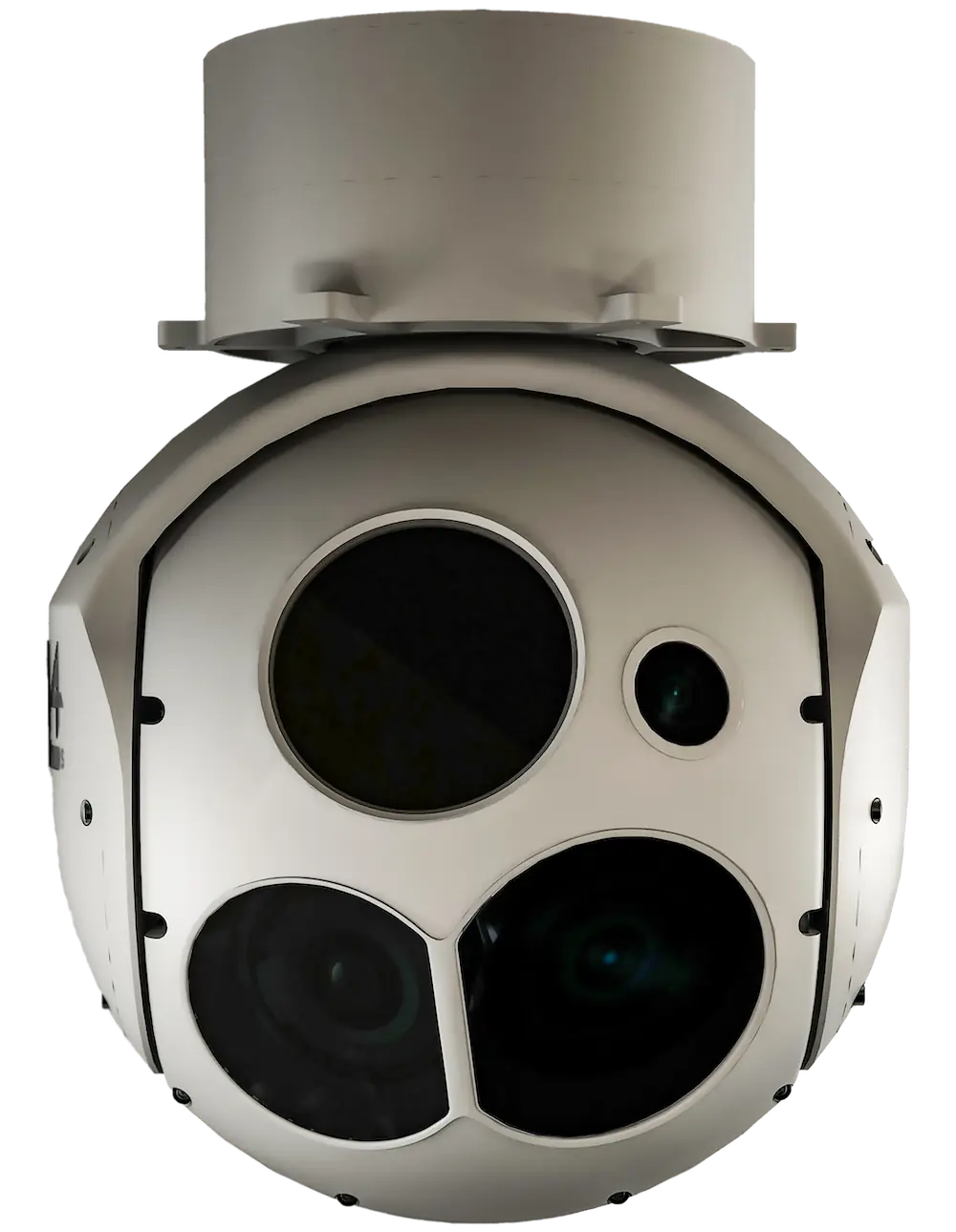

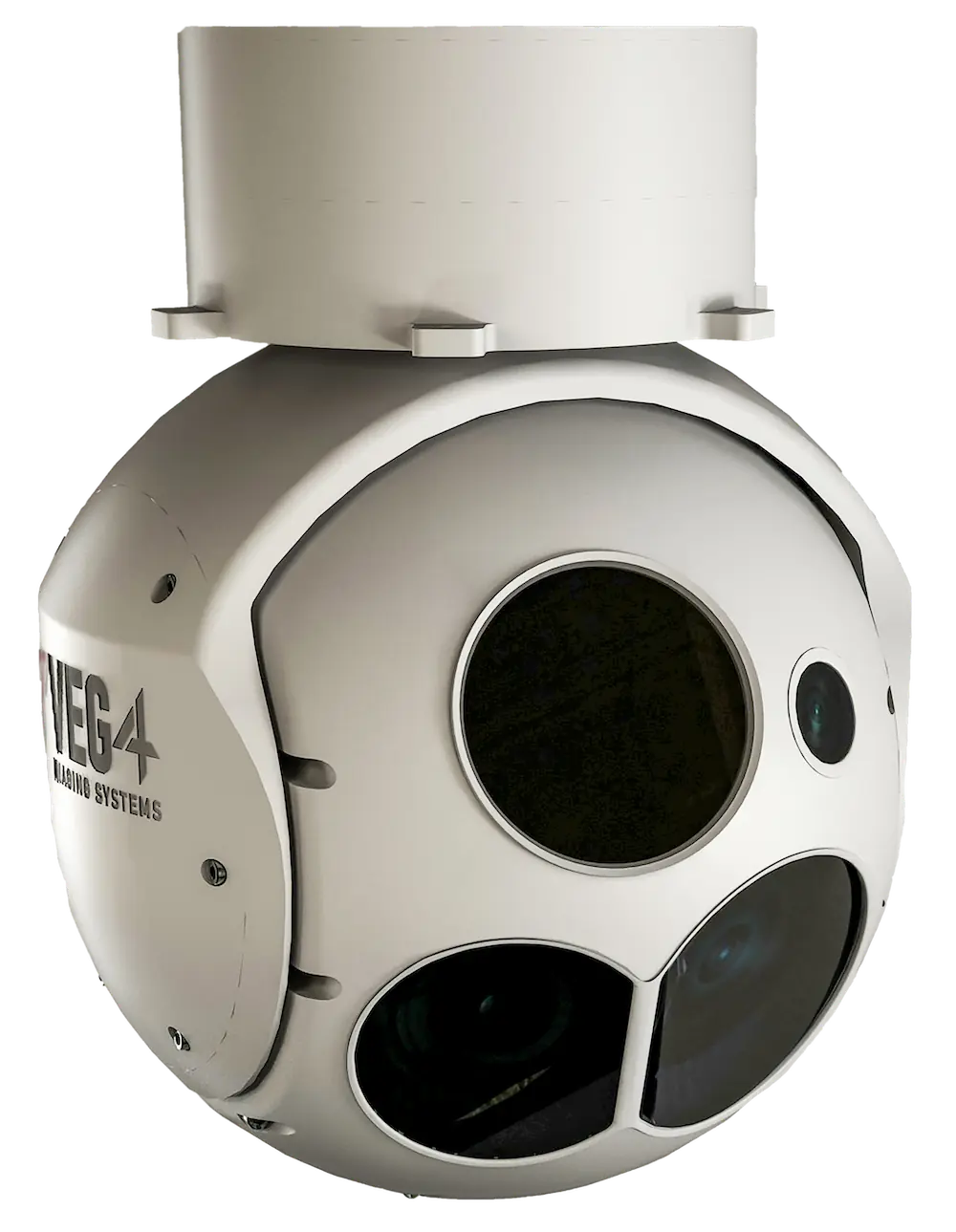

SPECTRUM 5500 Gimbal ISR System

Spectrum 5500 is a gimbal ISR system designed for the most demanding applications where size and capabilities matter. With enhanced thermal imaging by MWIR (MCT) sensor, Spectrum 5500 provides exceptional target detection capabilities with on-board video processing features.

Key Features:

  • MWIR Camera with 14x Optical Zoom: Enhanced thermal imaging capabilities for detailed reconnaissance.
  • Full HD EO Camera with 45x Optical Zoom: Experience unmatched zooming capabilities.
  • 8 km Laser Rangefinder: Accurately measure long distances.
  • Optional Laser Designator (Up to 60 mJ): Customized for specialized combat missions with a laser designator.
  • On-board video processor: Includes SPECTRE5165 for high-performance video processing.

2 axis, 2 Frame Dynamic Performance:

Weight 6.5 kg (14.33 lb.)
IP Level IP66
EO Resolution 1920 x 1080 pixels
EO Zoom 45x (optical) + 12x (Digital)
IR Camera MWIR (MCT)
IR Resolution 640 x 512 pixels
IR Zoom 14x Optical
Range Finder 10-8000 meters
Laser Designator (optional) >6000 m / >60 mJ
