Gen-4/5 OpenVPX Series

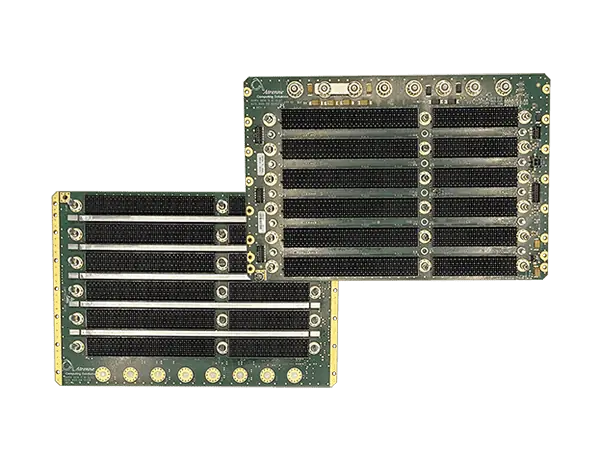

Atrenne's Gen-4/5 OpenVPX Series are the industry's highest-performing backplanes, designed to meet the demanding digital signal processing and data throughput requirements of modern UAV applications such as C4ISR, SIGINT, ELINT, IMINT, ESM and WAMI.

The 25 Gbaud backplanes are compatible with 100 GbE (100GBASE-KR4) and PCI Express Gen-4, and are designed to MEGTRON 6 PCB standards. 3U and 6U options are available with a variety of slot counts.

Other features and benefits include:

  • High-performance VITA 46 Multigig RT-3 connector (other connectors available upon request)
  • Multiple backplane profiles available, including passthrough
  • VITA 65 OpenVPX compliant
  • VITA 46/VITA 48 VPX REDI-compliant
  • Optional battery backup input, jumperable to +3.3V
  • Durability: mating and unmating for 200 cycles
  • Temperature ranges: Operating -40 to +85°C, Storage -55 to +100°C
