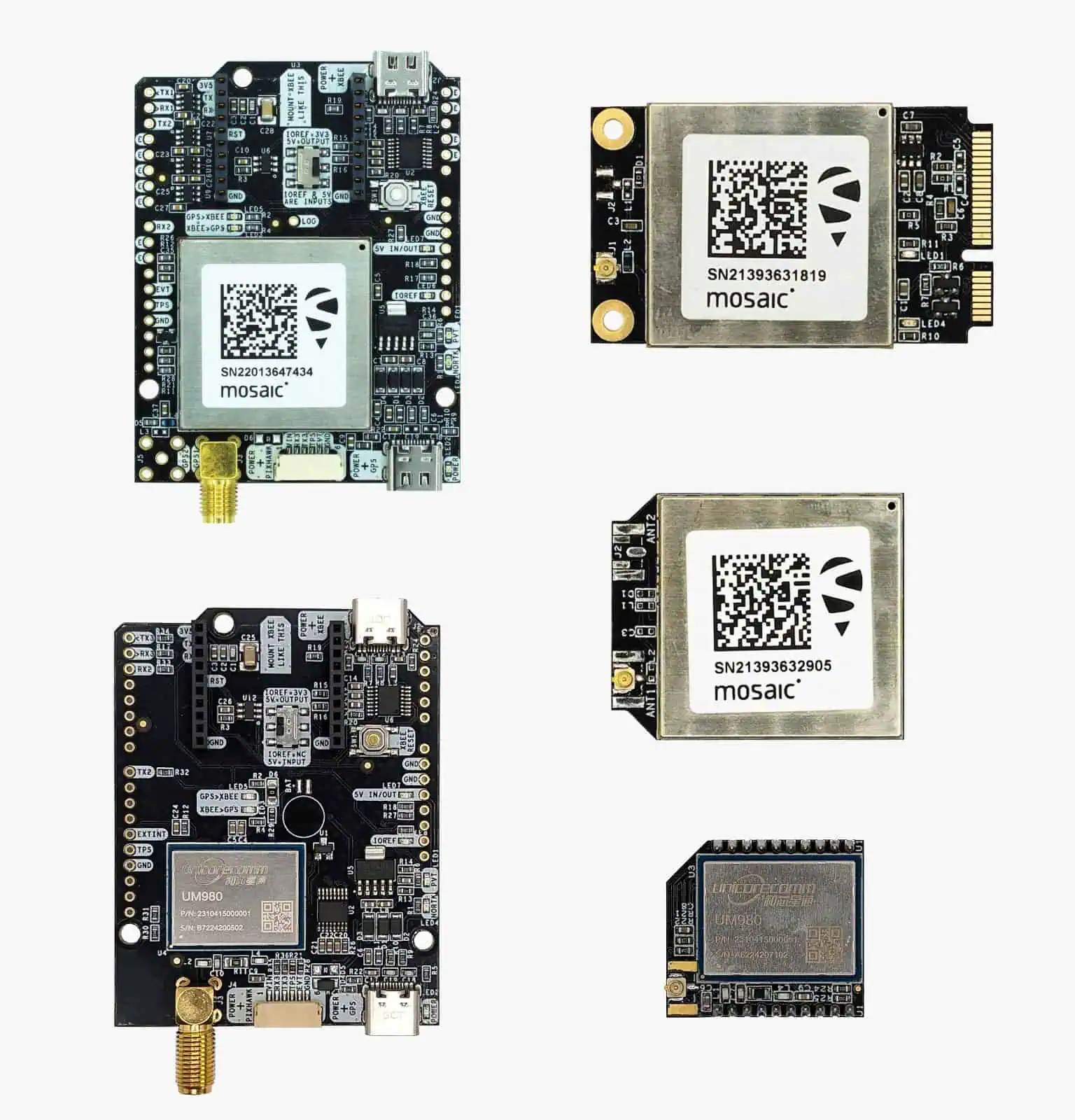

simpleRTK3B series RTK GNSS Receivers
The simpleRTK3B Series of OEM GNSS RTK receivers, based on Septentrio Mosaic modules, provides down to millimeter-level accuracy with multi-constellation and multi-frequency tracking. The robust receivers feature advanced jamming, spoofing and interference monitoring and mitigation, and are ideal for both base station and high-speed rover applications.
The boards are compatible with Arduino, STM32 Nucleo, Raspberry Pi, and NVIDIA Jetson, and can also be used as an external GNSS RTK receiver for Pixhawk and Ardupilot-based drone flight controllers.

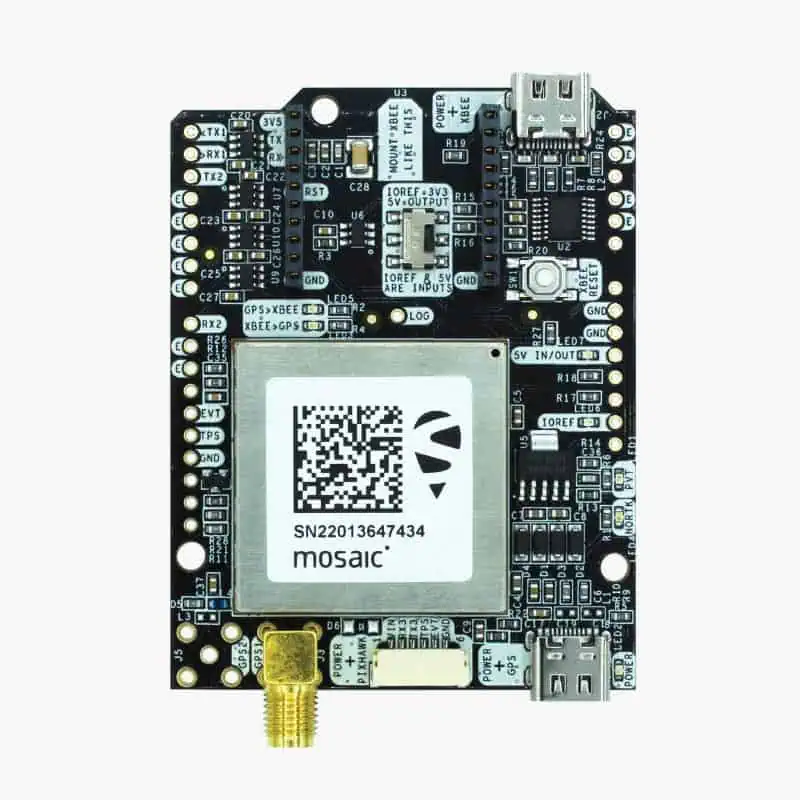

 simpleRTK3B Pro |
 simpleRTK3B Heading |

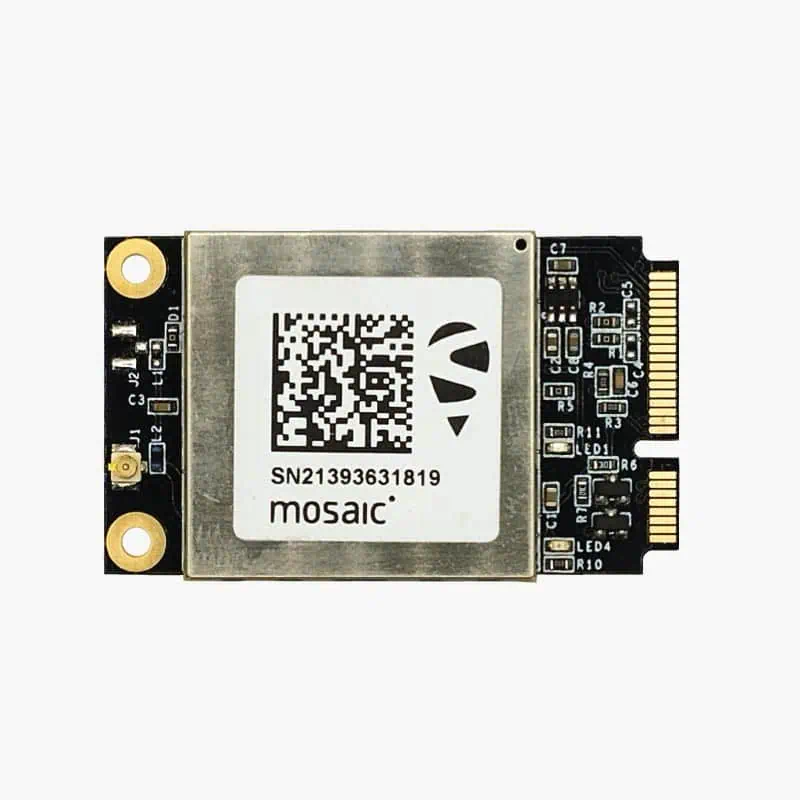

 simpleRTK3B mPCIe |

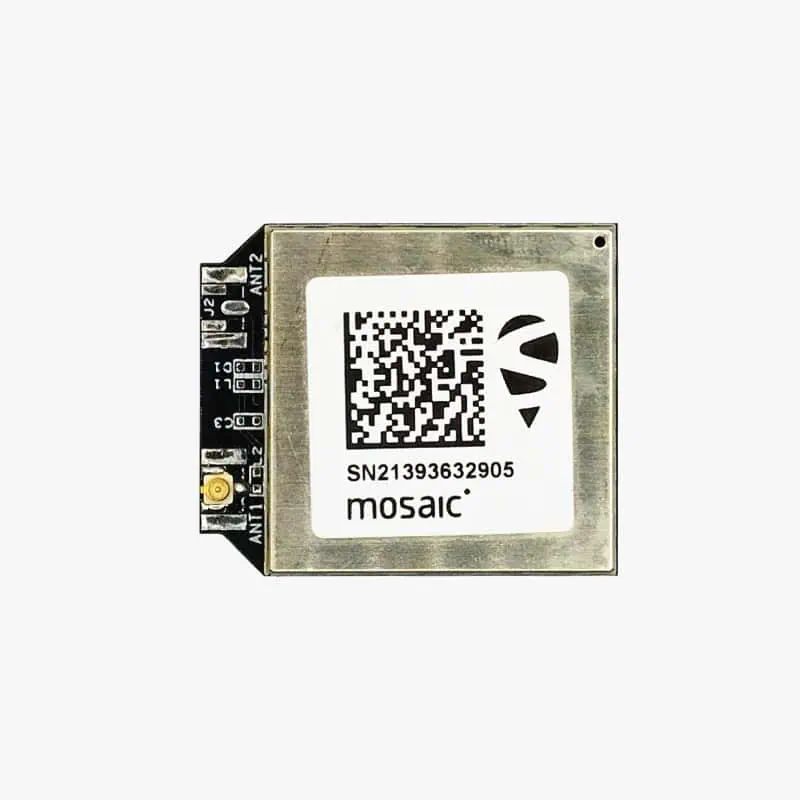

 simpleRTK3B Micro |
|
| Dimensions: | 69 x 53 mm | |||
| Weight: | 24g | 28g | ||
| Channels: | 448 | 448 | ||
| Signals: | GPS: L1C/A, L1C, L1PY, L2C, L2P, L5 GLONASS: L1CA, L2CA, L2P, L3 CDMA Beidou: B1I, B1C, B2a, B2I Galileo: E1, E5a, E5b, E5 AltBoc, E6 QZSS: L1C/A, L1C, L2C, L5, L6 Navic: L5 SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1, L5) |
GPS: L1, L2 Galileo: E1, E5b GLONASS: L1, L2 Beidou: B1, B2 QZSS: L1, L2 SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1) |
Mosaic-H variant: GPS: L1 L2 GLONASS: L1 L2 Galileo: E1 E5b BeiDou: B1 B2 QZSS: L1 L2 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1) Mosaic-X5 variant: GPS: L1C/A L1PY L2C L2P L5 GLONASS: L1CA L2CA L2P L3 CDMA Galileo: E1 E5a E5b E5 AltBloc E6 BeiDou: B1I B1C B2a B2I B3 QZSS: L1C/A L2C L5 Navic: L5 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5) |
|
| Accuracy: | <7mm with a base station up to 35km <7mm with NTRIP up to 35km <4cm with SSR corrections <1.3m in standalone mode <70cm standalone with SBAS coverage |
<1cm with a base station up to 35km <1cm with NTRIP up to 35km <1.2m in standalone mode <0.6m standalone with SBAS coverage |
||
| Data Rates: | 100Hz RTK | 20Hz RTK & attitude 50 Hz attitude |
Mosaic-H variant: Default: 1Hz Measurements only: up to 100Hz Standalone, SBAS, DGPS + attitude: up to 50Hz RTK+attitude: up to 20Hz Mosaic-X5 variant: Default: 1Hz Maximum performance: up to 100Hz |
|
