THPR1039 High Power Radio

Longer Range | Higher Data Rates | Lowest SWaP

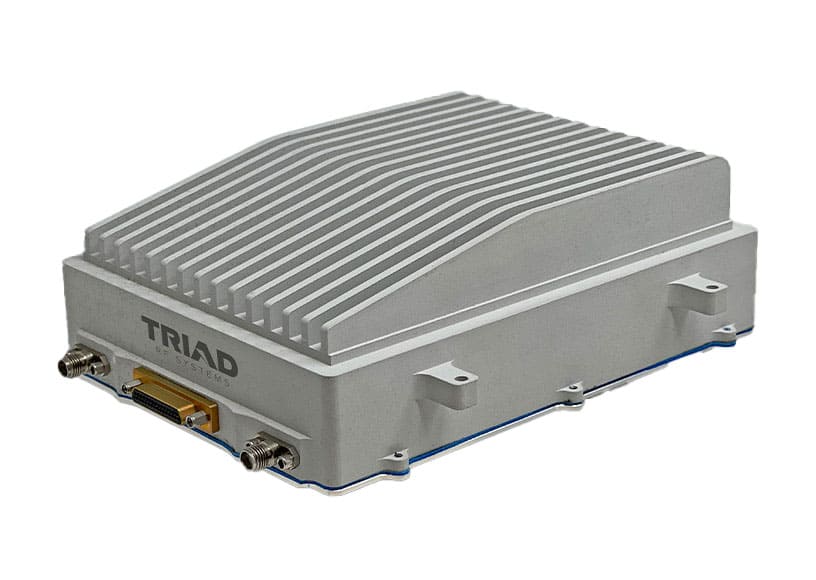

The THPR1039 High Power Radio uses a magnesium housing and contains a DTC SOL8SDR-C-132043 radio at its core, combining with our high-power RF subsystems in a low SWaP package. It integrates the necessary RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the stand-alone radio. Offering +9 to +28 VDC Input Voltage, this integrated radio system contains BDAs, RF filtering, and innovative SoC-based monitoring and controls, with link diagnostics.

FEATURES

  • Fully Integrated High-Power RF Sub-System & Radio
  • Extended Range/Data Rate over Stand-Alone Radio
  • Enhanced RF Link Control via USB
  • Wide Input Voltage, Single DC Supply
  • AES-128/AES-256 Encryption
  • Interference Avoidance System [IAS]

APPLICATIONS

  • Long Distance High Data Rate ISR Links
  • UAS, UGV, and USV Video/Data Links
  • Military MANET
  • Maritime High-Throughput LOS/NLOS Systems
  • Point-To-Point and Mesh Networking

SPECIFICATIONS

Dimensions (L x W x H) 6.09″ x 4.50″ x 1.26″
(154.69mm x 114.3mm x 32mm)
Weight 32oz (907.19g)
RF Connectors SMA-F
Operating Frequency 1350‐1500 MHz
Min Power output per Antenna 5 W
Operating Temperature -30 to +55 °C
Shock / Vibration Designed to MIL-STD-810 and Equivalents
Ingress Protection Rating IP66
