THPR1019-D03 High Power Radio
Longer Range | Higher Data Rates | Lowest SWaP

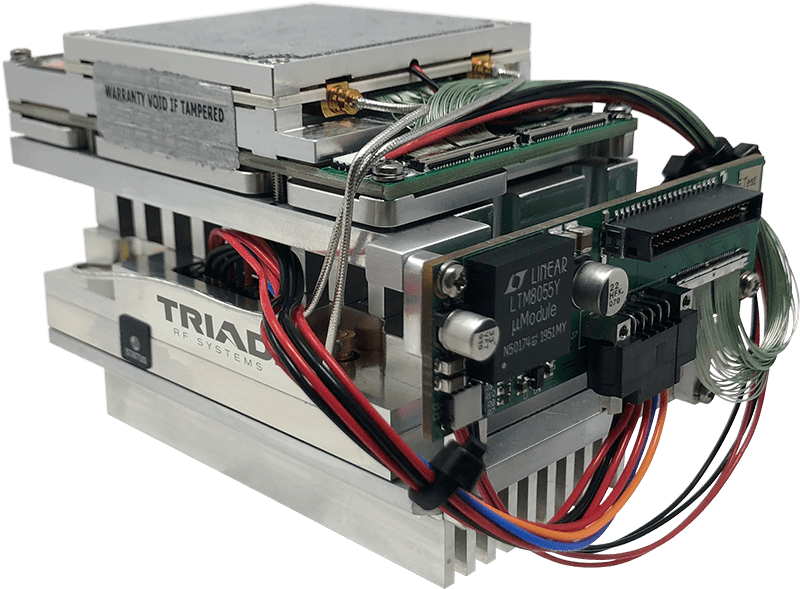

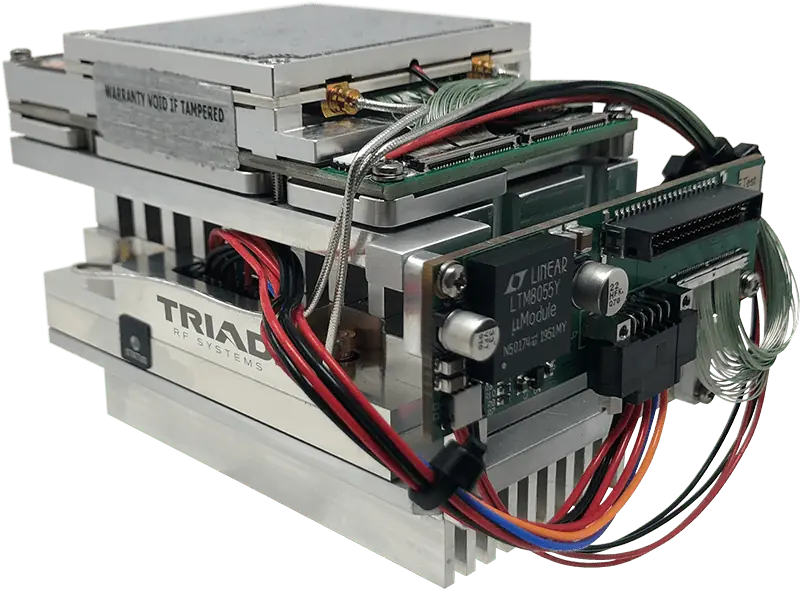

The THPR1019-D03 High Power Radio contains a Silvus Streamcaster SC4200-235-O OEM radio at its core and combines with our TTRM2005D in a low SWaP package. This “housing-less,” 2 channel, S-Band, amplified radio integrates the necessary RF amplification, control circuitry, and interfaces to achieve higher RF output power, greater throughput, and longer link distances than the standalone radio. Offering +12 to +28 VDC Input Voltage, this amplified radio system contains BDAs, and RF filtering, with link diagnostics.
FEATURES
- Fully Integrated High-Power RF Sub-System & Radio
- Extended Range/Data Rate over Stand-Alone Radio
- Wide Input Voltage, Single DC Supply
APPLICATIONS
- Long Distance High Data Rate ISR Links
- UAS, UGV, and USV Video/Data Links
- Military MANET
- Maritime High-Throughput LOS/NLOS Systems
- Point-To-Point and Mesh Networking
SPECIFICATIONS
| Dimensions (L x W x H) | 4.28″ x 2.96″ x 2.88″ (108.712mm x 75.184mm x 73.152mm) |
| Weight | 22.4oz (635.0293 g) |
| RF Connectors | SMP-F |
| Operating Frequency | 2200 – 2500 MHz |
| Power output per Channel | Low Data Rate: 16 W High Data Rate: 4 W |
| Operating Temperature | -20 to +65 °C |
| Shock / Vibration | Designed to MIL-STD-810 and Equivalents |
